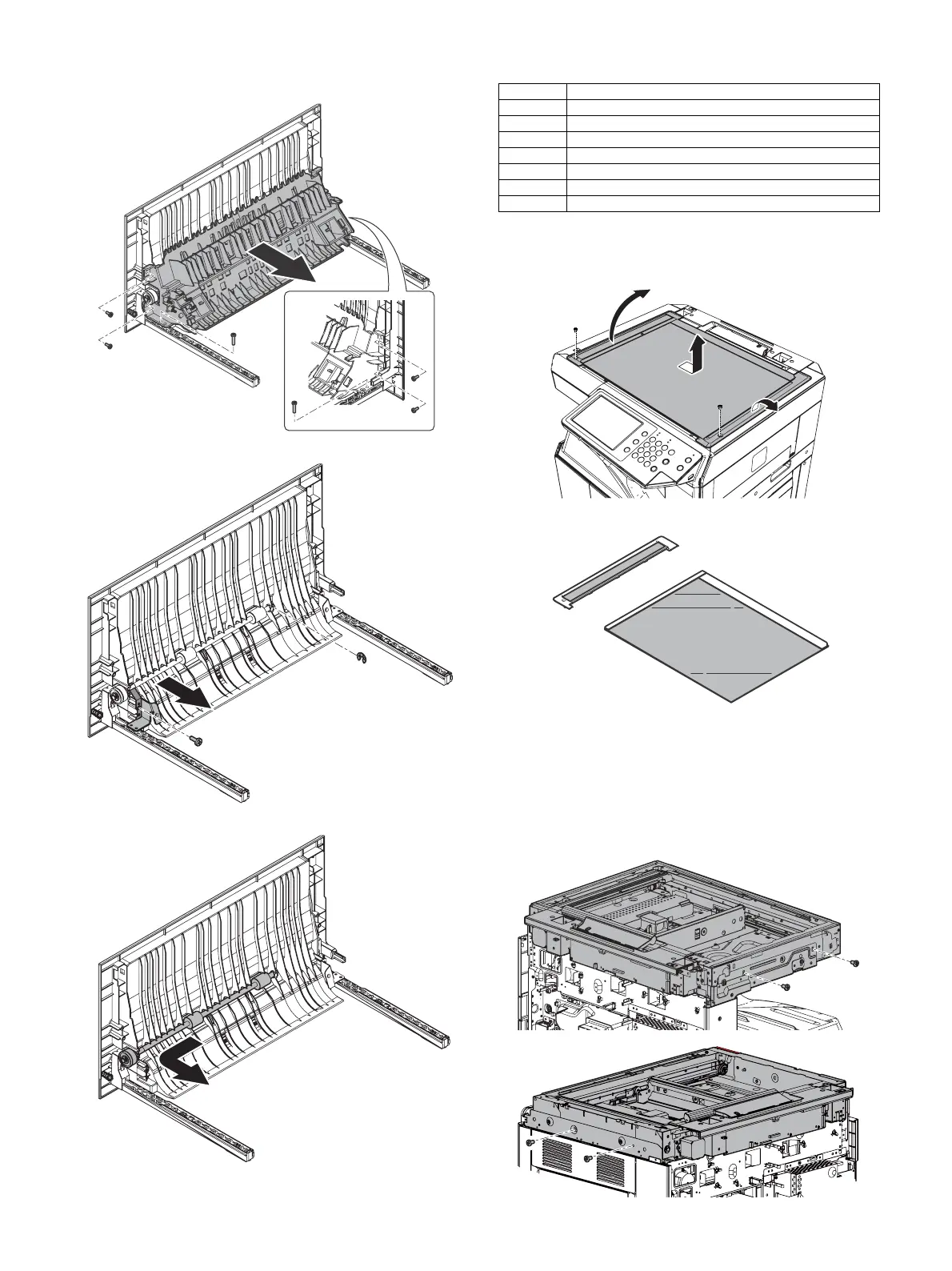

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 3
(4) Duplex transport part
Remove the rail inner unit.
Remove the side door reinforcing plate.
Remove the side door auxiliary roller.
B. Scanner section
(1) Table glass, SPF glass
1) Remove the glass holder. and the table glass. Remove the
table glass, and the SPF glass.
2) Clean the both surfaces of the table glass, and the SPF glass.
(2) Scanner unit
1) Remove the RSPF unit/ OC cover if they are fixed to the
machine.
2) Remove the operation panel unit.
3) Remove the table glass and the SPF glass.
4) Remove the right cover, the left cover and the rear cabinet.
5) Remove the scanner unit.
No. Name
1 Table glass, SPF glass
2 Scanner unit
3 Drive belt, Drive wire
4 Rails
5 Mirror, Reflector, Scanner lamp
6 Lens, CCD
7 LED PWB, LED driver PWB
