MX-M316N OPERATIONAL DESCRIPTIONS 11 – 23
13. Transfer section

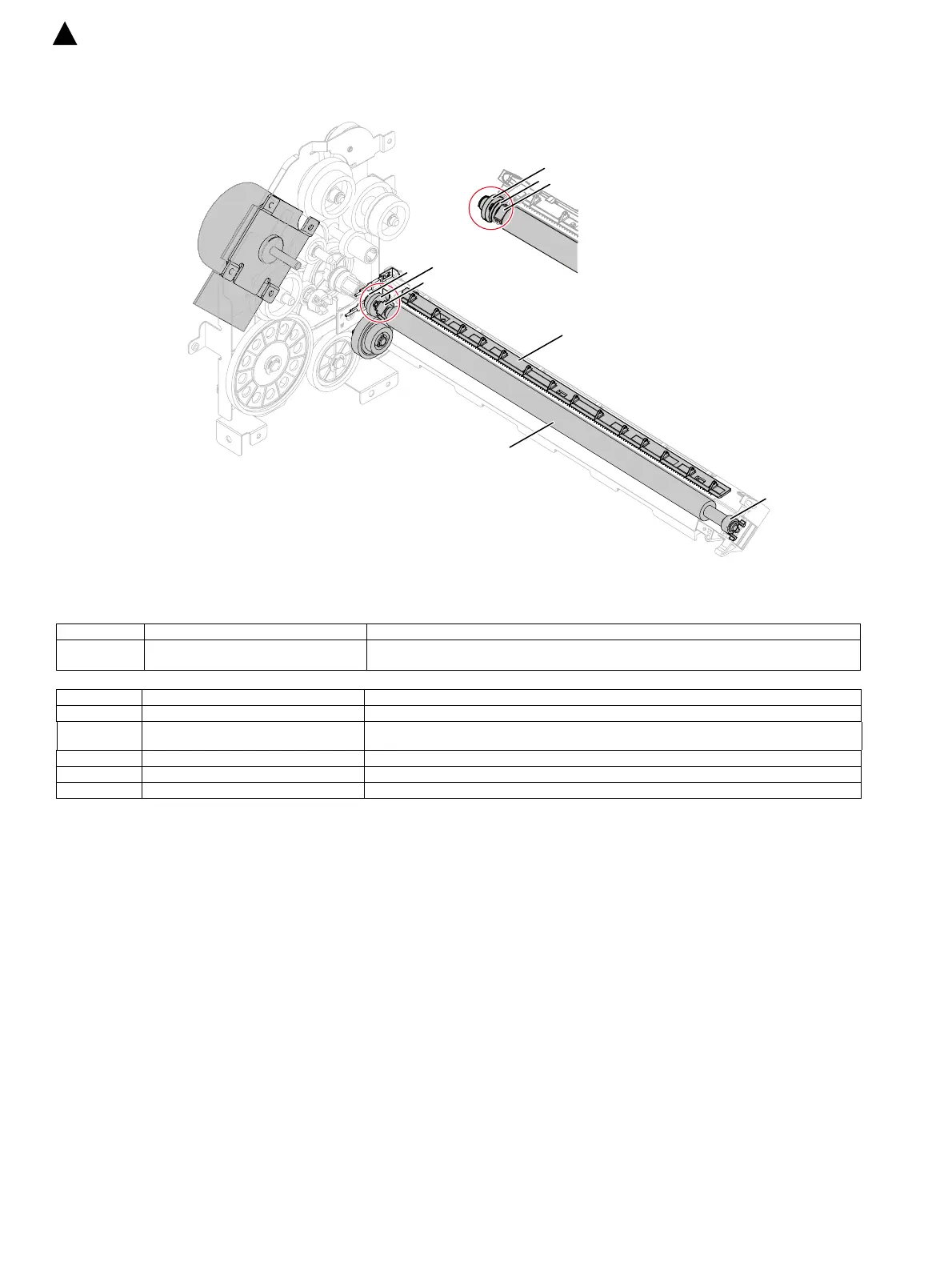

A. Mechanism relation diagram
MM
1
2
3
3
4
5
4
5
3
35cpm
26/31cpm
Signal name Name Function and operation
MM Main motor
Drives the most of the driving parts except the duplex section, the toner section and the scanner
sections.
No. Name Function and operation
1 Transfer roller Transfers toner images from the OPC drum surface to paper.
2 Discharge plate
Apply the negative voltage to the paper which the positive voltage is applied to and discharge the
paper.
3 TR bearing (F/R) Transfer roller bearing
4 Transfer roller collar Transfer roller collar
5 TR gear Transfer roller drive gear
1
