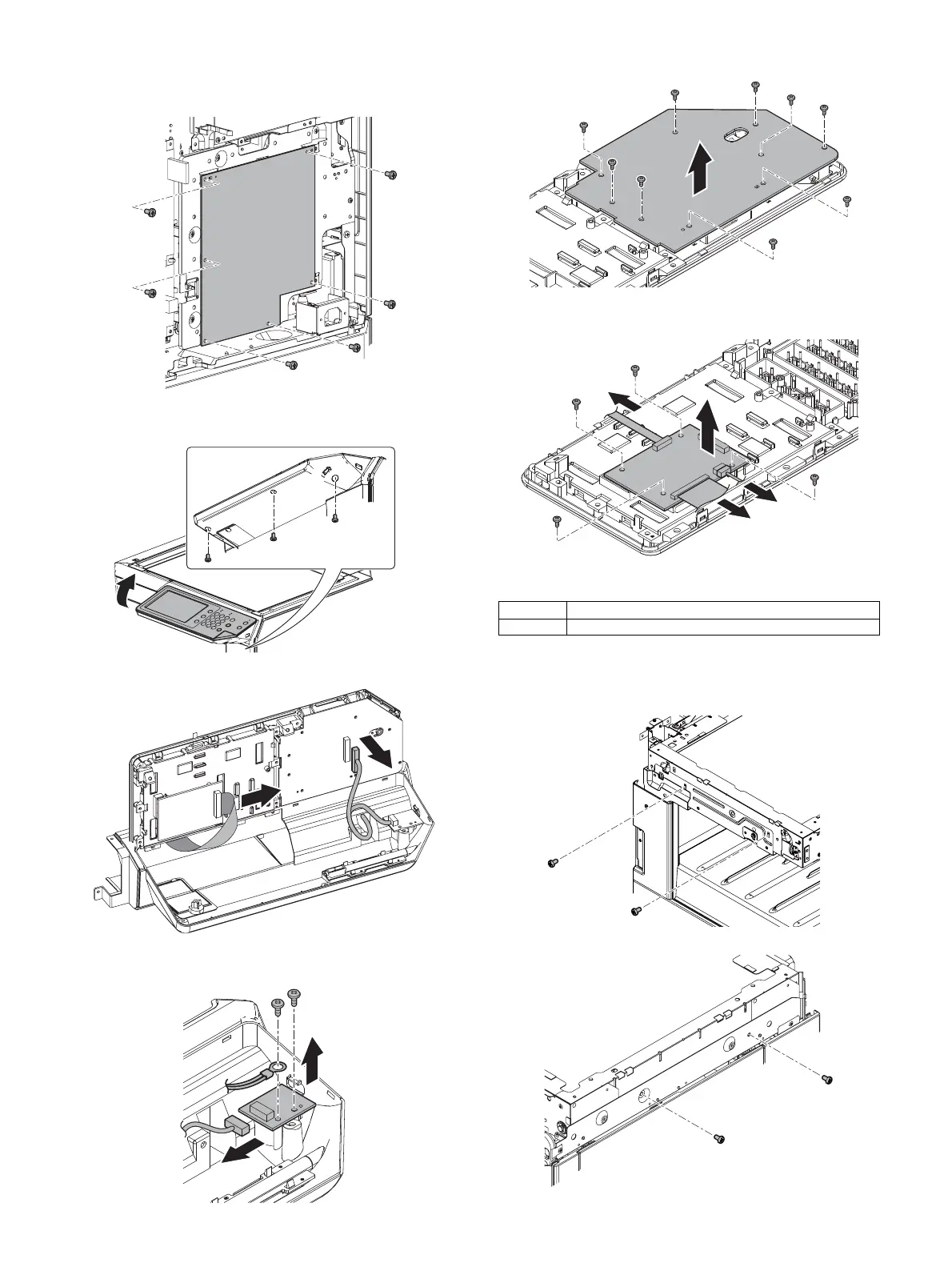

(2) PCU PWB
1) Remove all harnesses and screws of the PCU PWB.
Then, remove the PCU PWB.
(3) Operation panel PWB
1) Remove the screws fixing the operation panel unit.
2) Remove the DFFC and the harness.
3) Remove the earth and the harness , and remove the USB I/F
PWB.
4) Remove the screws, and remove the Key PWB.
5) Remove the FFC, the harnesses and the screws. Then,
remove the LVDS PWB.
F. Optical frame unit section
(1) Optical frame unit
1) Remove the right cover and the left cover.
2) Remove the screws at the left side of the optical frame.
3) Remove the screws at the right side of the optical frame.
No. Contents
1 Optical frame unit
