MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 11
1

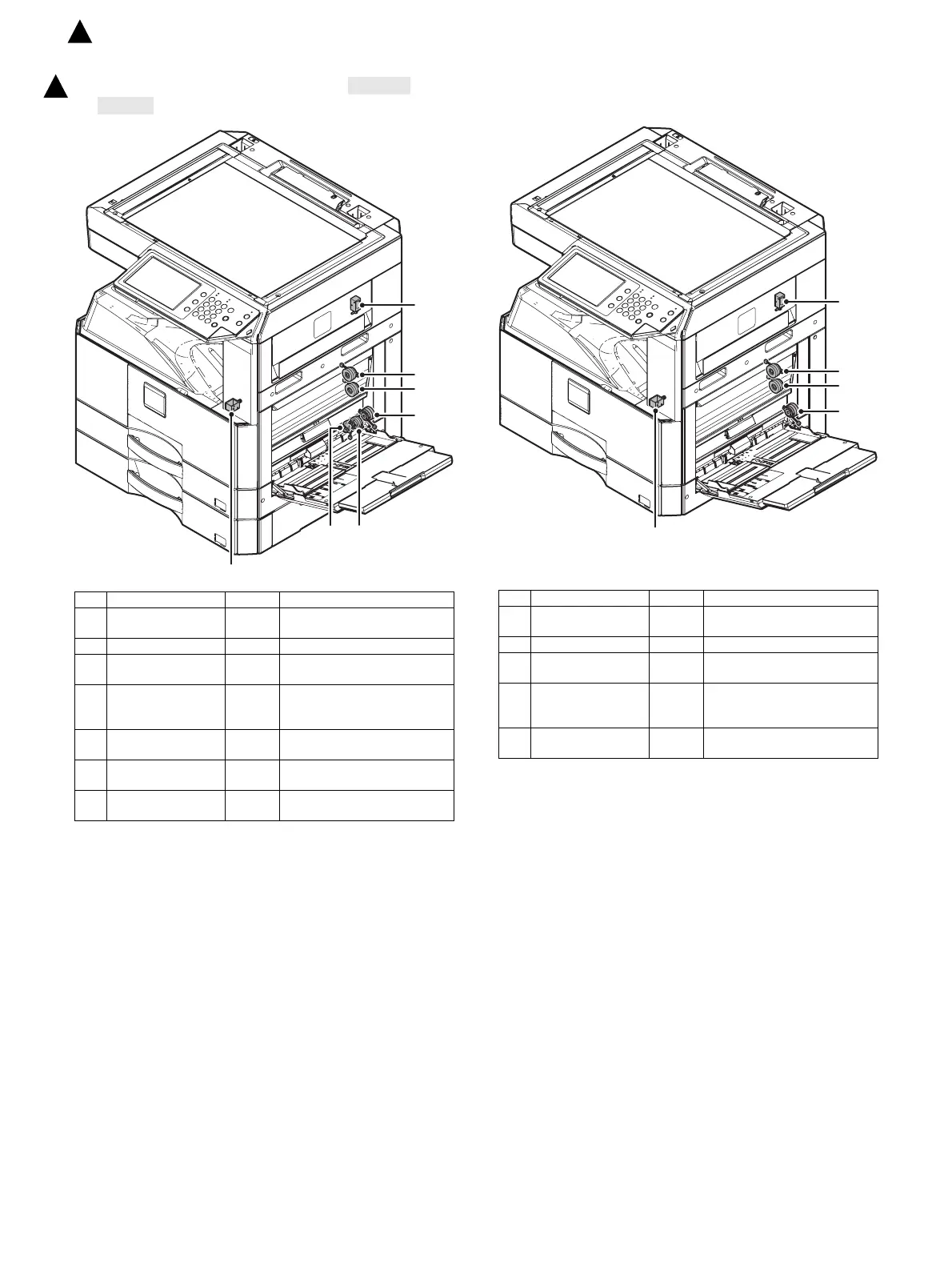

9. Solenoid/Clutch
A. MX-M316N/M266N/M315N/M315U/M356N/
M356U
B. MX-M265N/M265U
No. Name Code Function and operation
1 1st tray paper feed
clutch
C1PUC Paper feed roller drive
2 PS clutch RRC Main unit paper feed
3 Manual paper feed
clutch
MPFC Manual paper feed clutch
4 Paper exit gate
switching solenoid
(Option)
POGS1 Paper exit gate switcher
5 Separation pawl
solenoid
PSPS Separation pawl operation
solenoid
6 2nd tray paper feed
clutch
C2PUC Paper feed roller drive
7 Paper feed transfer
clutch
PTRC2 Paper feed transfer clutch
3
2
1
5
4
7
6
No. Name Code Function and operation
1 1st tray paper feed
clutch
C1PUC Paper feed roller drive
2 PS clutch RRC Main unit paper feed
3 Manual paper feed
clutch
MPFC Manual paper feed clutch
4 Paper exit gate
switching solenoid
(Option)
POGS1 Paper exit gate switcher
5 Separation pawl
solenoid
PSPS Separation pawl operation
solenoid
3
2
1
5
4
1
: ‘15/Aug.
