MX-M316N OPERATIONAL DESCRIPTIONS 11 – 1
MX-M316N
Service Manual
[11] OPERATIONAL DESCRIPTIONS
1.Operation panel

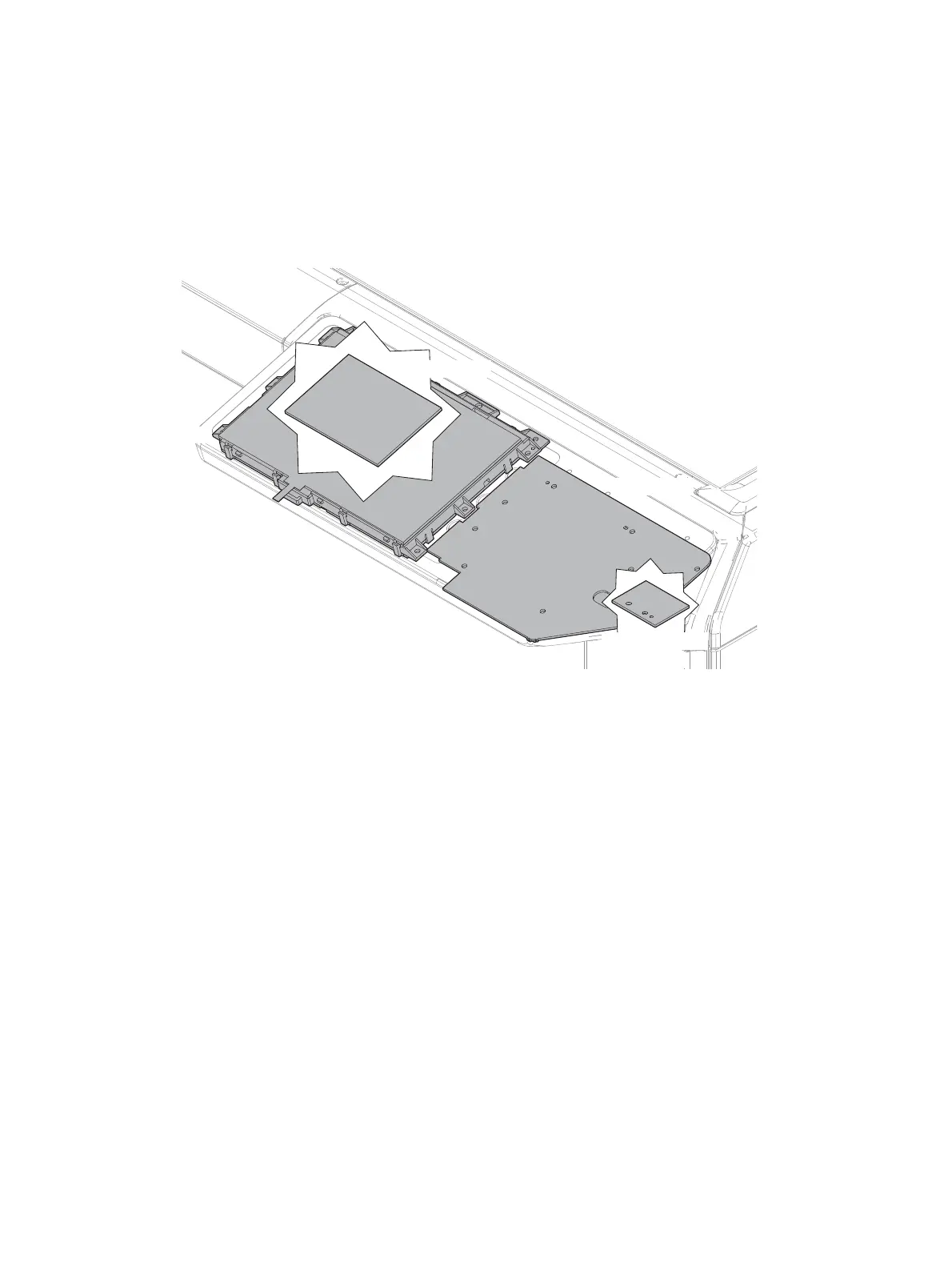

A.Mechanism relation diagram
B.Operational descriptions
The operation panel unit is composed of the LCD unit, the LVDS PWB,
the USB I/F PWB, and the KEY PWB.
It displays the machine operation. It is provided with the USB I/F which
is used for the firmware update, USB print, and Scan to USB.
In addition, the USB I/F line is provided inside the operation panel to
connect with the keyboard and the IC card reader.
LCD
LVDS PWB
KEY PWB
USB I/F PWB
