Sharp MX-M266N

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 23

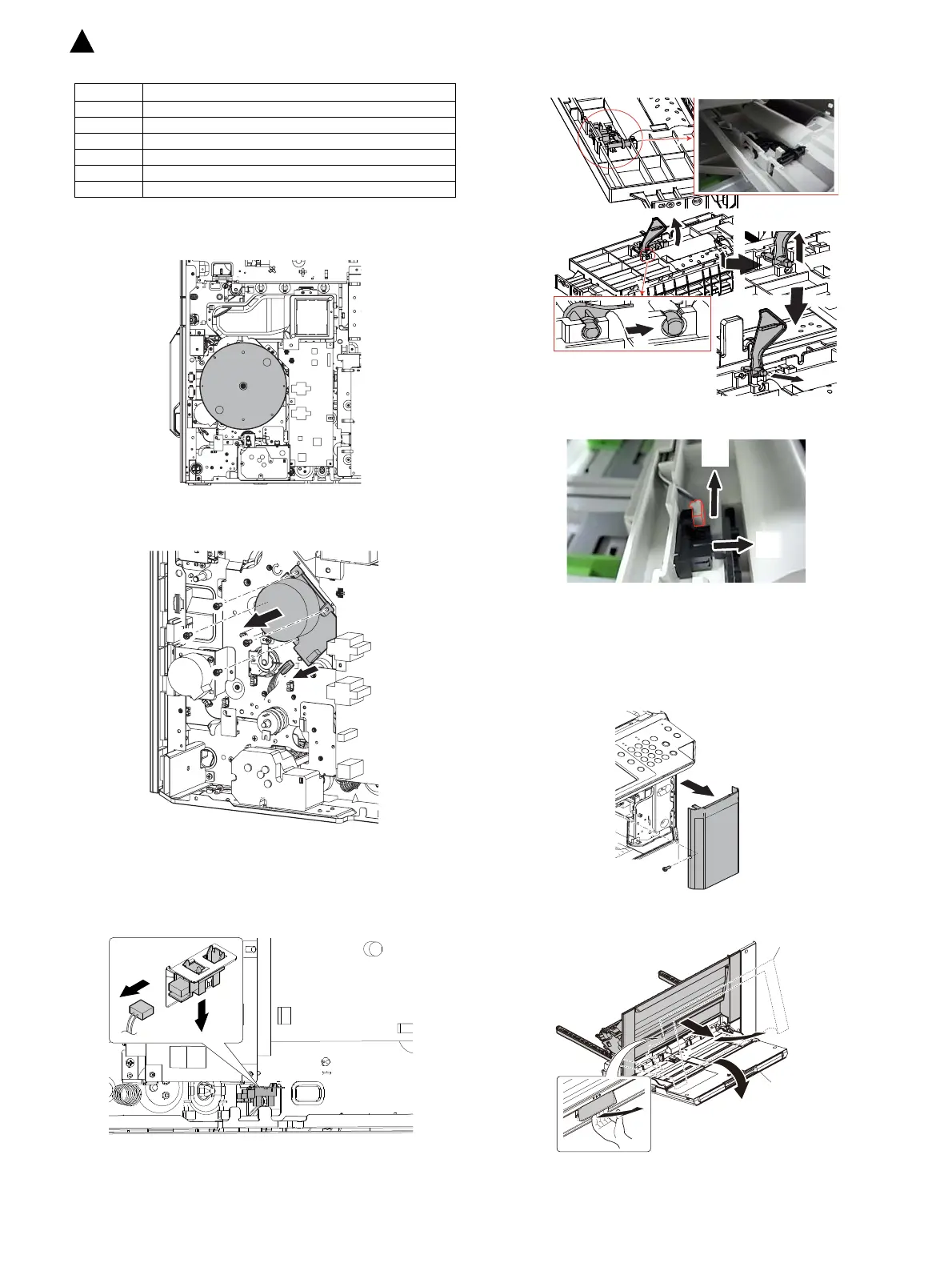

N. Others
(1) Main motor
1) Remove the flywheel.
2) Remove the harness of the main motor, and remove the main
motor.
(2) Tray open/close sensor
1) Remove the sensor cover. Then, remove the harness of the
tray open/close sensor, and remove the tray open/close sen-
sor.
(3) Paper empty sensor
1) Remove the Desk PE actuator.
2) Remove the paper empty sensor from the Paper feed frame.
(4) Paper exit fan
1) Remove the delivery tray right.
2) Open the manual paper tray, and remove the right door.
No. Contents
1 Main motor
2 Tray open/close sensor
3 Paper empty sensor
4 Paper exit fan / Ozone filter (Only North America)
5 DV cooling duct
6Lift up motor
(1)
(2)
1)
2)
3)
1)
2)
(1)
(2)
(3)
1
: ‘15/Aug.
