MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 22
M. Process section

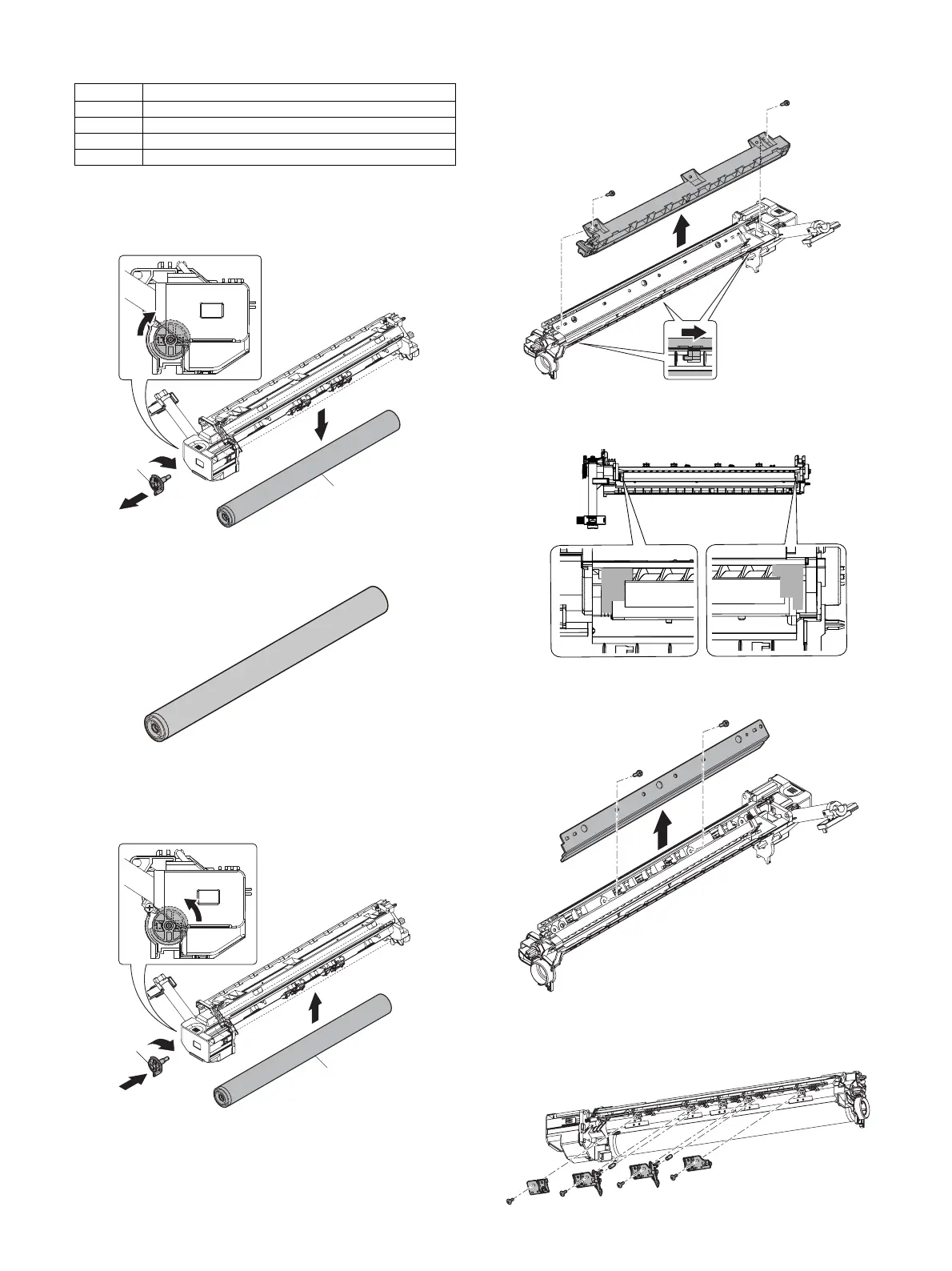

(1) Drum unit
1) Rotate and remove the drum fixing plate. Then, remove the
drum unit.
2) After removing the OPC drum, apply stearic acid powder
(UKOG-0312FCZZ) to the whole surface of the OPC drum.
3) After attaching the OPC drum to the OPC drum frame, use the
black protect sheet or copy paper, and manually rotate the
OPC drum two turns in the forward direction to remove stearic
acid powder applied to the OPC drum surface.
- Do not touch the OPC drum surface except for the both ends
(5mm) of the OPC drum.
- Any section of the OPC drum may be touched from above the
black protect sheet, but do not touch too strongly.
(2) Main charger holder unit
1) Remove the main charger holder unit.
(3) Cleaning blade
1) Remove the moquette F/R.
2) Remove the cleaning blade.
(4) Separation pawl unit
1) Remove the separation pawl unit.
No. Contents
1 Drum unit
2 Main charger holder unit
3 Cleaning blade
4 Separation pawl unit
Ĭ
ĭ
Ĭ
ĭ
CAUTION:Ifitdisturbstheblademovement,replaceitandattach
newone.
