MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 14
1

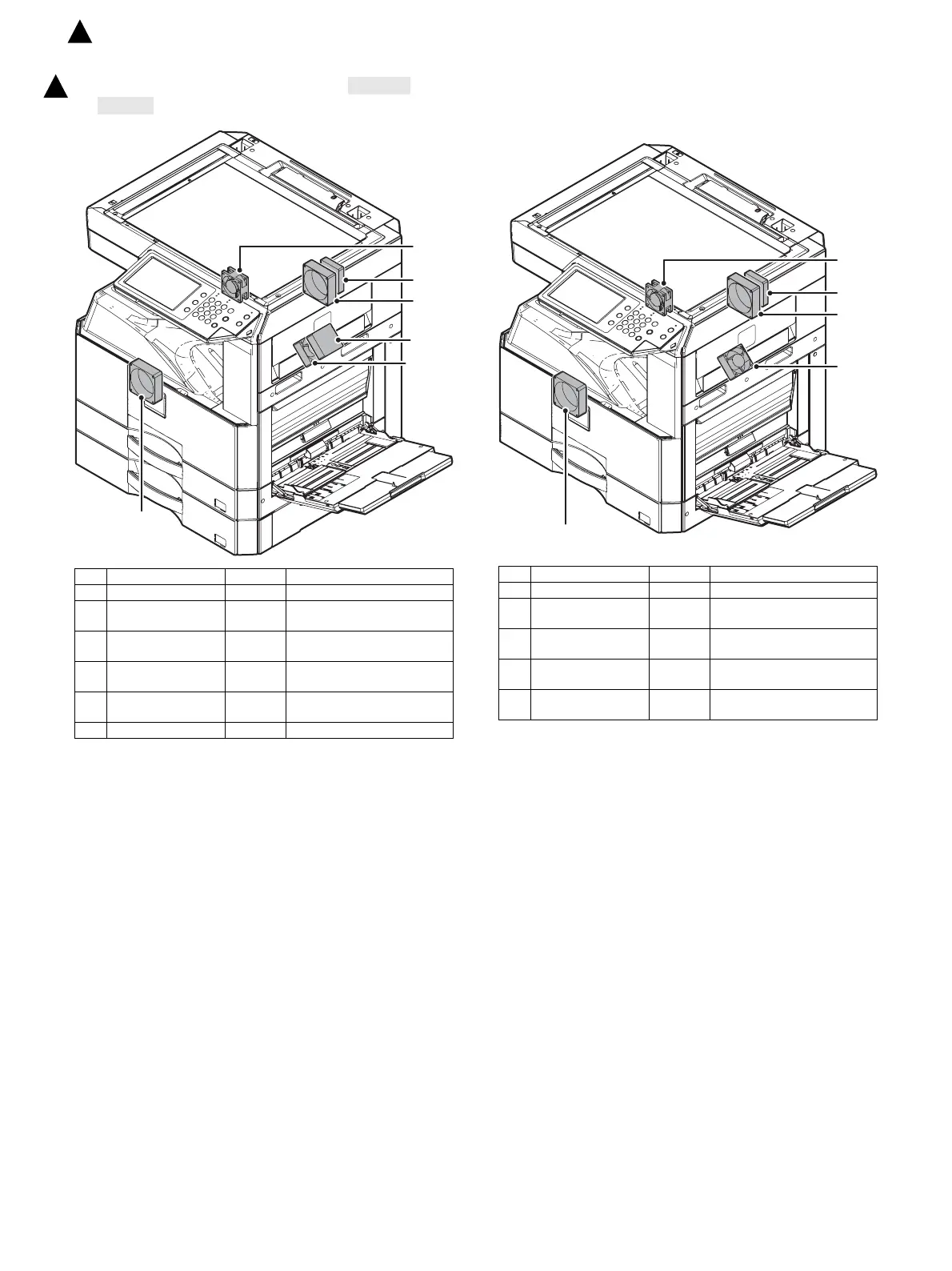

12. Fan/Filter
A. MX-M316N/M266N/M315N/M315U/M356N/
M356U
*1:Destination North America and Mexico only
B. MX-M265N/M265U
No. Name Code Function and operation
1 DV cooling duct LSUFM Cools the inside of the unit.
2 Power supply cooling
fan 1
PSFM1 Cools the inside of the unit.
3 Ozone exhaust fan OZFM Cools the inside of the machine
and discharges the ozone.
4 Paper exit cooling
fan
FUFM Cools the fusing section and
the paper exit section.
5 Ozone filter Absorbs ozone generated in
the image process section.
6*1 Ozone filter Take in an odor to exhaust.
1
5
2
3
4
6*
1
No. Name Code Function and operation
1 DV cooling duct LSUFM Cools the inside of the unit.
2 Power supply cooling
fan 1
PSFM1 Cools the inside of the unit.
3 Ozone exhaust fan OZFM Cools the inside of the machine
and discharges the ozone.
4 Paper exit cooling
fan
FUFM Cools the fusing section and
the paper exit section.
5 Ozone filter Absorbs ozone generated in
the image process section.
1
5
2
3
4
1
: ‘15/Aug.
