3. RSPF section (56opm)

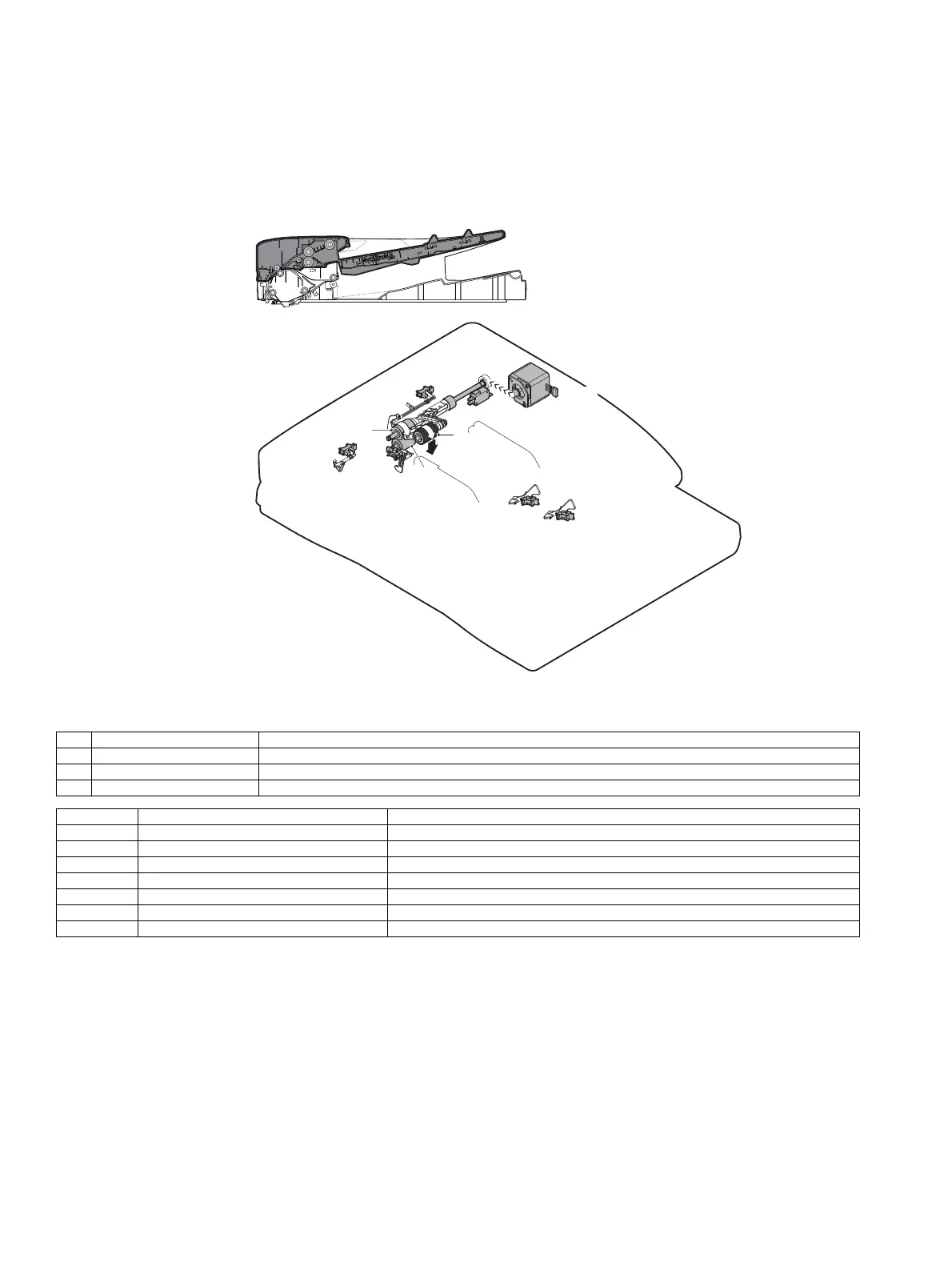

A.Mechanism relation diagram
(1)Paper feed section
No. Name Function/Operation
1 Pick-up roller Picks up a document and feeds it to the paper feed roller.
2 Paper feed roller Performs the paper feed operation of documents.
3 Separation roller Separate a document to prevent against double-feed.
Signal name Name Function/Operation
SCOV Upper cover open/close sensor Detects open/close of the RSPF upper cover
SPED Document sensor Detects document empty in the RSPF paper feed tray.
SPLS1 Paper size detector 1 Detects the document length in the RSPF paper feed tray
SPLS2 Paper size detector 2 Detects the document length in the RSPF paper feed tray
SPM RSPF paper feed motor Feeds a document
SPPD1 RSPF paper pass sensor 1 Detects paper feed and the document size in random paper feed
SPPD2 RSPF paper pass sensor 2 Detects paper pass
SPLS1
SPED
SPPD1
SPPD2
SCOV
SPLS2
1
3
2
SPM
