Sharp MX-M266N

MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 12
1

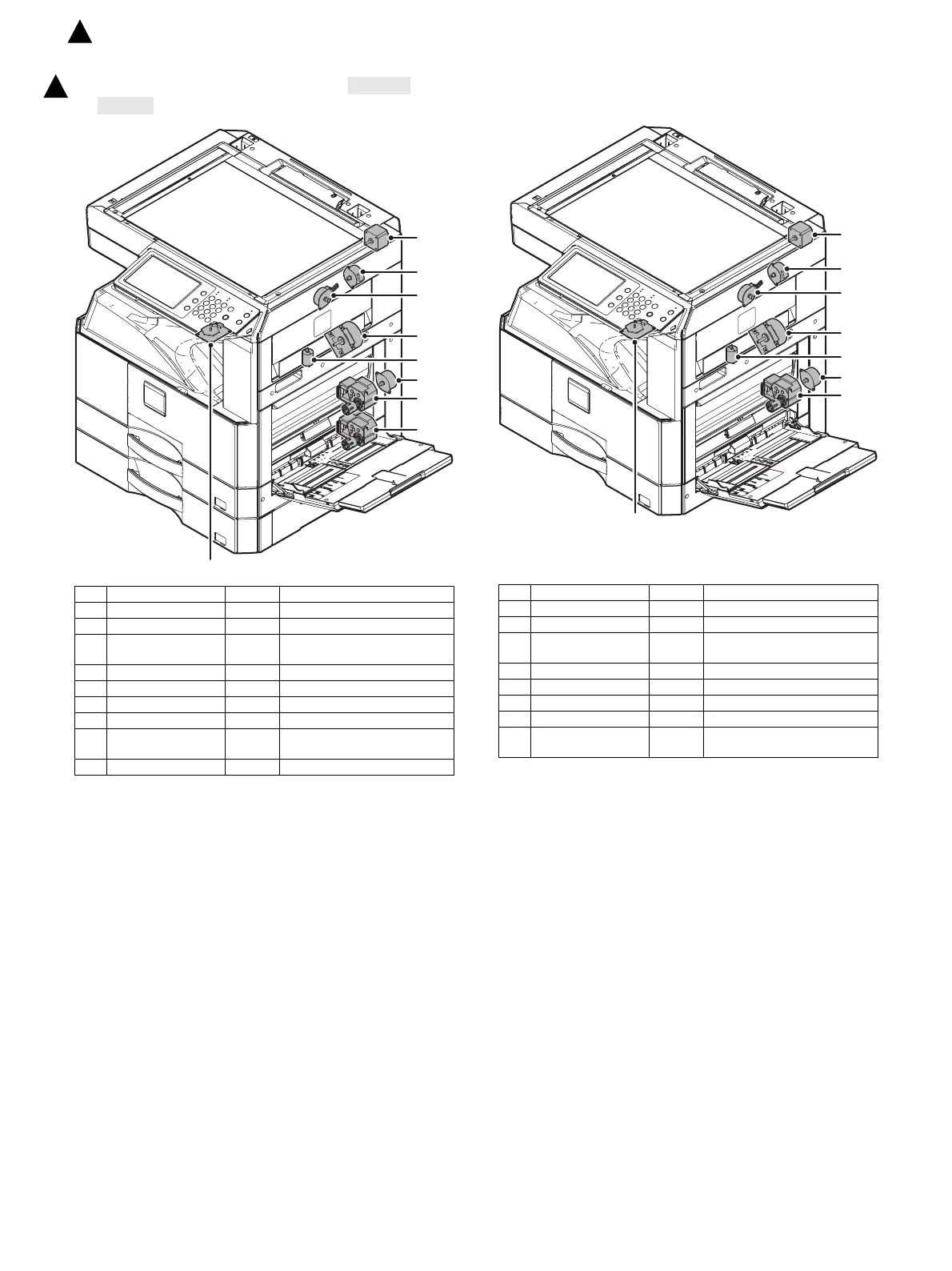

10. Drive motor
A. MX-M316N/M266N/M315N/M315U/M356N/
M356U
B. MX-M265N/M265U
No. Name Code Function and operation
1 Polygon motor PM Drives the polygon mirror
2 Scan motor MIM Drives the scanner unit
3 ADU motor ADUM Reverse pass for paper
transport
4 Tray lift motor C1LUM Tray paper lift
5 Main motor MM Main drive
6 Toner motor TNM Toner supply
7 Shifter motor OSM Shifter drive
8 Paper exit reverse
motor
POM Duplex paper switching and exit
motor
9 Tray lift motor C2LUM Tray paper lift
2
8
7
5
6
3
4
9
1
No. Name Code Function and operation
1 Polygon motor PM Drives the polygon mirror
2 Scan motor MIM Drives the scanner unit
3 ADU motor ADUM Reverse pass for paper
transport
4 Tray lift motor C1LUM Tray paper lift
5 Main motor MM Main drive
6 Toner motor TNM Toner supply
7 Shifter motor OSM Shifter drive
8 Paper exit reverse
motor
POM Duplex paper switching and exit
motor
2
8
7
5
6
3
4
1
1
: ‘15/Aug.
