MX-M316N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 16
1

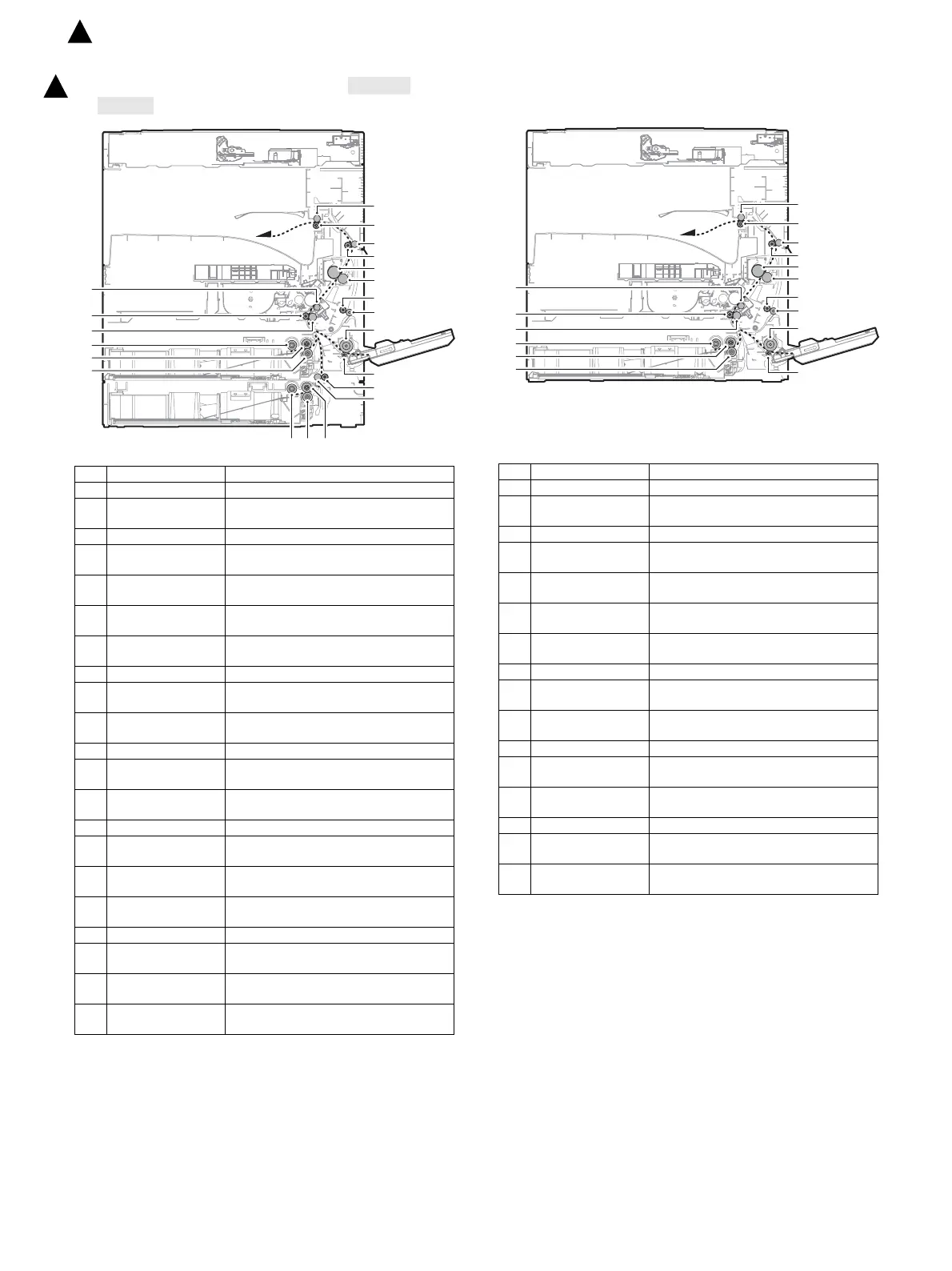

14. Roller
A. MX-M316N/M266N/M315N/M315U/M356N/
M356U
B. MX-M265N/M265U
No. Name Function and operation
1 Paper exit roller Paper exit roller
2 Paper exit follower
roller
Paper exit roller
3 Transport roller Paper transport roller
4 Transport follower
roller
Paper transport roller
5 Upper heat roller Fuses toner on paper. (with the Teflon
roller)
6 Lower heat roller Fuses toner on paper. (with the silicone
rubber roller)
7 DUP transport
follower roller
Duplex paper transport
8 DUP transport roller Duplex paper transport
9 Bypass tray paper
pick up roller
Picks up paper in bypass tray.
10 Bypass tray
separation roller
Separates a document to prevent double-
feeding. (Bypass tray)
11 Transport roller Transfer images on the drum onto paper.
12 Resist follower roller Synchronize the paper lead edge with the
image lead edge.
13 Resist roller Synchronize the paper lead edge with the
image lead edge.
14 1st tray pick-up roller Picks up paper from the tray.
15 1st tray paper feed
roller
Transports the picked up paper to RESIST
section.
16 1st tray separation
roller
Separates a document to prevent double-
feeding. (1st tray)
17 Transport follower
roller
Paper transport roller
18 Transport roller Paper transport roller
19 2nd tray pick-up
roller
Picks up paper from the tray.
20 2nd tray separation
roller
Separates a document to prevent double-
feeding. (1st tray)
21 2nd tray paper feed
roller
Transports the picked up paper to RESIST
section.
19 20 21
17
18
1
2
14
15
16
13
11
12
3
8
6
5
4
10
7
9
No. Name Function and operation
1 Paper exit roller Paper exit roller
2 Paper exit follower
roller
Paper exit roller
3 Transport roller Paper transport roller
4 Transport follower
roller
Paper transport roller
5 Upper heat roller Fuses toner on paper. (with the Teflon
roller)
6 Lower heat roller Fuses toner on paper. (with the silicone
rubber roller)
7 DUP transport
follower roller
Duplex paper transport
8 DUP transport roller Duplex paper transport
9 Bypass tray paper
pick up roller
Picks up paper in bypass tray.
10 Bypass tray
separation roller
Separates a document to prevent double-
feeding. (Bypass tray)
11 Transport roller Transfer images on the drum onto paper.
12 Resist follower roller Synchronize the paper lead edge with the
image lead edge.
13 Resist roller Synchronize the paper lead edge with the
image lead edge.
14 1st tray pick-up roller Picks up paper from the tray.
15 1st tray paper feed
roller
Transports the picked up paper to RESIST
section.
16 1st tray separation
roller
Separates a document to prevent double-
feeding. (1st tray)
1
2
14
15
16
13
11
12
3
8
6
5
4
10
7
9
1
