MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 14
4) Remove the FCCs and the harness from the optical unit to the
SCNcnt PWB. Then, remove the optical frame unit.

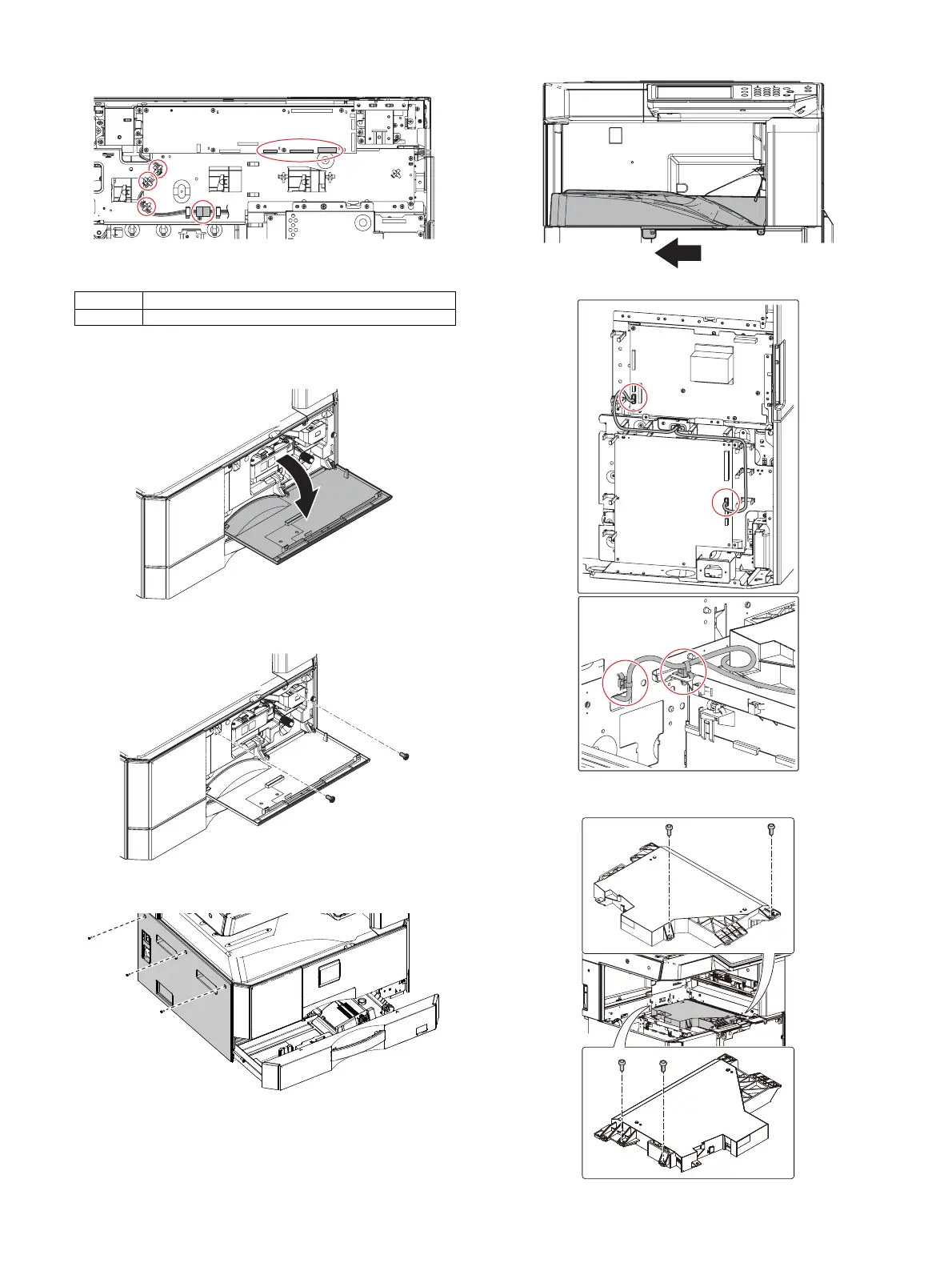

G. LSU section
(1) LSU unit
1) Open the front cover.
2) Remove the screws fixing the paper exit tray.
3) Open the tray and remove the left cover.
4) Remove the paper exit tray.
5) Disconnect the harness of the LSU unit and the clamps.
6) Remove the screws fixing the LSU unit. Then, remove the LSU
unit.
No. Contents
1LSU unit
To Next Page
