MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 15
H. Tray paper feed section/Paper transport
section

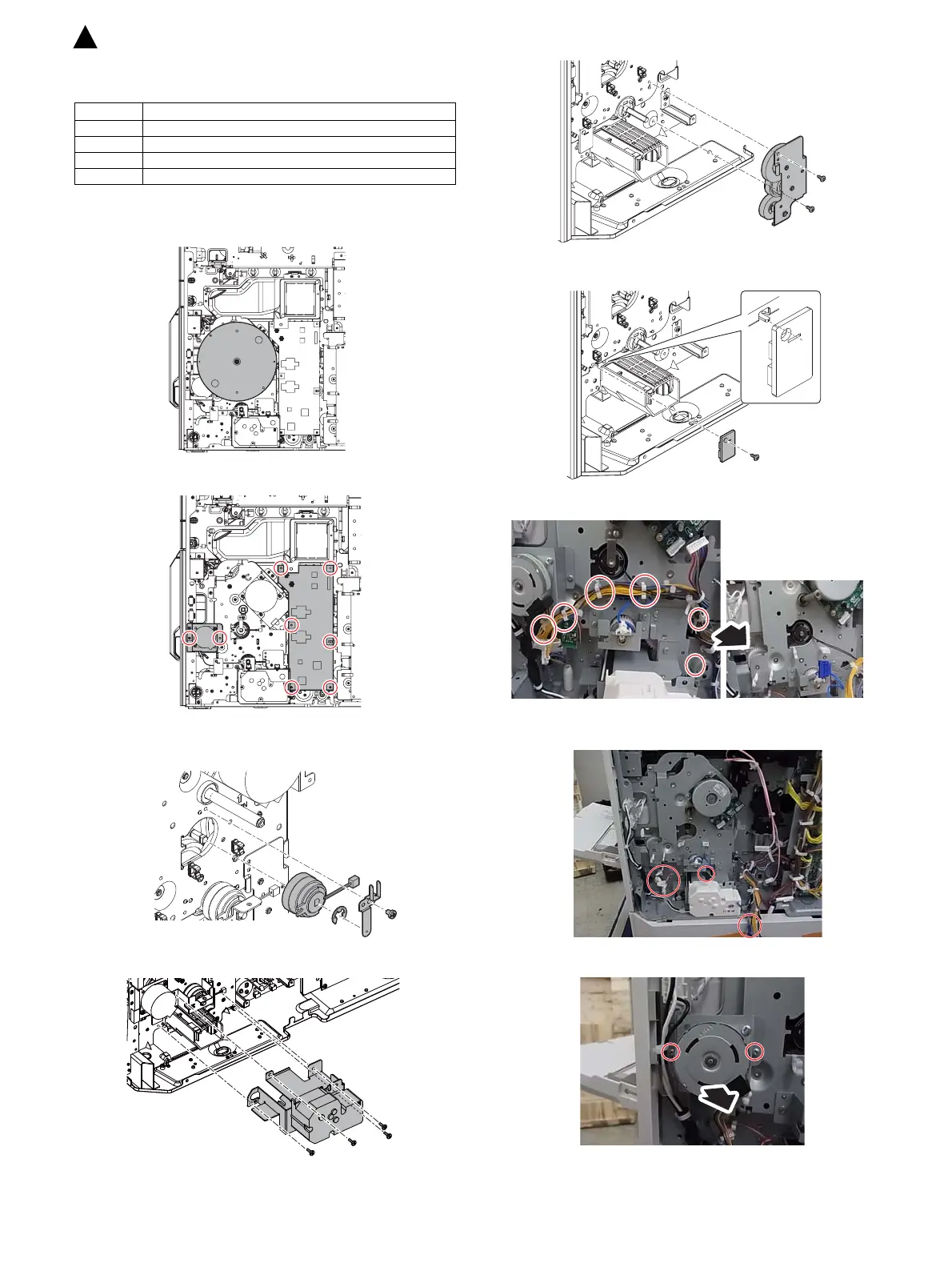

(1) Main drive unit
1) Remove the flywheel.
2) Remove the power unit and the duplex motor.
3) Remove the drum earth plate and the E-ring. Then, remove
the PS clutch.
4) Remove the lift up motor.
5) Remove the second drive unit.
6) Remove the temperature humidity sensor.
7) Remove the harness from the cable saddles.
8) Remove the connectors.
9) Remove the DUP motor.
No. Contents
1 Main drive unit
2 Paper feed clutch
3 PS roller
4 PIN sensor
1
: ‘15/Aug.
