Sharp MX-M266N

MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 16

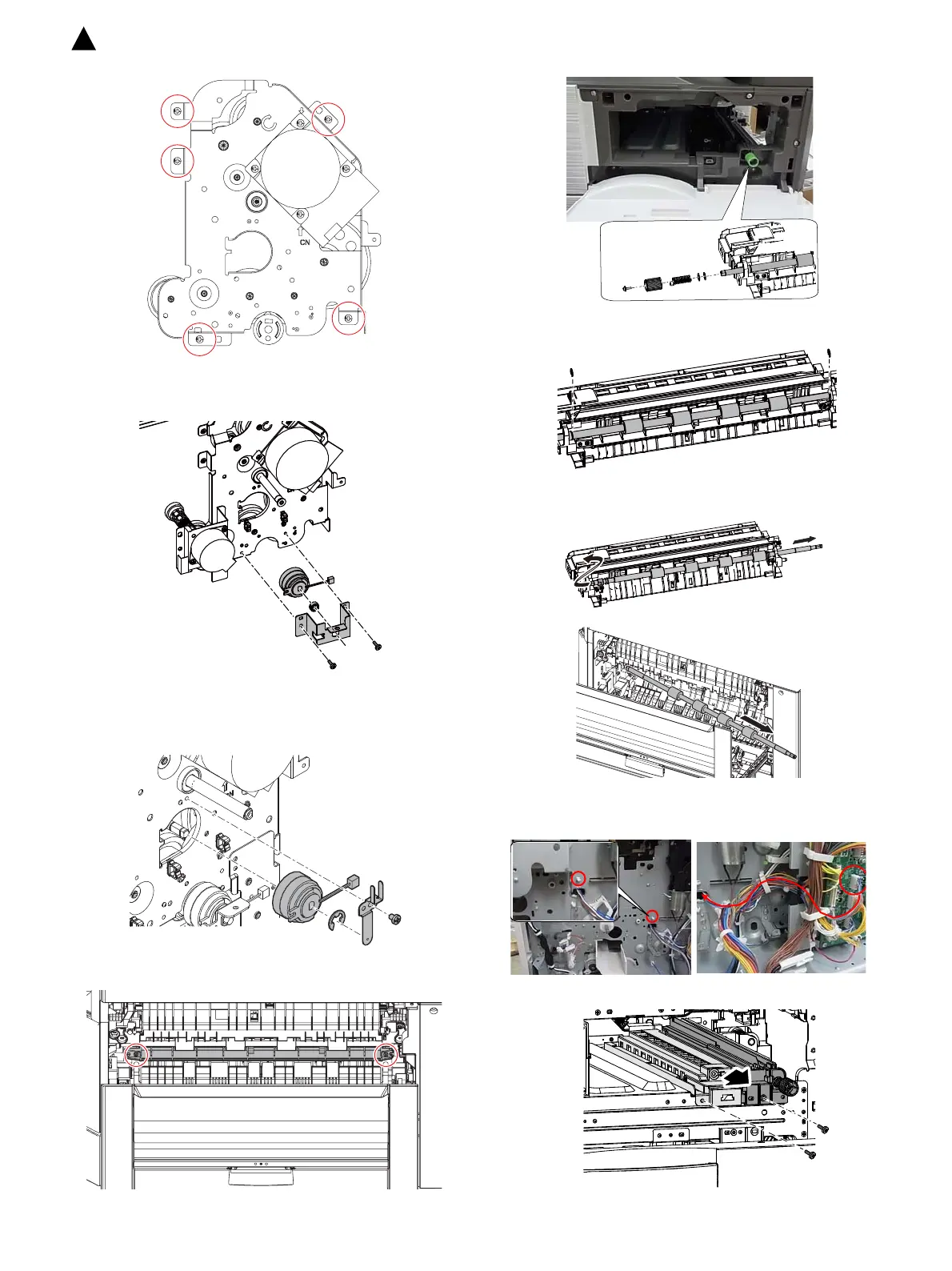

10) Remove the main drive unit.
(2) Paper feed clutch
1) Remove the paper feed clutch from the main drive unit.
(3) PS roller
1) Remove the drum earth plate and the E-ring. Then, remove
the PS clutch.
2) Open the right door and remove the PS right bottom guide PG.
3) Open the front door and remove the PS knob.
4) Remove the left E-ring.
5) Remove the PS roller
(4) PIN sensor
1) Remove the connector. And remove the harness.
2) Remove the PS unit.
2）
1）
3）
1
: ‘15/Aug.
