MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 21

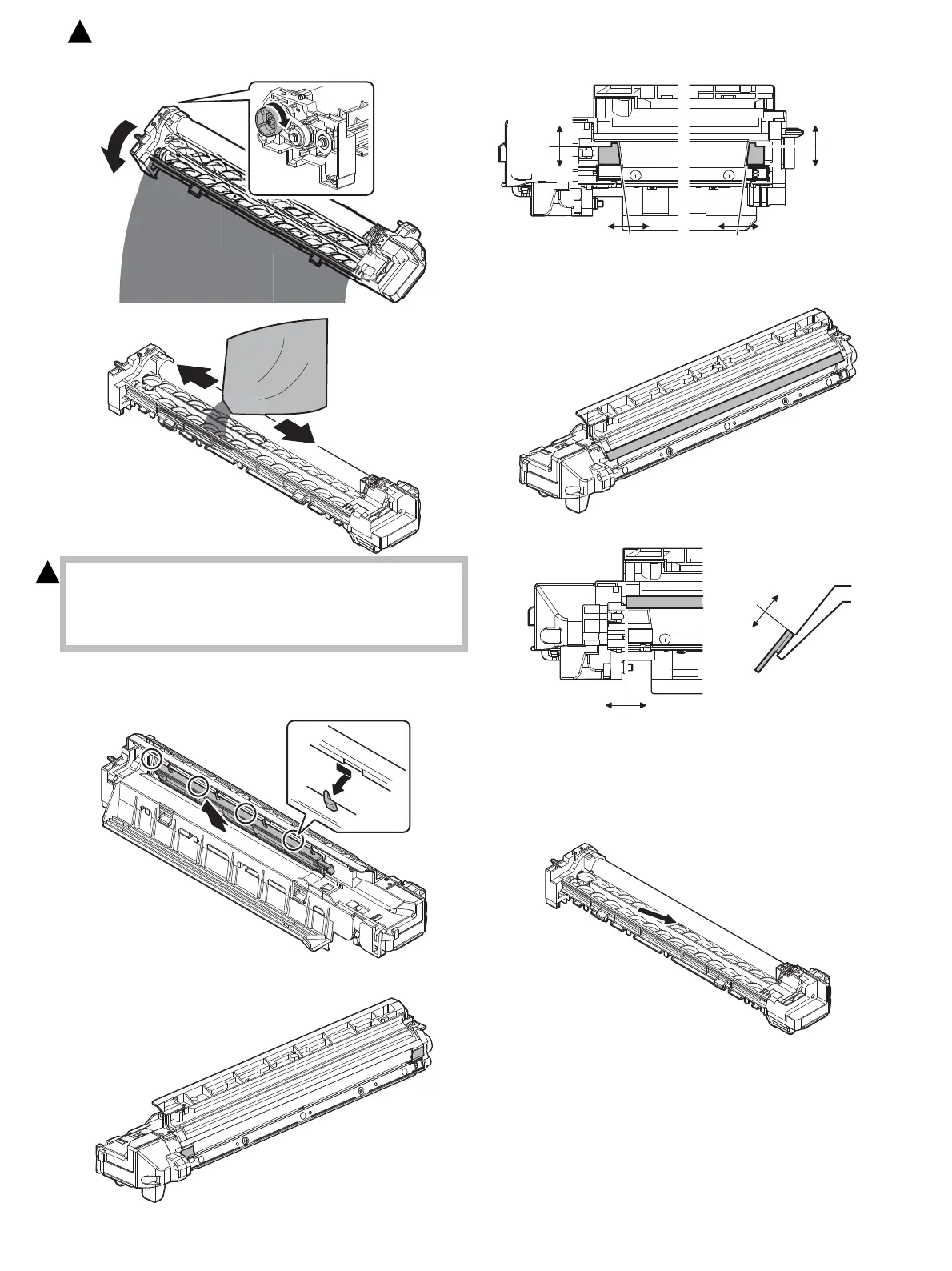

Turn the MG roller to discharge developer.
Toner cartridges must be installed to execute this setting (Toner
density control reference value setting)
Because of the structure of this machine, if SIM25-2 is executed
without the toner cartridges installed, the waste toner transport pipe
of the process UN may be locked.
(2) Toner filter unit
With the guide AS (cover) removed, replace it.
When replacing, clean the guide AS.
(3) DV side sheet F/ DV side sheet R
DV side sheet F/ DV side sheet R attachment reference
(4) DV blade
DV blade attachment reference
(5) Toner sensor
* Clean the sensor only after removing used DV when replacing
DV.
* Without removing the MG roller, clean the sensor surface with
waste cloth in the arrow direction to remove toner.
00.5 0 0.5
0
0.3
0
0.3
Projection edge
reference
Projection edge
reference
Molt
edge
reference
Molt
edge
reference
0
0.5
[Cross-section]
0
0.5
Bump
reference
1
: ‘15/Aug.
1
To Next Page
