MX-M316N DISASSEMBLY AND ASSEMBLY 10 – 7

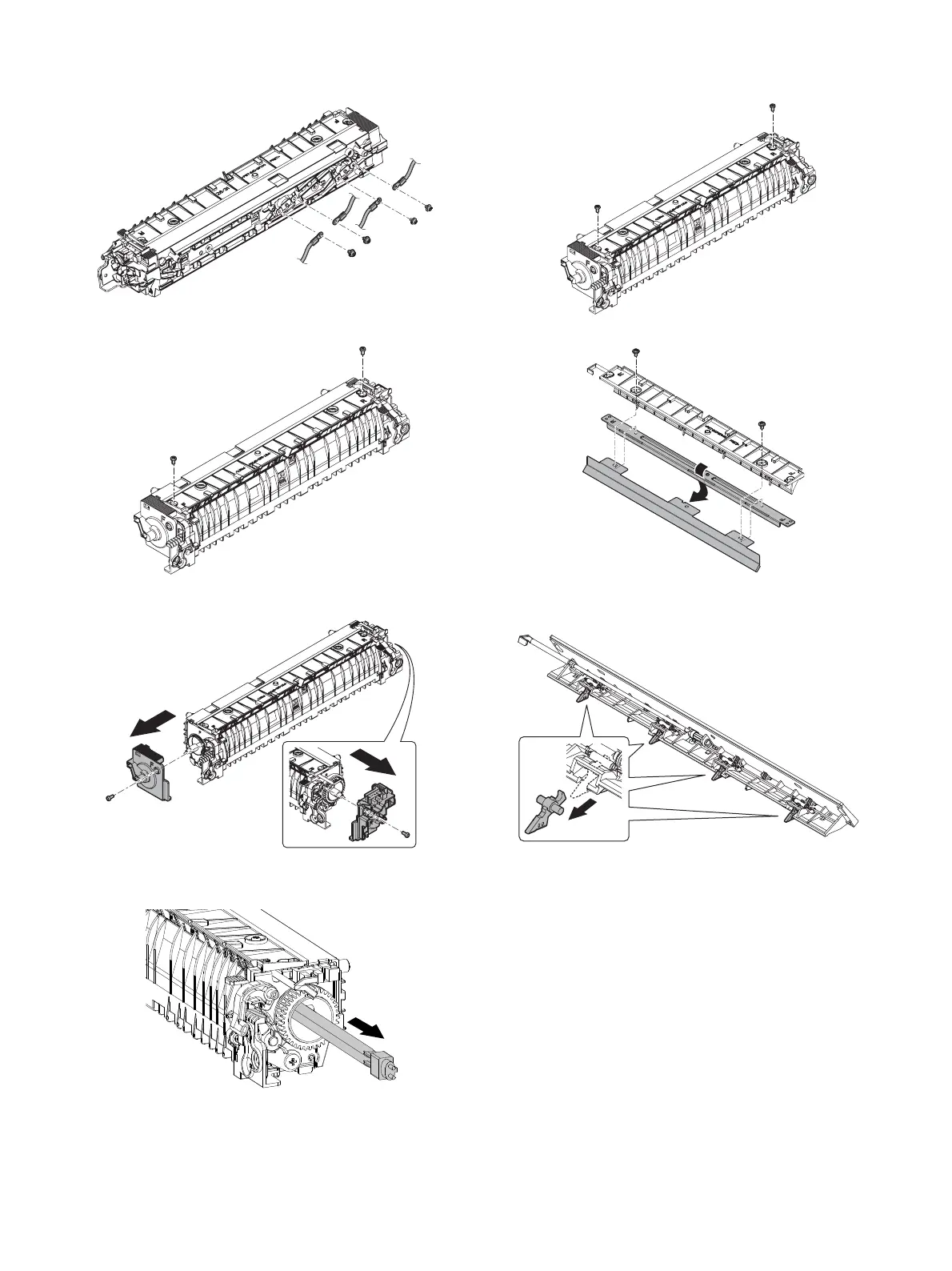

(6) Heater lamp
1) Remove the harnesses of the heater lamp.
1) Remove the screws fixing the upper fusing PG.
1) Remove the Front/Rear lamp fixing plates.
1) Remove the heat lamp.
(7) Cleaning felt
1) Remove the fusing cleaning plate unit.
1) Remove the cleaning felt.
(8) Upper separation pawl
1) Remove the upper separation pawl.
