Chapter 4 Sample Injection Unit

GC-2014 Service Manual

4.3.1 Heater Resistance Values for HEATER, PT ASSY, SPL, 100 and

HEATER, PT ASSY, SPL, 230

Model name Heater resistance values

HEATER, PT ASSY, SPL, 100

90.0 to 99.3 Ω

HEATER, PT ASSY, SPL, 230

429.8 to 484.0 Ω

4.3.2 Recognized Resistance Values for HEATER, PT ASSY, SPL, 100 and

HEATER, PT ASSY, SPL, 230

As shown in the configuration diagrams and flow-line diagrams for SPL-2014 and

WBI-2014, the sample injection unit for SPL-2014 and WBI-2014 both use the SPL-2014

unit (for 100-120 V or 220-240 V), which has a recognized resistance value of 1 kΩ,

regardless of the voltage type. For this reason, it is requested that the

temperature-control port name is set by the user when installing the WBI-2014 so that

SPL and WBI can be distinguished on the monitor screen.

4.3.3 Precautions for Replacing HEATER, PT ASSY, SPL, 100 and HEATER,

PT ASSY, SPL, 230

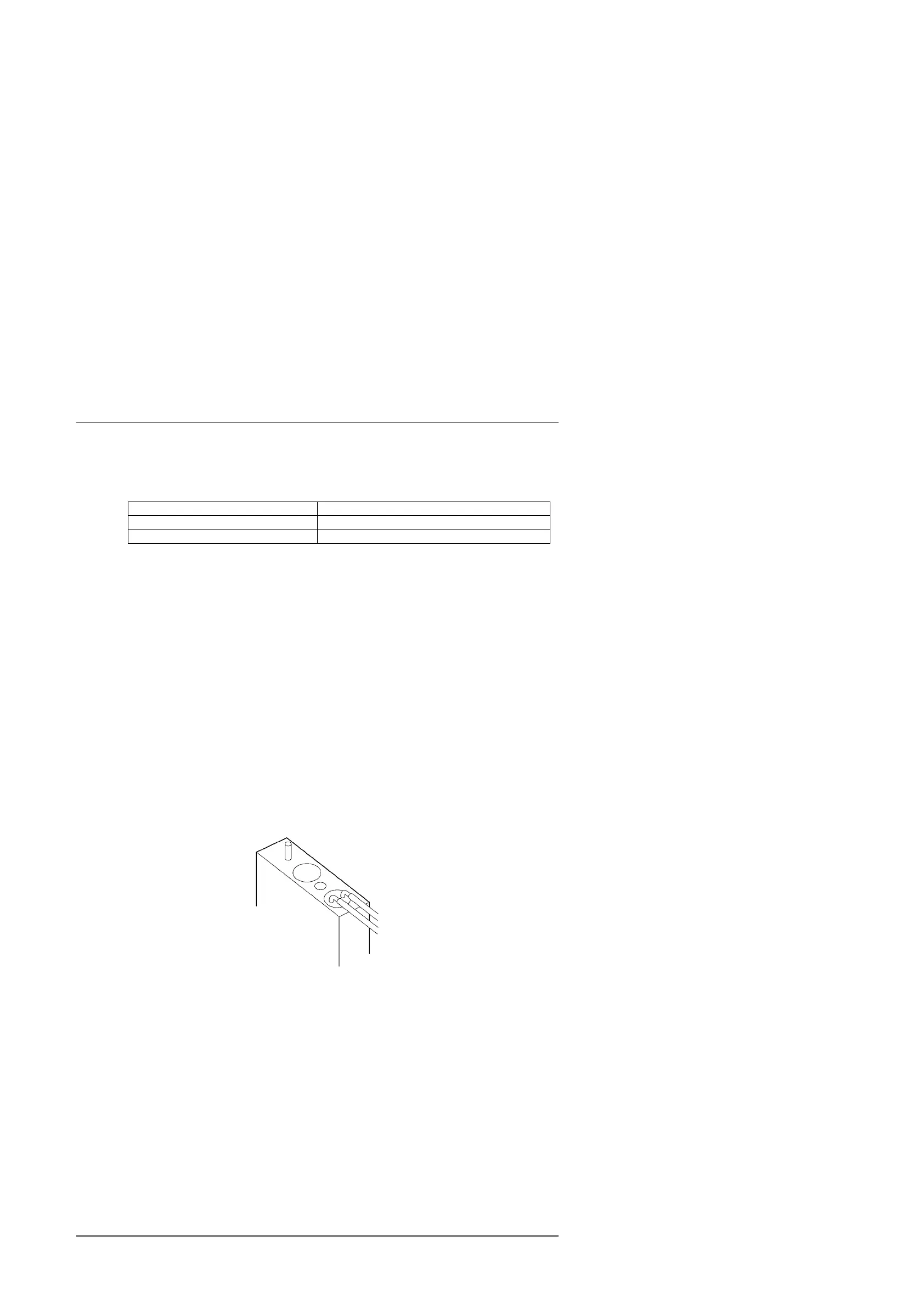

Insert the heat-sensitive material in the heater block until it hits the bottom (depth:

approx. 18 mm). Insert the heater in the heater block, with the orientation shown below,

until it hits the bottom. To prevent short-circuiting of the lead wires, bend them at points

1 to 2 mm from the bottom while pressing them so as not to apply stress to the heater

insulator.
