Chapter 4 Sample Injection Unit

4.4 Packed Dual Injector

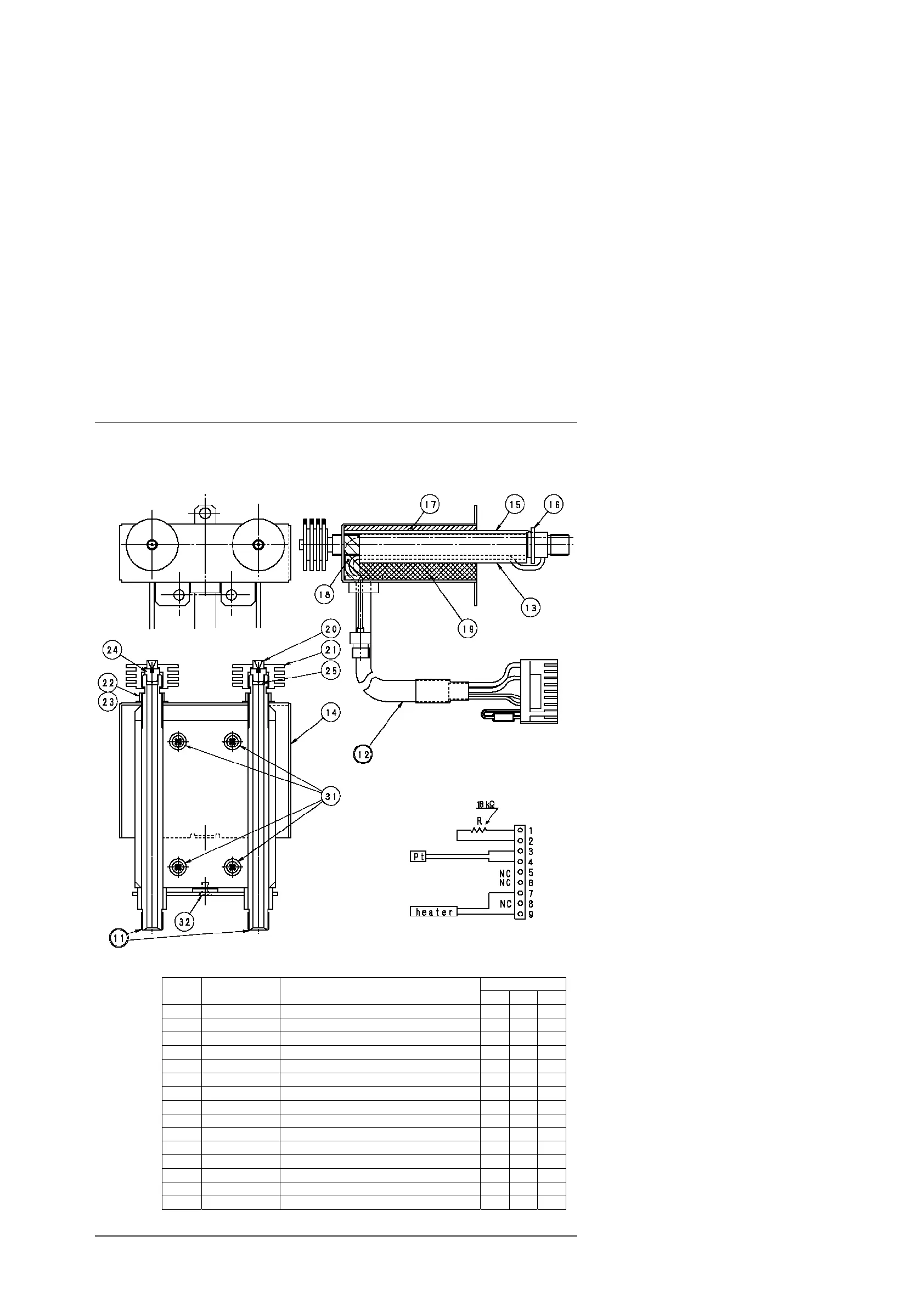

Parts List for Packed Dual INJ, 221-70080-34 (230V), -81 (100V), -82 (115V)

Quantity

Number P/N Part name

230V 100V 115V

11 221-70189-91 INJECTION UNIT ASSY, 122 2 2 2

12 221-70479-34 HEATER, PT ASSY, P-INJ230 1

12 221-70479-91 HEATER, PT ASSY, P-INJ100 1

12 221-70479-92 HEATER, PT ASSY, P-INJ115 1

13 221-70188 HEATER BLOCK, DUAL INJ 1 1 1

14 221-70192 COVER, PACKED DUAL INJ 1 1 1

15 221-70193 HOLDING PLATE, HEATER 1 1 1

16 221-70196 LOCK RING 1 1 1

17 221-70480 HEAT SENSITIVE MATERIAL, PACKED 1 1 1 1

18 221-70481 HEAT SENSITIVE MATERIAL, PACKED 2 1 1 1

19 221-70482 HEAT SENSITIVE MATERIAL, PACKED 3 1 1 1

20 221-44584 NEEDLE GUIDE, AOC 2 2 2

21 221-70466 FIN, 2014 2 2 2

24 201-47435 RUBBER PLUG, INJ PORT, SILICON 2 2 2

25 221-22206 SPACER, INJ 2 2 2

GC-2014 Service Manual
