Shimadzu GC-2014 Series - FID Detector Configuration

Chapter 5 Detector Unit
GC-2014 Service Manual
83
5.2 FID

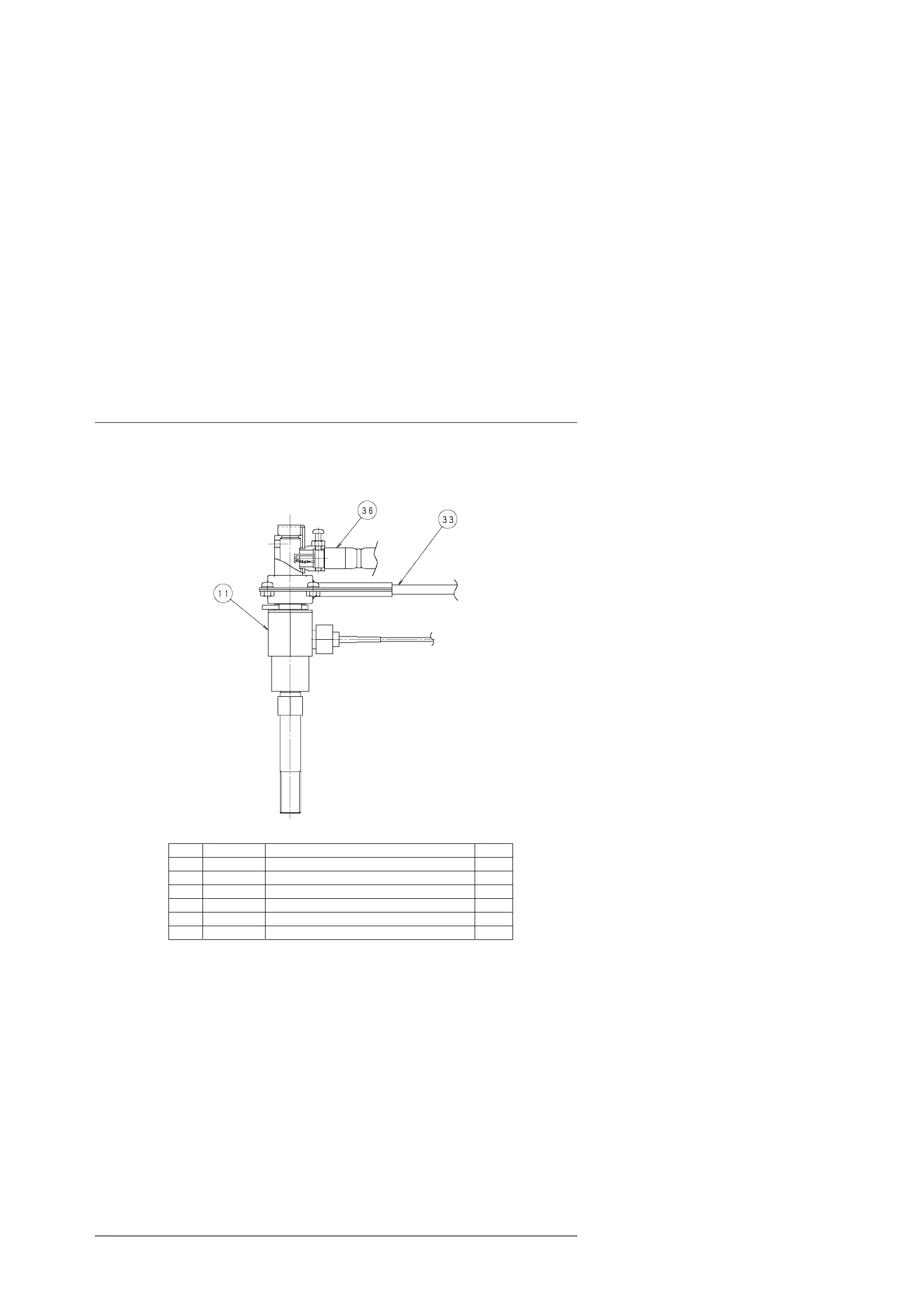

Parts List for FID-2014 CELL ASSY, 221-70090-91
Number P/N Part name Quantity
11 221-70630-91 FID-2014 CELL BASE ASSY 1
11-1 221-70298-91 BASE,MAIN ASSY, FID 1
11-2 221-70162-92 NOZZLE ASSY, PACKED 1
11-3 221-47146-92 HIGH VOLTAGE ELECTRODE, FID2014 1
33 221-47659-92 COLLECTOR ASSY, FID, 600MM 1
36 221-41847-93 FILAMENT ASSY, 180MM 1
