Shimadzu GC-2014 Series User Manual

Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
26

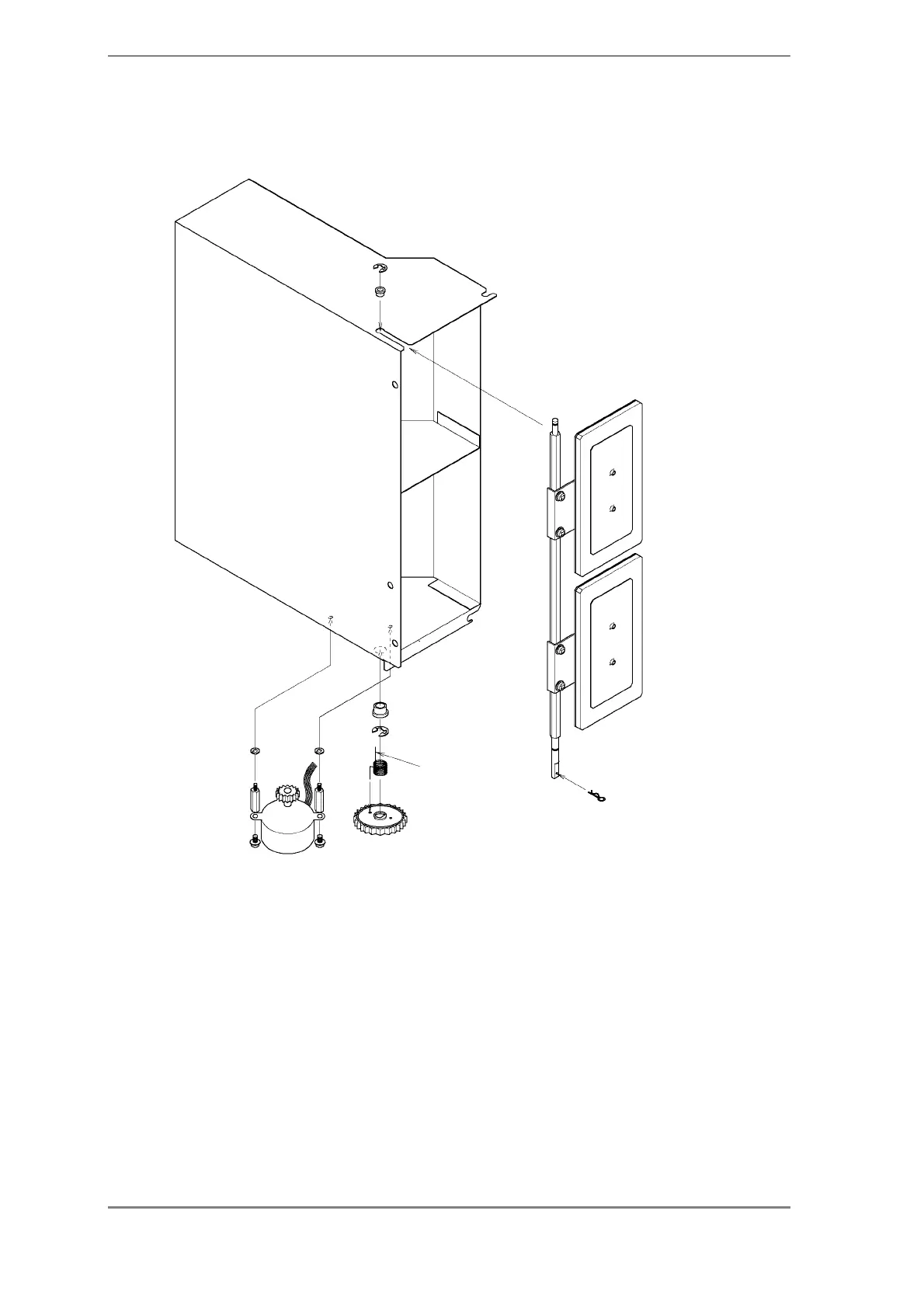

2.2.9 Structure of Oven Cooling Unit
A
ttach the top end
of spring #17 to the
outer surface of
air-supply/exhaust
pipe #11 with tape
#42.
In the fully open, intermediate, and fully
closed positions, the shaft must drop
under its own weight when lifted.
Insert gear #18 as
far as it will go.
A
fter assembly, it must be
possible to turn this gear
smoothly with your fingers.

Shimadzu GC-2014 Series Specifications

General

Type	Gas Chromatograph
Detector Options	FID, TCD, ECD, FPD, FTD
Display	LCD
Injection Ports	Up to 3
Column Options	Capillary, Packed
Data System	GCsolution software
Weight	Approx. 45 kg
Number of Detectors	Up to 4 detectors
Injection Port	Split/Splitless
Power Requirements	100-240V AC, 50/60Hz
