Chapter 2 Configuration of GC-2014

GC-2014 Service Manual

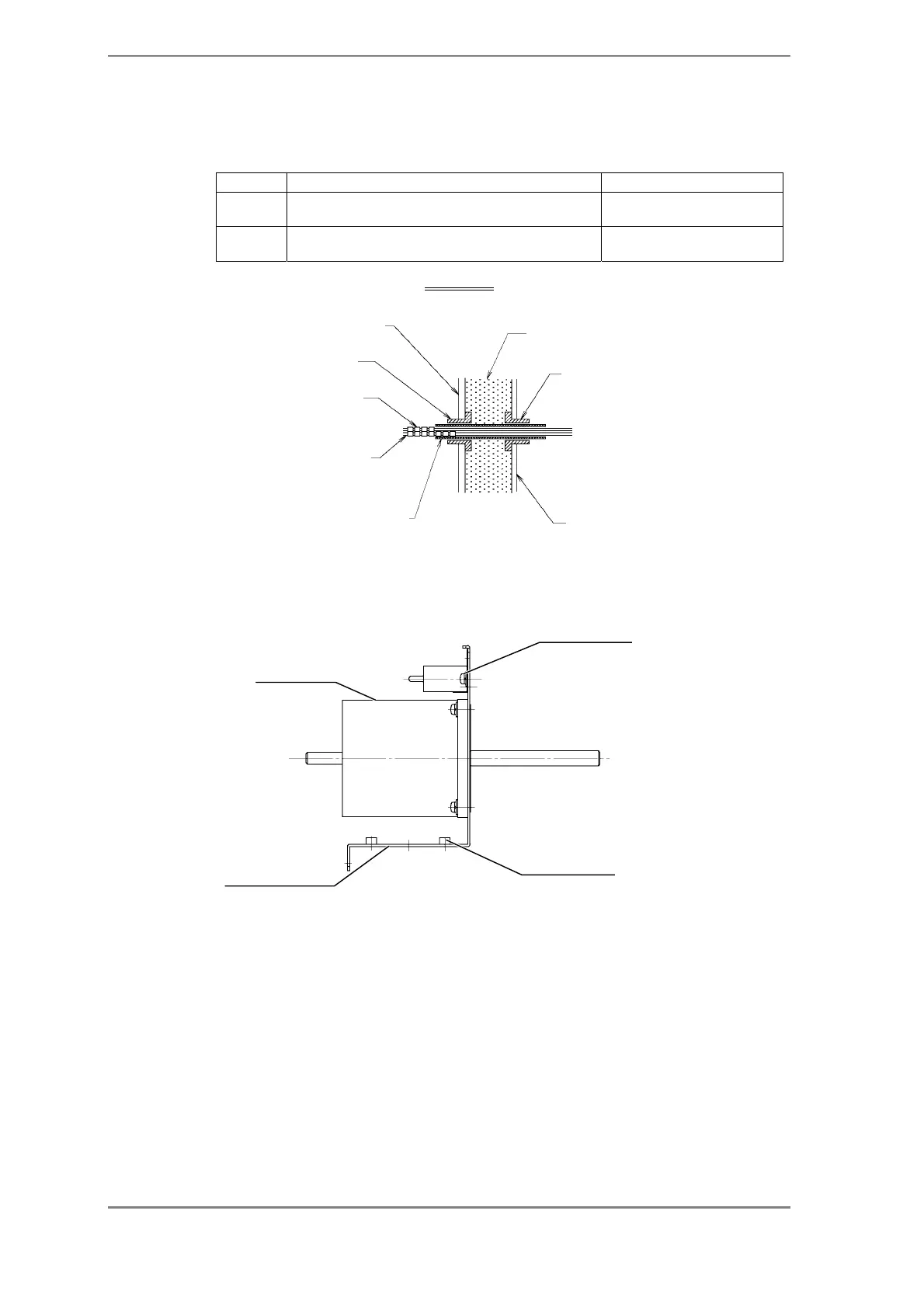

2.2.6 Heater and PT Sensor/Thermocouple

HEATER ASSY

Part number/name Heater resistance value

100 V

P/N: 221-43652-91

COLUMN OVEN HEATER ASSY, 100 V, 1.3 kW

7.1 to 7.9 Ω

200 V

P/N: 221-46381-94

COLUMN OVEN HEATER ASSY, 230 V, 2.1 kW

24.6 to 25.8 Ω

Rear Side

Inside wall of oven

Heat insulating material

Insulato

Tubular insulators

Heater cable

100-mm silicon glass tube

(The end of the tube must

protrude a little from the

insulator.)

Motor die

2.2.7 Fan Motor

020-46547

SCREW, SUS, SEMS, P3, M4×8

221-28242-01

MOTOR, E0521-342 (100 V)

221-70358

E4791-342 (230 V)

221-70489

MOTOR, E4848-342 (115 V)

020-46549

SCREW, SUS, SEMS, P3, M4×12

221-49649

MOTOR HOLDER
