Chapter 8 Service Window
GC-2014 Service Manual
110

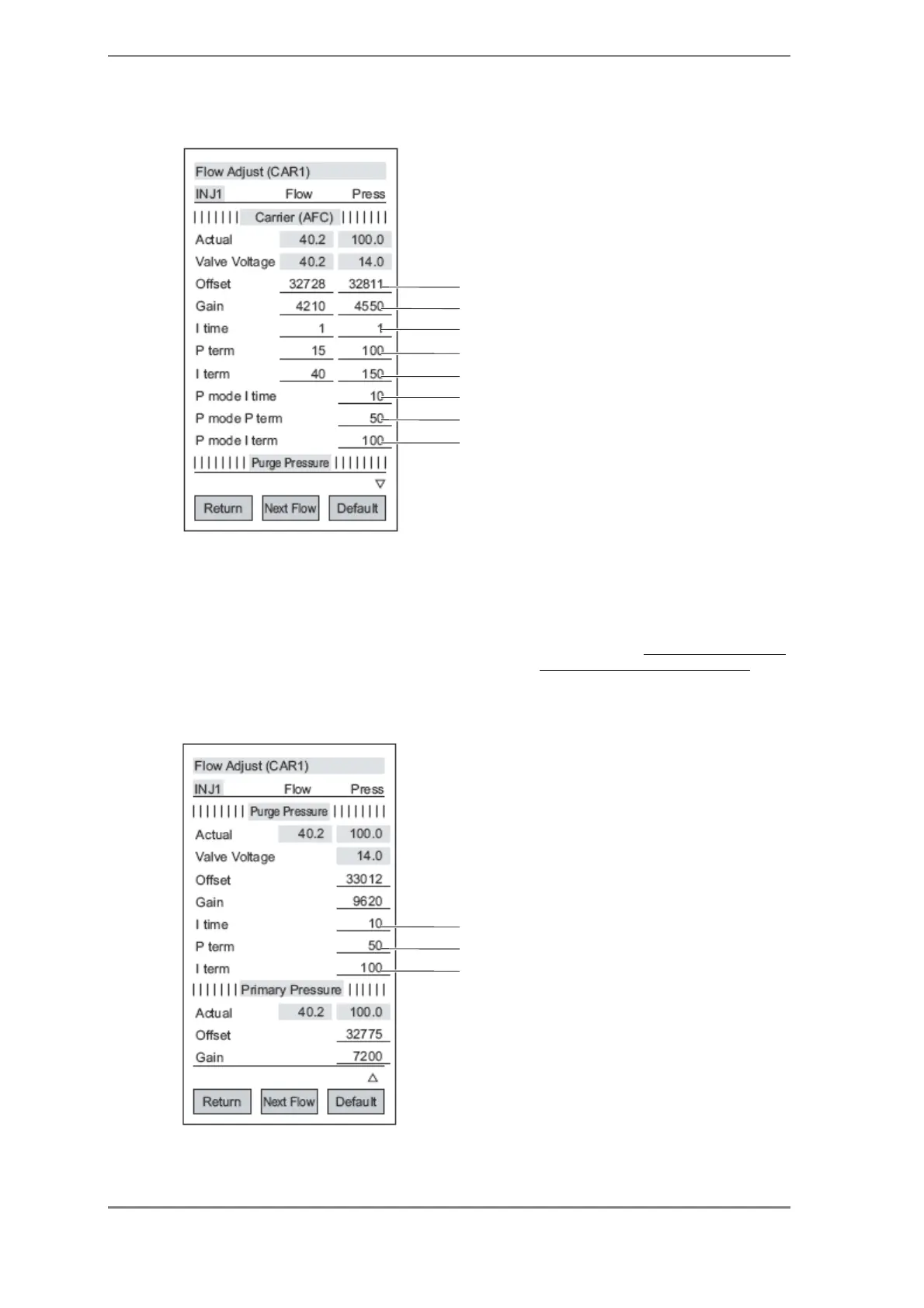

8.1 Flow Adjust (CAR)
Default value
Sensor gain for carrier gas
Sensor offset for carrier gas
This window can be used to set the control parameters for
the carrier-gas flow controller (DAFC for DINJ, AFC for
SPL-2014, or AFC for WBI-2014).
If the set value and the actual measurement value of the
flow rate or pressure differ, adjustment can be made by
changing the Offset or Gain value.
Default value
Default value
Default value
Default value of AFC for SPL (Default value of AFC for WBI is 10.)
Default value of AFC for SPL (Default value of AFC for WBI is 12.)
Continuation of Above Window
Default value
Default value
Default value
pf4: ROM wrt
pf5: Offset
pf6: Prim Ofs
Explanation of pf Keys
Default (pf3) ......... Resets all displayed parameters to their
default values. (Not written to ROM.)
ROM wrt (pf4)....... Press this key to write the values set in
this window, such as the offset and gain
values, to ROM. The values are not set
in ROM unless this key is pressed.
Offset (pf5) ........... Performs offset calibration of the
pressure sensor, flow-rate sensor, and
purge flow-rate sensor. Be sure to press
this key to enable the calculated offset
value.
PrimOfs (pf6)........ Performs offset calibration of the
primary pressure sensor (pressure of
supply to GC-2014).
When performing offset calibration, be
sure to remove the GC-2014's
carrier-gas supply piping from the
GC-2014. Normally, the value should be
in the range 32,000 to 33,000.
pf4: ROM wrt
pf5: Offset
pf6: Prim Ofs

Shimadzu GC-2014 Series Specifications

General

Type	Gas Chromatograph
Detector Options	FID, TCD, ECD, FPD, FTD
Display	LCD
Injection Ports	Up to 3
Column Options	Capillary, Packed
Data System	GCsolution software
Weight	Approx. 45 kg
Number of Detectors	Up to 4 detectors
Injection Port	Split/Splitless
Power Requirements	100-240V AC, 50/60Hz
