Chapter 2 Configuration of GC-2014
GC-2014 Service Manual
23

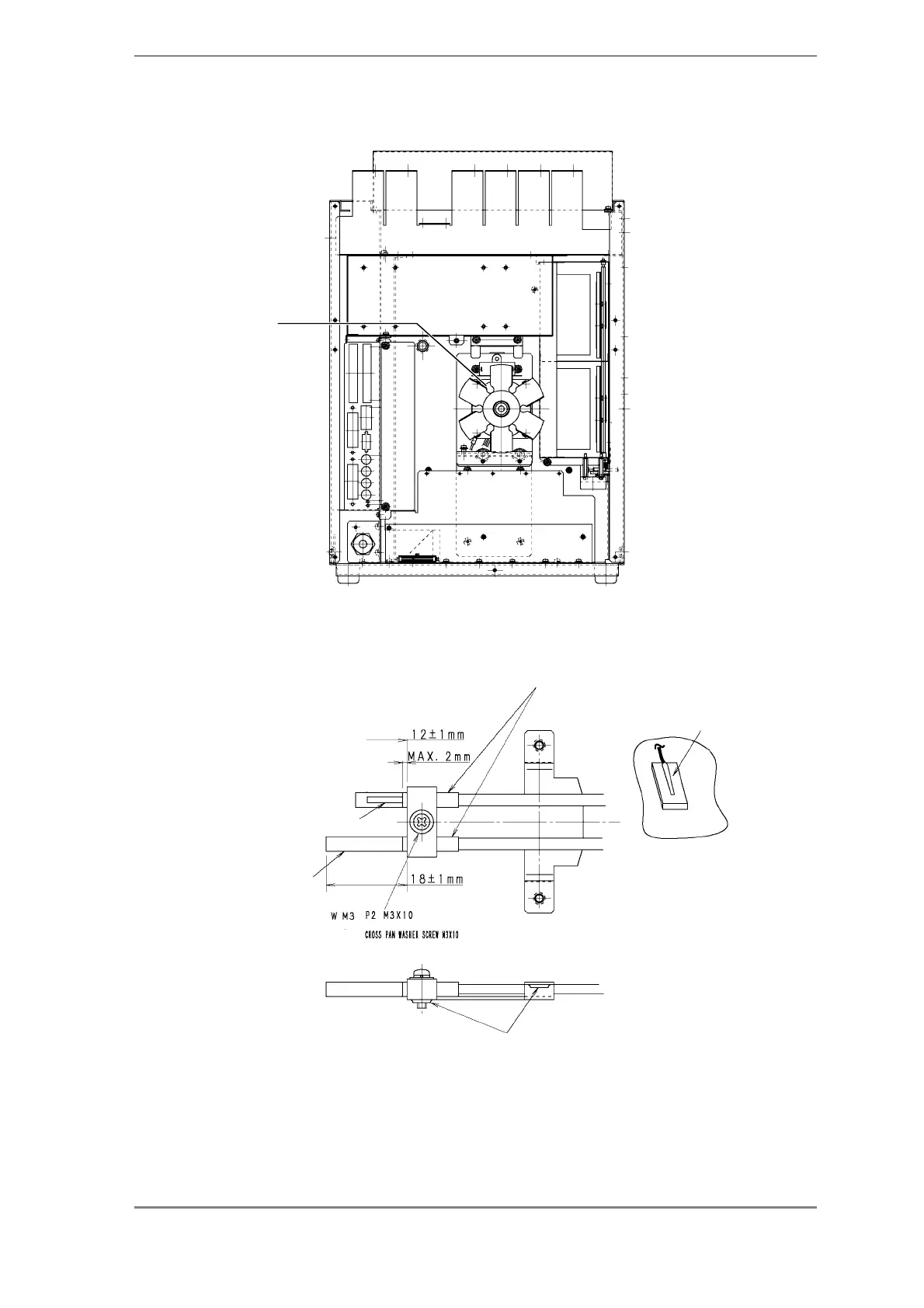

2.2.4 Structure Diagram 3
MOTOR ASSY
221-70072-91
MOTOR ASSY, 115
221-70072-92
MOTOR ASSY, 230
221-70072-34
2.2.5 PT Sensor and Thermocouple
Silicon glass tube
Top side of element
PT sensor (221-43695-91)
Ensure that the top side o
f
the element is in front.
Element
Thermocouple
(221-43696-91)
OneOne
The burring side goes here.
