Chapter 4 Sample Injection Unit

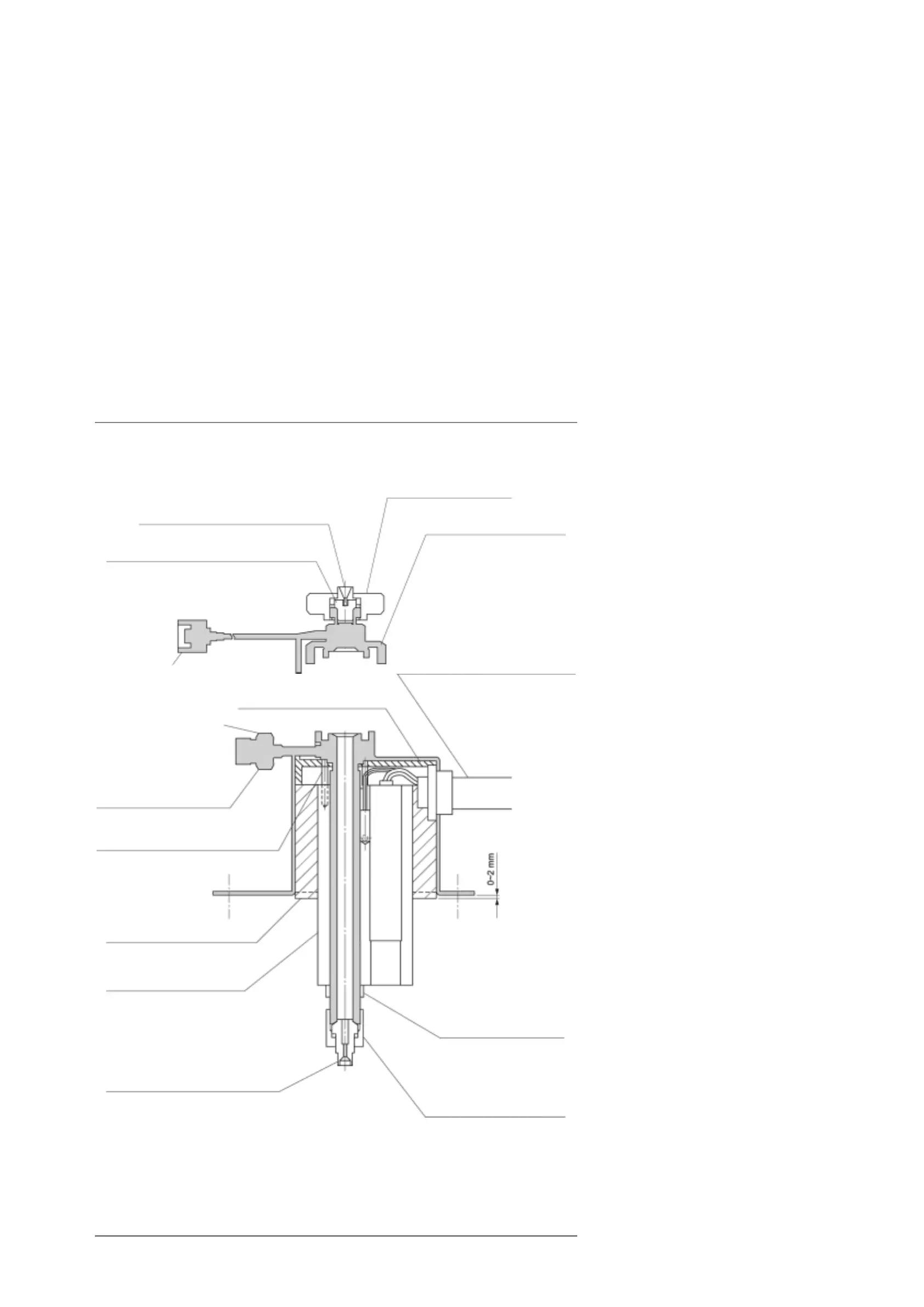

4.3 Configuration of Injection Unit

221-41286 SEPTUM NUT

221-44584 NEEDLE GUIDE AOC

221-47721-91

INJECTION PORT A ASSY

(shaded region)

221-47435 RUBBER PLUG, INJ PORT, SILICON

221-70602 -91 HEATER, PT ASSY, SPL100

-34 HEATER, PT ASSY, SPL230

CARRIER/PURGE LINE

221-70597-01 INSULATOR, UPPER

SPLIT LINE

221-70166-91

BASE, INJECTION UNIT A

(shaded region)

026-11023-02 PARALLEL PIN, SUS, A1.6 × 4

221-70598-01 INSULATOR, SPL

221-70421 HEATER BLOCK, SPL

201-46833 NUT, M10

221-42998 NIPPLE, FOR GASKET

201-30051 WASHER, WM

201-30008 NUT, MF

GC-2014 Service Manual
