Chapter 2 Configuration of GC-2014

GC-2014 Service Manual

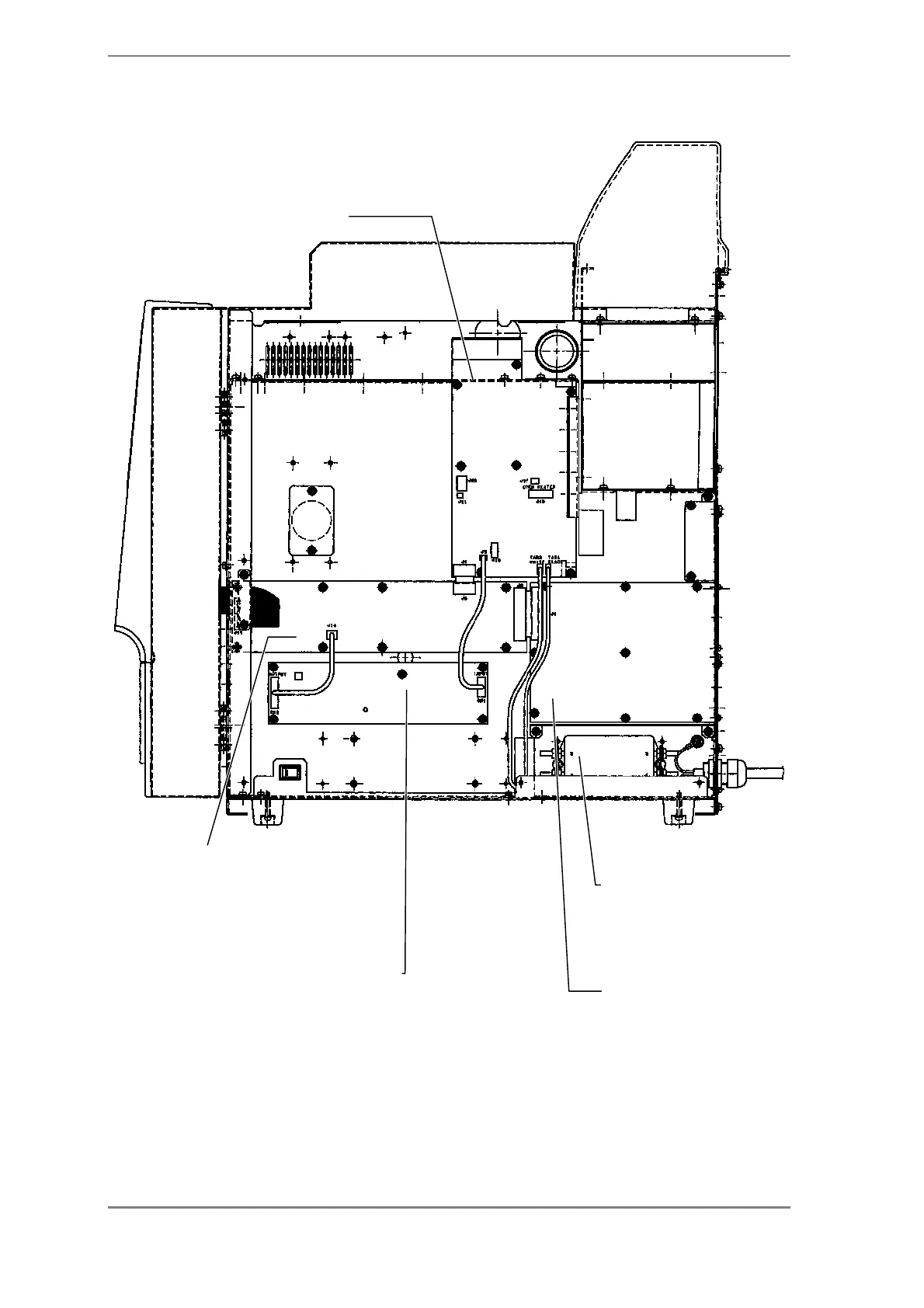

2.2.3 Structure Diagram 2

POWER UNIT, 2014, 100 V (100-V system)

221-48460-92

POWER UNIT, 2014, 230 V (200-V system)

221-48460-39

PCB DET I/F, GC2014

221-70254-91

POWER SUPPLY, VS100B-24 (100-V system)

074-80654-77

POWER SUPPLY, ZWS100PF-24/J (200-V system)

074-80383-56

FILTER, ZAG2230-11S

(100-V system)

075-00075-04

FILTER, MBS-1220-22

(200-V system)

075-00069-04

PCB CPU ASSY, GC2010

221-45737-91
