Shimadzu GC-2014 Series User Manual

Chapter 5 Detector Unit
GC-2014 Service Manual
84

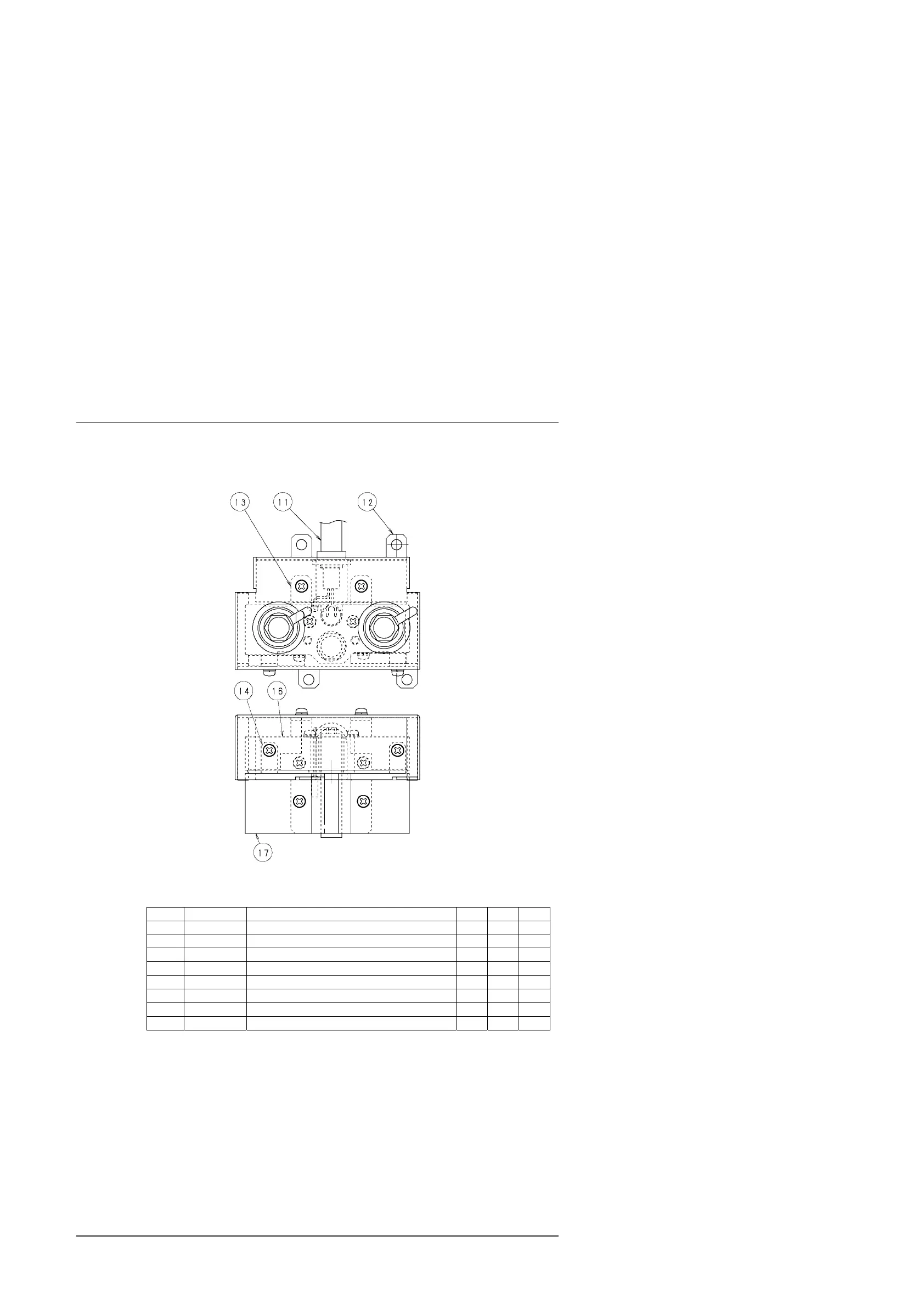

5.2.1 DET HEATER ASSY, F
Parts List for DET HEATER ASSY, F, 221-70085-34 (230V), -91 (100V), -92 (115V)
Number P/N Part name 230V 100V 115V
11 221-70671-34 HEATER, PT ASSY, D-FID 230 1
11 221-70671-91 HEATER, PT ASSY, D-FID 100 1
11 221-70671-92 HEATER, PT ASSY, D-FID 115 1
12 221-70124 DET, DUAL, UPPER COVER, FID 1 1 1
13 221-70127 DET, DUAL, BLOCK PLATE A 1 1 1
14 221-70139 LOCK RING, DET, DUAL 1 1 1
16 221-70136 DET, DUAL, BLOCK, UPPER 1 1 1
17 221-70137 DET, DUAL, BLOCK, LOWER 1 1 1
