ShopBot PRS Assembly Manual Page -11
Assembling the Table

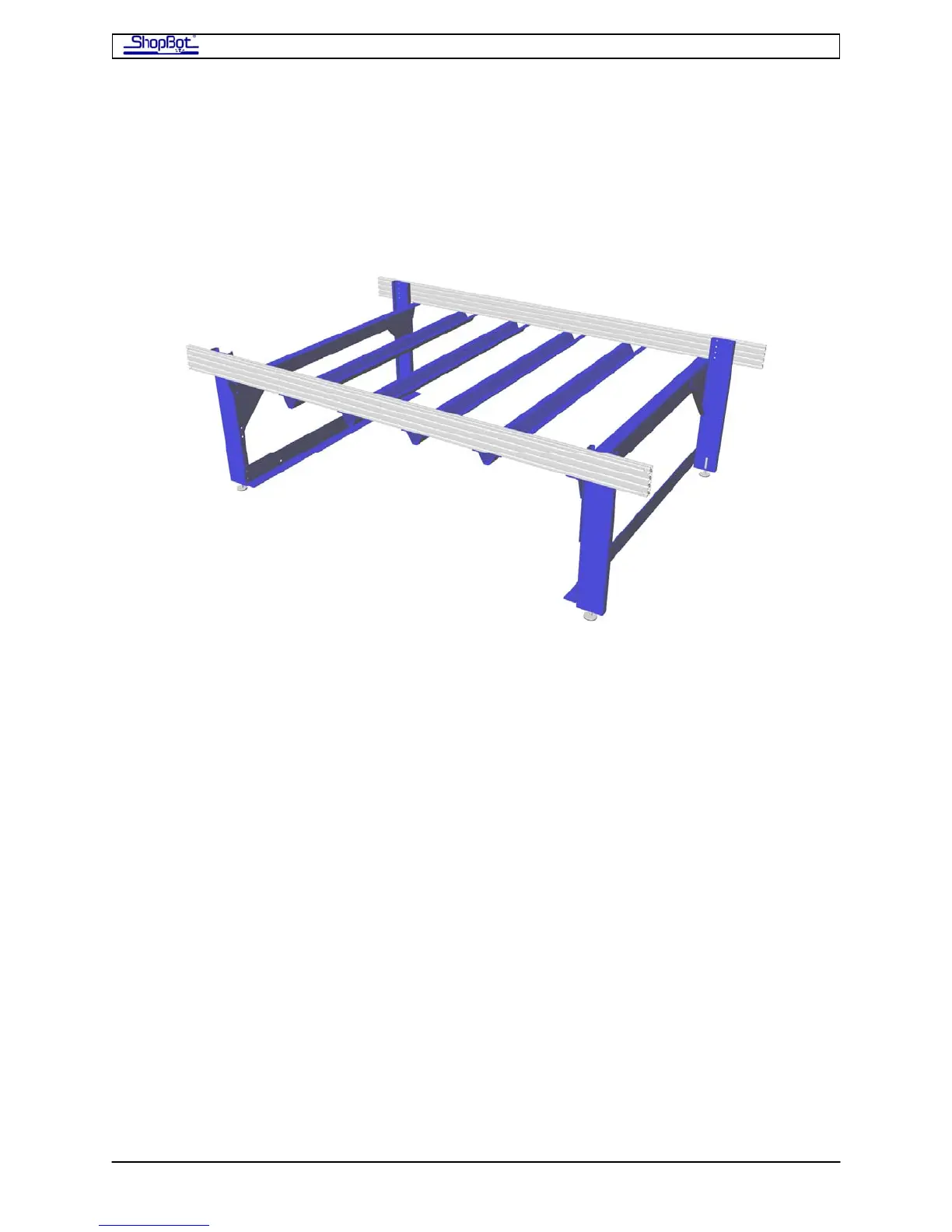

These are general assembly instructions for our steel and aluminum extrusion tables. For
specific dimensions and part identification, refer to the included Measured Drawing (located
at the back of this section) specific for the size ShopBot you are assembling. The Measured
Drawing plans show the dimensions of the tools, the spacing of the cross supports, and the
correct position for the table surface. NOTE that the number of legs on each side of the
table differs according to the size ShopBot you are assembling.
Take a look at Step 1.6 before you start. The goal of this assembly process is to have a
square and correctly dimensioned table at the end point. In the final step you will be
attending to getting the table square and the table sides exactly dimensioned for your tool.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
