ShopBot PRS Assembly Manual Page -20

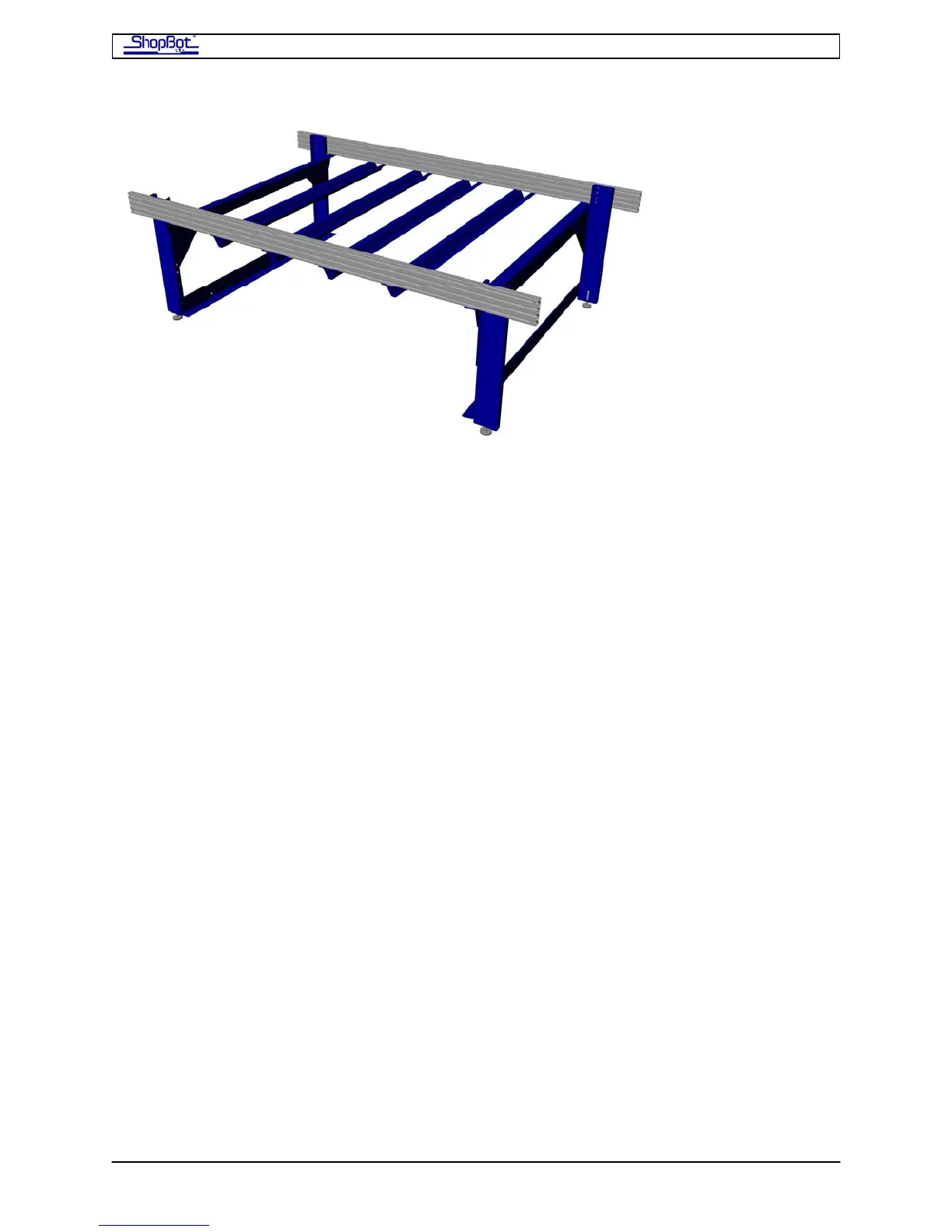

Step 1.6 Square and Level Table
Set the table where it will be used. Plan to spend a little time getting it square and adjusted
to the exact correct width measurement. [SEE DRAWING & TABLE BELOW]
Set the legs perpendicular to the Table Sides with a square and tighten.
Level the tops of the Table Sides across and diagonally using the Machine Glides. Then
tighten the 5/8” nuts on the Machine Glides.
Measure the table across both diagonals. If the measurements are not the same, the table
is not square. You will need to shorten the longer diagonal by one-half the difference of the
two diagonal measurements. With a mallet or hammer & protective block of wood, gently
tap the end of the table side at one end of the longer diagonal to shorten as needed. Adjust
the table until the measurements across the diagonals match.
Then, work to adjust the distance between the rails to the exact spacing indicated in the
table below. It can be helpful to cut a measurement gauge from a 2x4 to use to set the
distance between the table sides. Make sure the gauge distance is right and giving you the
correct outside to outside measurements.
Tighten all hardware once the table is measured and square. Check the diagonals and the
distances frequently as you move around the table tightening the bolts.
