ShopBot PRS Assembly Manual Page -34

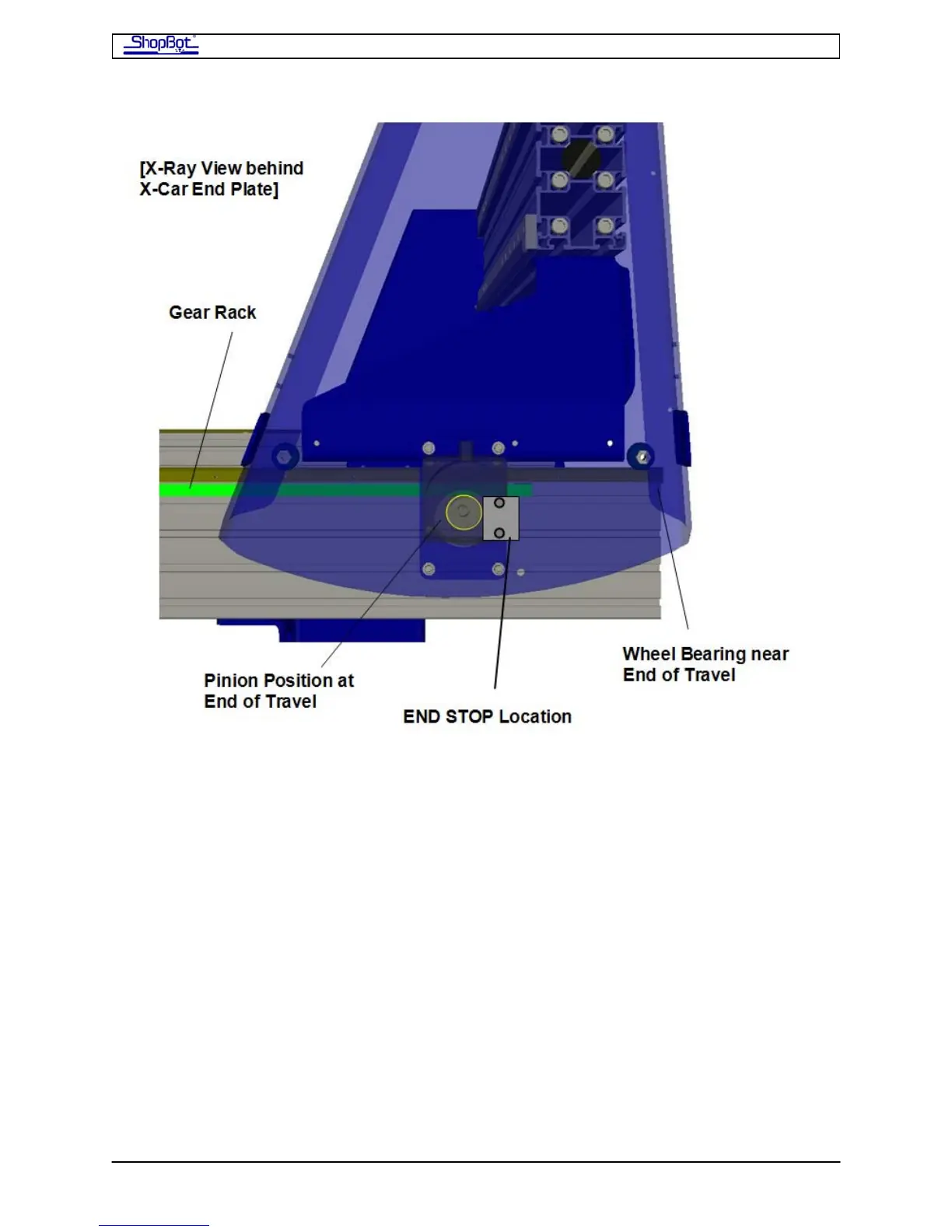

• Slide the Mechanical Stops into the track and up against the pinion on each rail. Then
push the car back.
• Tighten the stops in position.
• Move the X-Car to the other end of the table and set the other stops.
• When you later fine tune the square of your tool, you may do a final adjustment of
the position of the X-Car end stops. See section on Squaring.
Run the X-2 Motor Cable through the Aluminum Beam
The X-2 cable from the motor on the front side of your ShopBot runs through the X-Car
aluminum beam to the back side of your ShopBot before going to the Control Box.
• Run it through now by starting the connector through and then feeding the rest of
the cable.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
