ShopBot PRS Assembly Manual Page -46

Secure cables and wiring

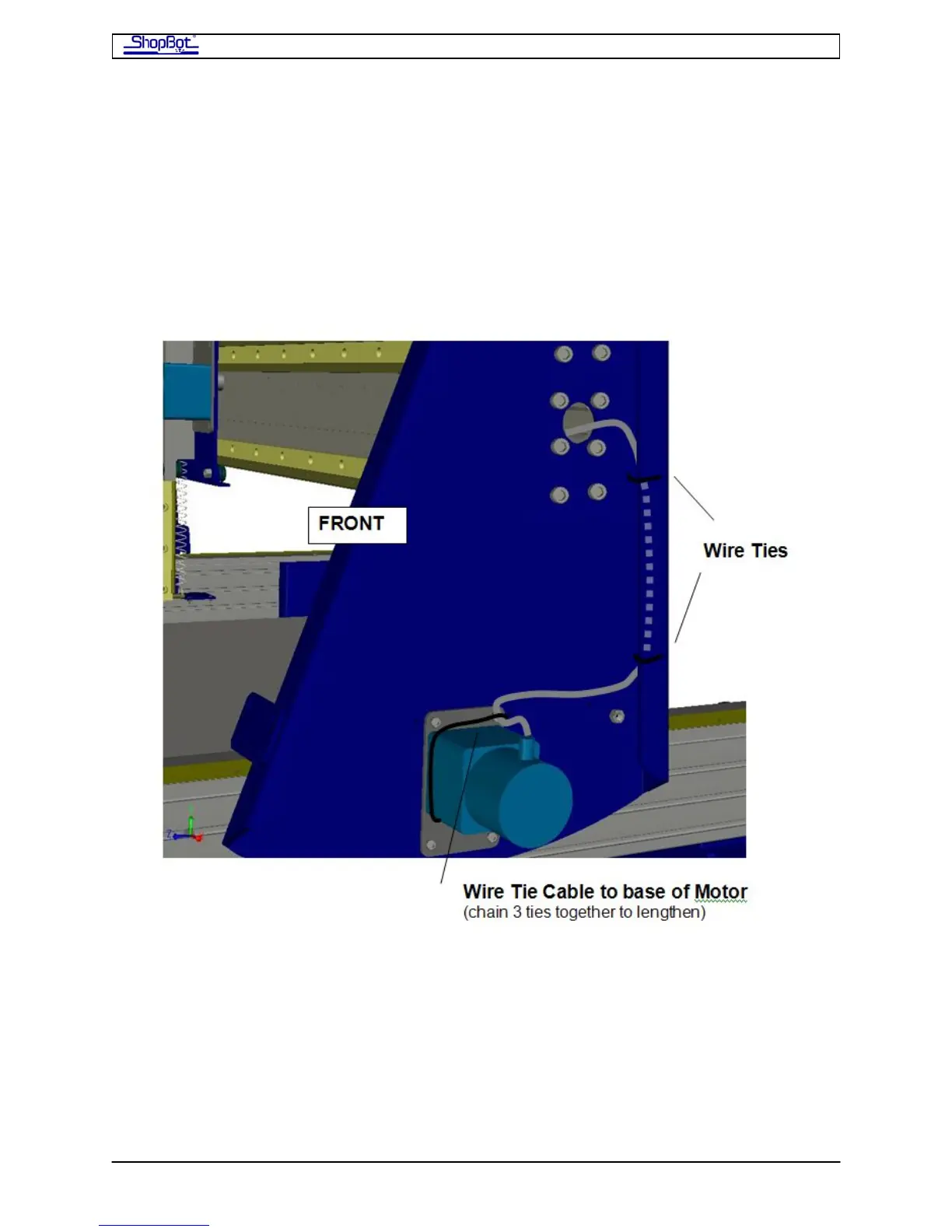

Use a chained wire tie (link 3 standard wire ties together) and secure the X-2 Motor

Cable to the base of the X-2 Motor.

Run the cable to the back side of the front End Plate, and secure it with two wire ties

behind the back lip of the plate.
