ShopBot PRS Assembly Manual Page -41
PRS Y-axis EChain Installation
Doc#330
This document shows how to install the Energy chain (Echain) on the Y-axis on ShopBot PRS
and PRS BT models. Note that the dust collection hose from the ShopBot Dust Skirt must be
routed overhead when an Echain is installed; the Y-upper Echain bracket has a fixed
attachment point for the dust collection hose.

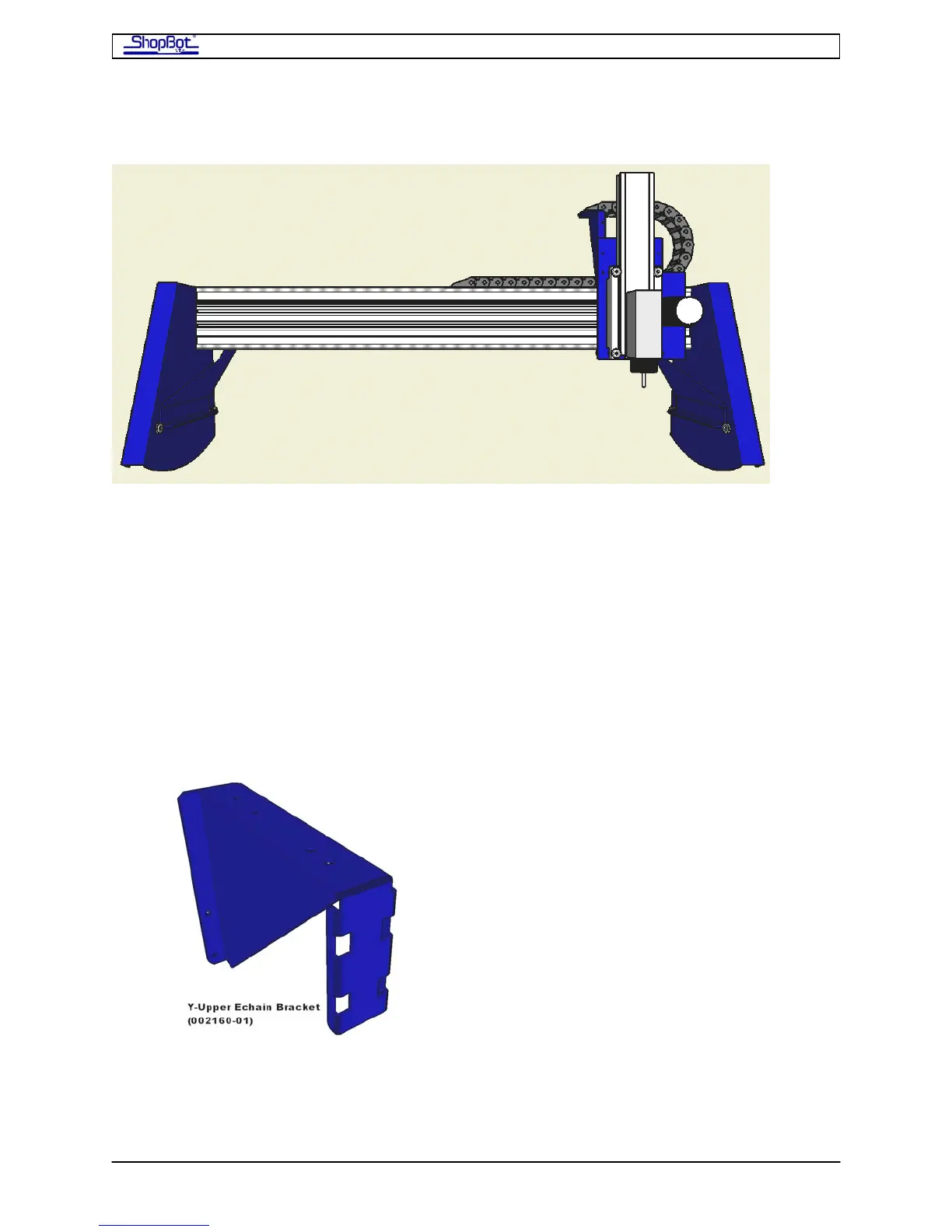

The Y-axis Echain Components
The Y-axis Echain has three main components and a few specialized pieces of hardware.
The Y-upper Echain bracket (002160-01)
mounts to the back of the YZ-car and carries
the Echain. Hose clamps in the slots of the
tab support the dust hose. This bracket is
mounted on either the left (PRS) or the
right (PRS BT) of the YZ-car if you are
looking at the spindle head on.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
