ShopBot PRS Assembly Manual Page -25
Putting the X-Car on the Rails and Using it to Align the Rear
X-Rail

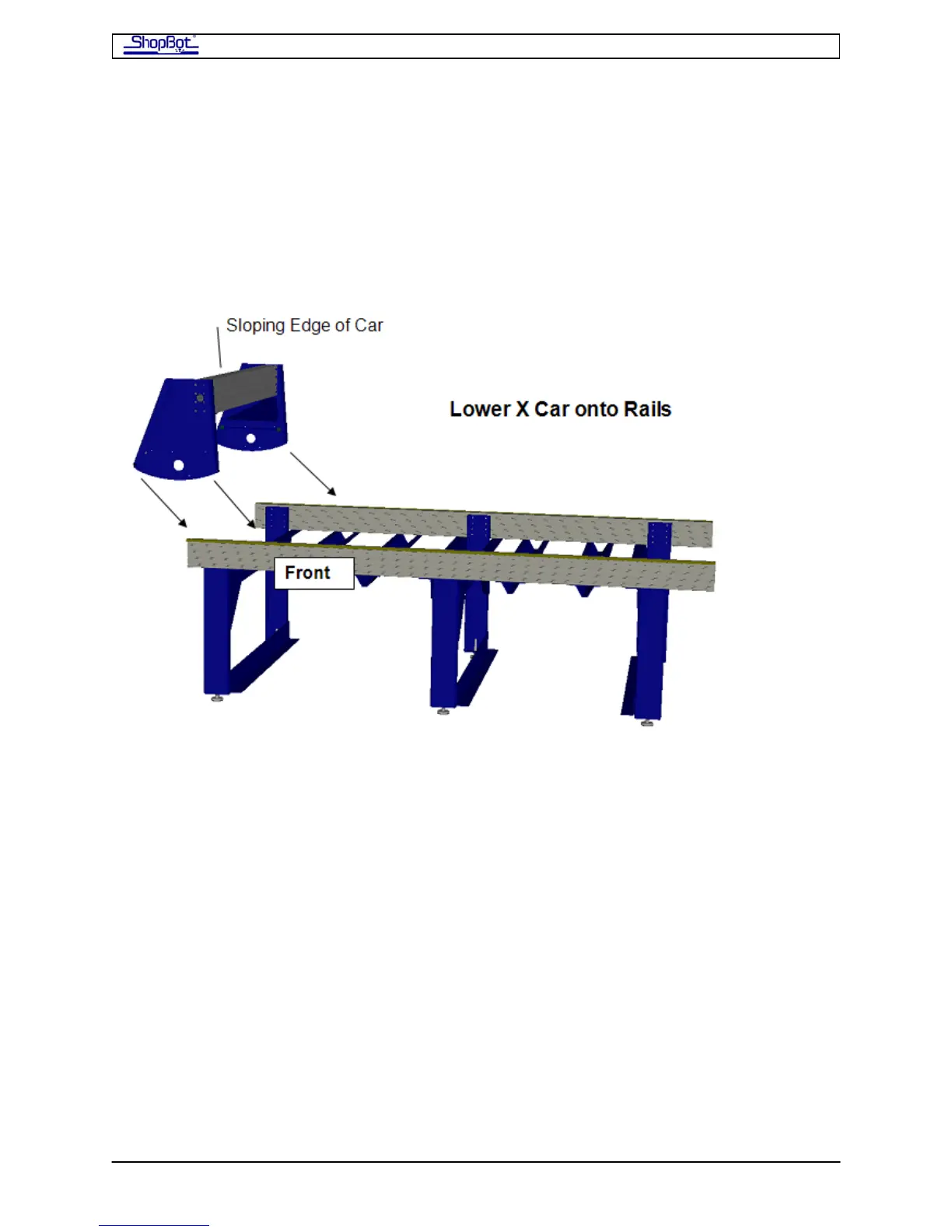

Lower the X-Car onto the X-Rails
The X-Car is fully assembled and ready to be placed on the rails. This is a 2-4 person
operation as the car is HEAVY! Note that the car goes on the rails so that the sloping edge
of the X-Car faces towards the left when you are at the front of the tool.
• As you put the car in position, seat the wheel bearings on the front side X-Rail and
then place the rear bearings over the rear X-Rail. You may find it easier to lay the
Car over on its back first, with the beam across the rails and engaging only the
bearings on the back of the X-Car. Then, when you are ready, you can stand it up
and engage the wheel bearings on the Car’s front end. You may need to loosen the
rear X-Rail at this point and adjust it slightly so that the bearings come into exact
alignment.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
