ShopBot PRS Assembly Manual Page -54

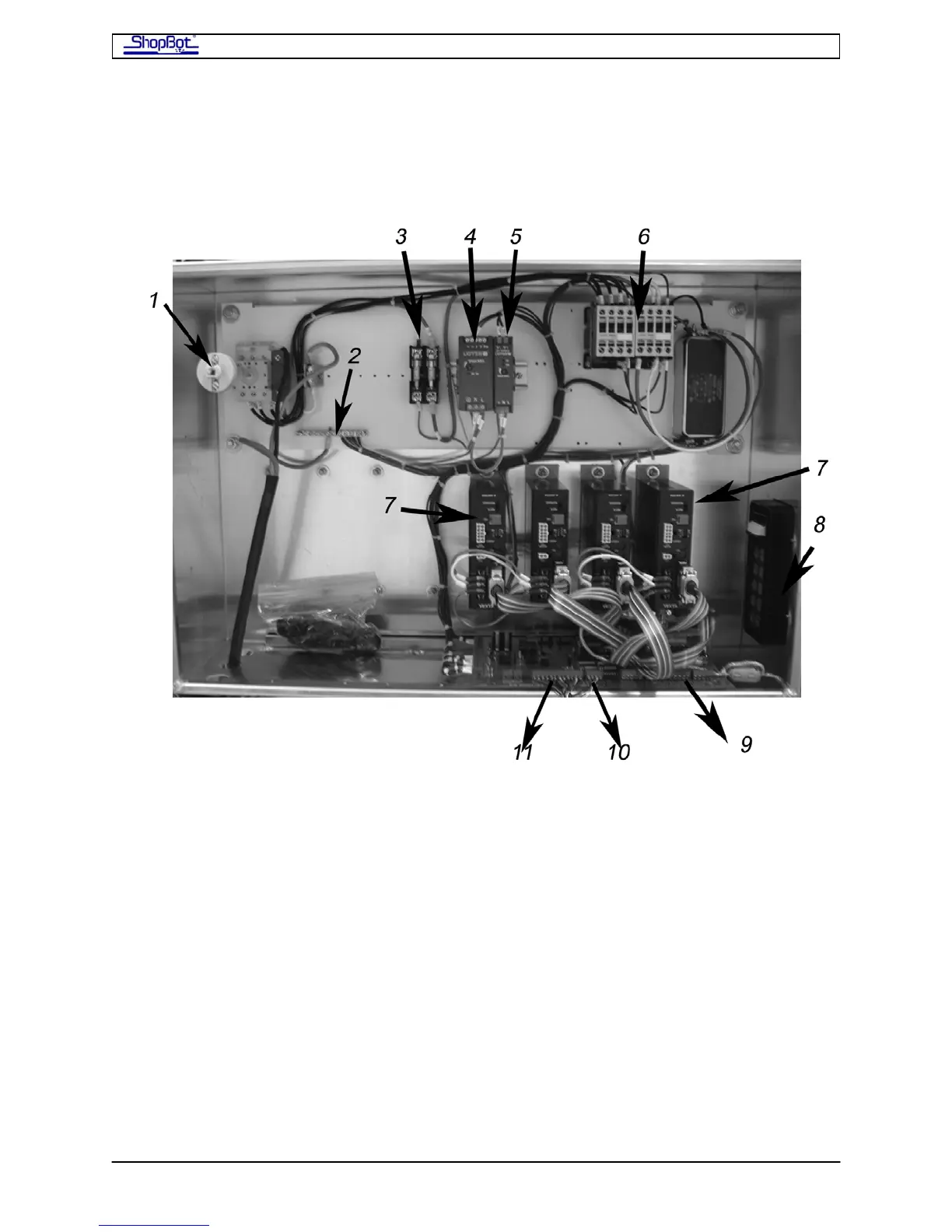

Inside the PRSalpha Control Box
Your box may not be exactly the same as illustrated depending on the model.
1. Disconnect switch
2. Grounding strip
3. Fuses
4. 24v Power Supply
5. 12v Power Supply
6. Contactors
7. Motor drivers – 4
8. Roxtec Fixture
9. Inputs/Outputs
10. to separate E-stop switch
11. to 3-Button Pendant
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
