ShopBot PRS Assembly Manual Page -57

Installation

Run the cables from the 3-Button Pendant and the separate E-stop switch into the PRSalpha

Control Box through the Roxtec opening and plug in the terminal blocks as shown below.

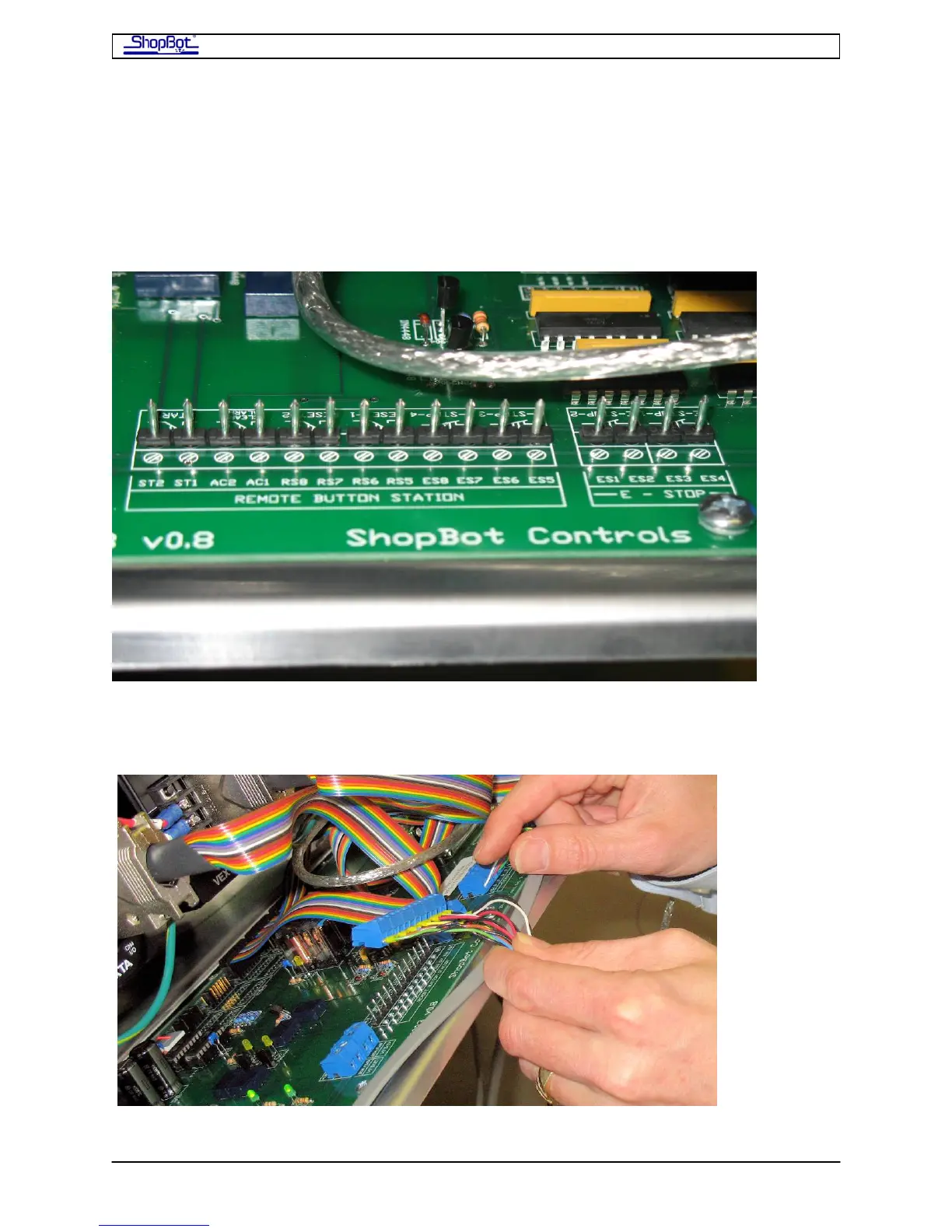

Below: The PRSalpha Control Box before the terminal block from the 3-Button Pendant is

attached. Note that the terminal block for the separate E-Stop has not been attached yet.

Below: The terminal block from the separate E-Stop has been plugged in and the 3-Button

Pendant block is being positioned.
