ShopBot PRS Assembly Manual Page -58

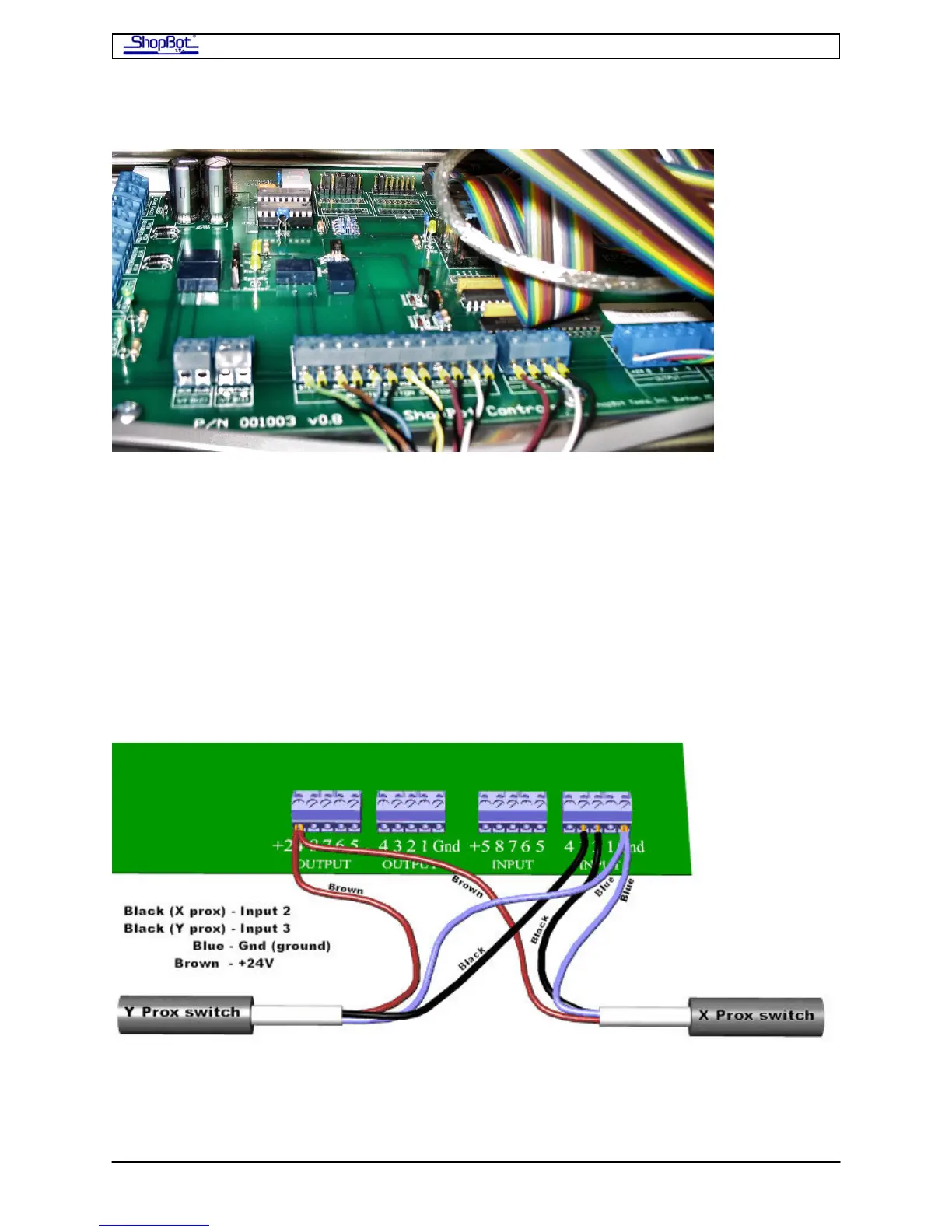

Below: Terminal blocks from the 3-Button Pendant and from the separate E-Stop in place.
Connect Cables from the Proximity Switch and Z-zero Plate
Run the cables from the proximity switches and the Z-zero plate through the Roxtec
opening into the PRSalpha Control Box.
Inside the PRSalpha Control Box, take the Proximity Switch cable for the X-axis and place
its black wire into Input 2 on the blue terminal block on the control board. Then take the
Proximity Switch cable for the Y-axis and place its black wire into Input 3 on the same blue
terminal block on the Control Board. The blue wires from both of the switches are placed in
Gnd (ground). The brown wires from both of the switches will be placed in the +24V
position on the blue output terminal block. Note that the terminal blocks can be removed to
make wire insertion easier.
When the PRSalpha Control Box is powered up a red LED in the body of the proximity switch
out on the tool will stay bright until it is triggered by coming near a target.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
