ShopBot PRS Assembly Manual Page -8

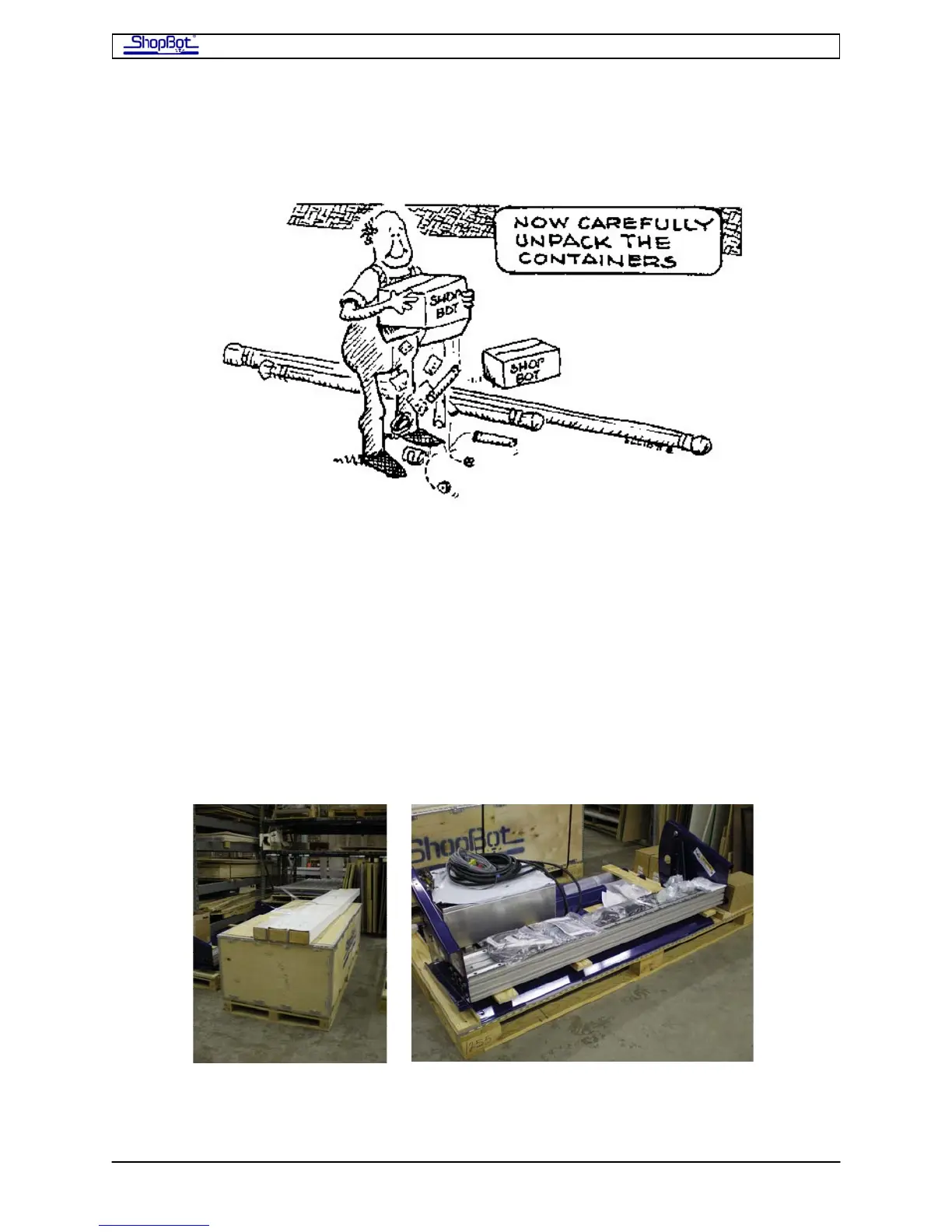

Unpacking and Getting Your Work Area Organized:
You will receive a large shipping crate with the already-assembled X-Car and YZ-
Car. One of the large cartons inside the crate holds the ShopBot Control Box. The motors
and motor cables are packaged together. The long package with the rails and table sides
will usually be strapped to the top of the shipping crate.
You can unpack the rails and cars so that you can identify them and have them ready. Be
careful not to damage the gear rack on the bottom of the rails. Unpack and lay out the parts
bags on your work surface.
Don't worry about the Control Box for the moment; you can set it aside until we're ready to
connect your ShopBot.
We've pre-assembled most components of your tool to make things go a little more
smoothly. In many places, bolts or hardware are loosely fit in place to show you their
intended location; you may have to remove them to attach the part.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
