ShopBot PRS Assembly Manual Page -16

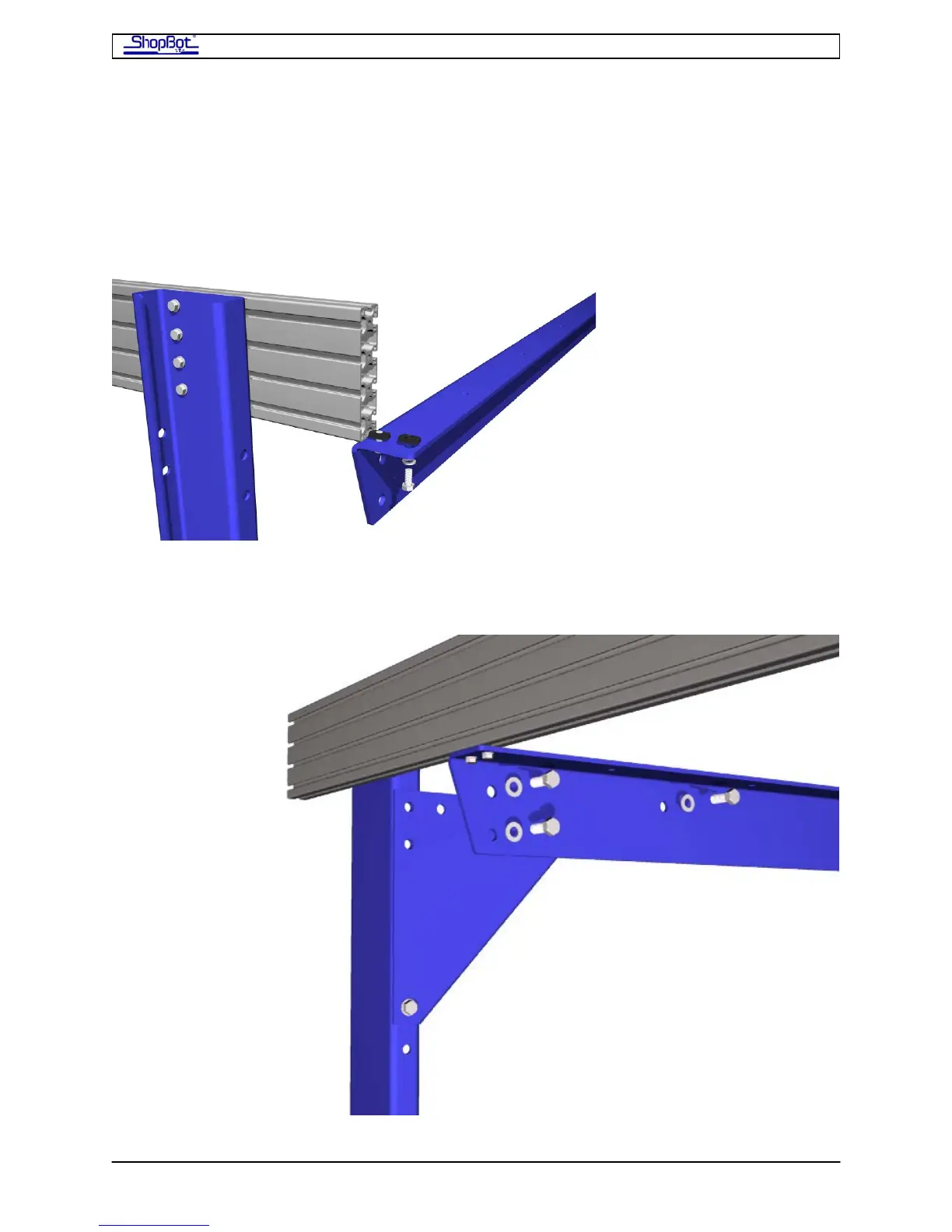

Step 1.3: Attach the First Upper Table Support
Attach the first Upper Table Support to the end of the table. Start it on from the side with
the temporary outside leg. Slide the T-nuts for the Upper Table Support into the bottom
channel of each Table Side on the far end. Then slide the Support all the way down and
close to the Table Leg, leaving approximately 3/16” between the leg and the upper support
for the Gussets.
Insert the Gussets between the Table Legs and the Upper Table Support and attach using
½” Hardware Assemblies.
