ShopBot PRS Assembly Manual Page -17

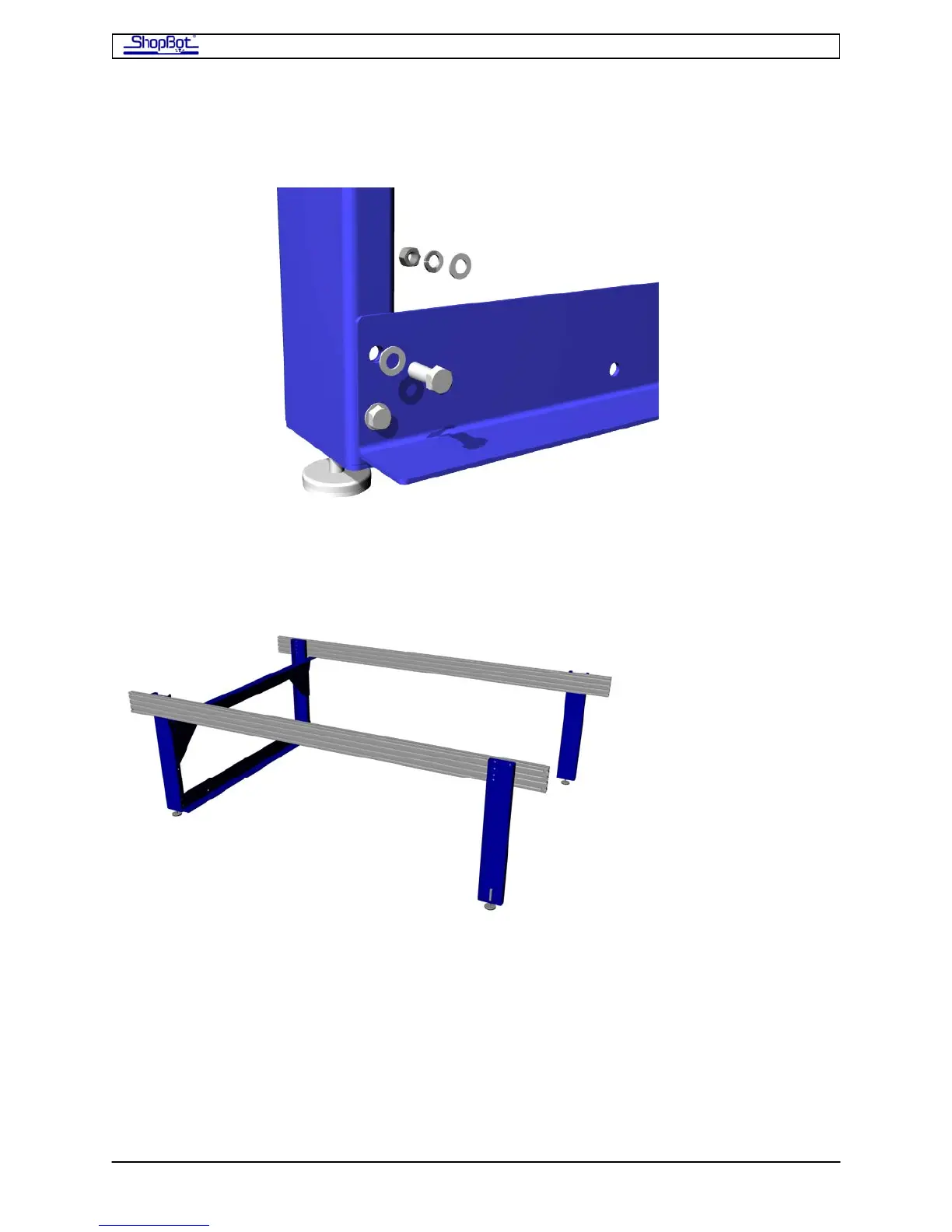

Attach the Lower Table Support to the bottom holes in the Table Legs using ½” Hardware

Assemblies.

Lower Table Support showing attachment to Table Leg.

Your table should now look like this:
