ShopBot PRS Assembly Manual Page -7
Assembling Your ShopBot

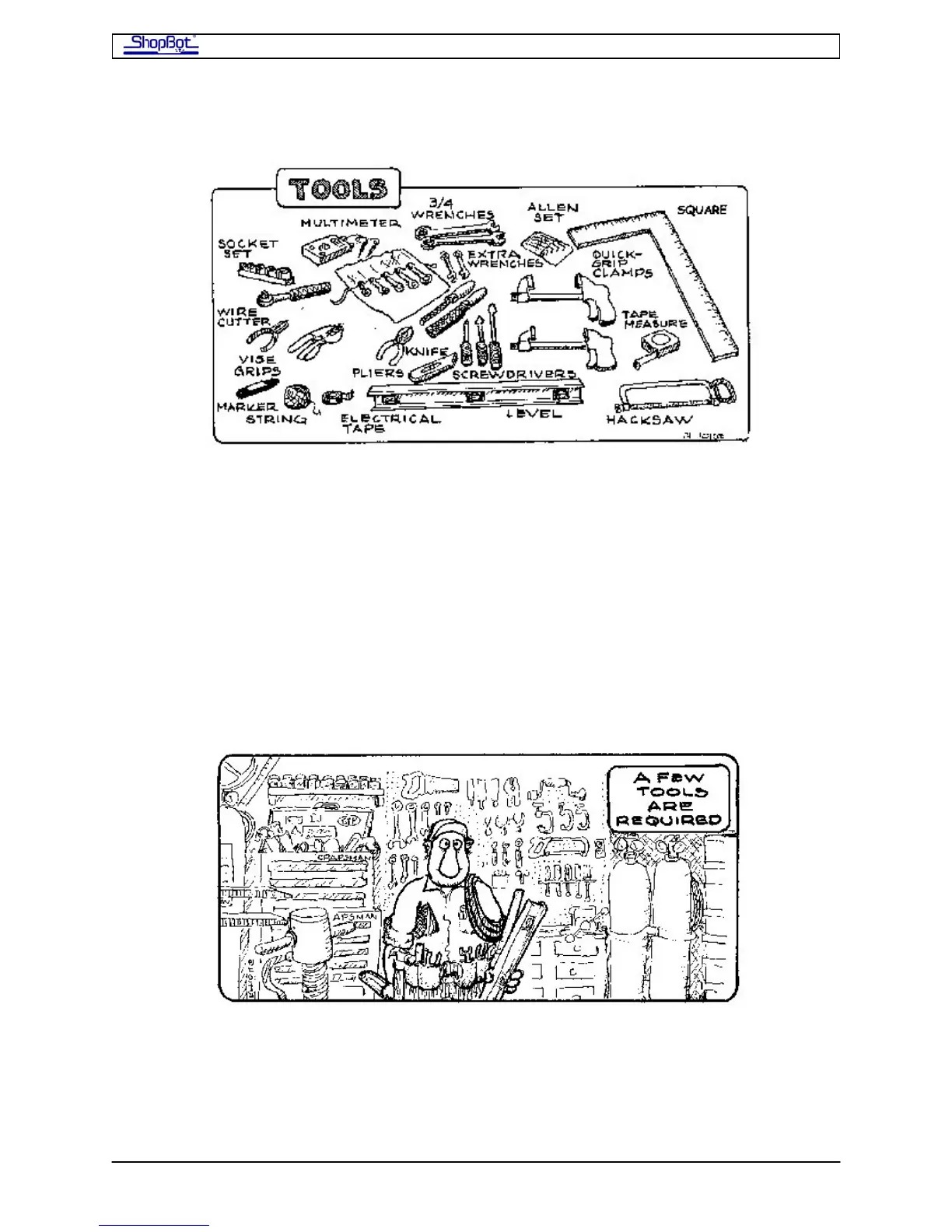

Tools You Will Need
• a wrench set with TWO wrenches of the following sizes 7/16”, 1/2”, 9/16”, and
3/4”(the type with box end on one side and open end on the other works well).
• a socket wrench set with a 6” extension
• an Allen wrench set
• a drill for a couple of holes in the sheets of material you will use for your table
surface (say 1/4” and 7/16”)
• a good tape measure, a carpenter's square, and a level (a six foot one that you can
use for a straight edge would be good)
• several Quick Clamps or large C-clamps to temporarily hold things and act as STOPS
• Misc: the odd screwdriver, adjustable wrench and pliers, utility knife, electrical tape
(in a color that you can mark on) or masking tape, marking pen, your wits, etc.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
