ShopBot PRS Assembly Manual Page -19
Step 1.5: Working on the other End of the Table where the Legs are
still temporarily attached to the Outside of the Table Sides

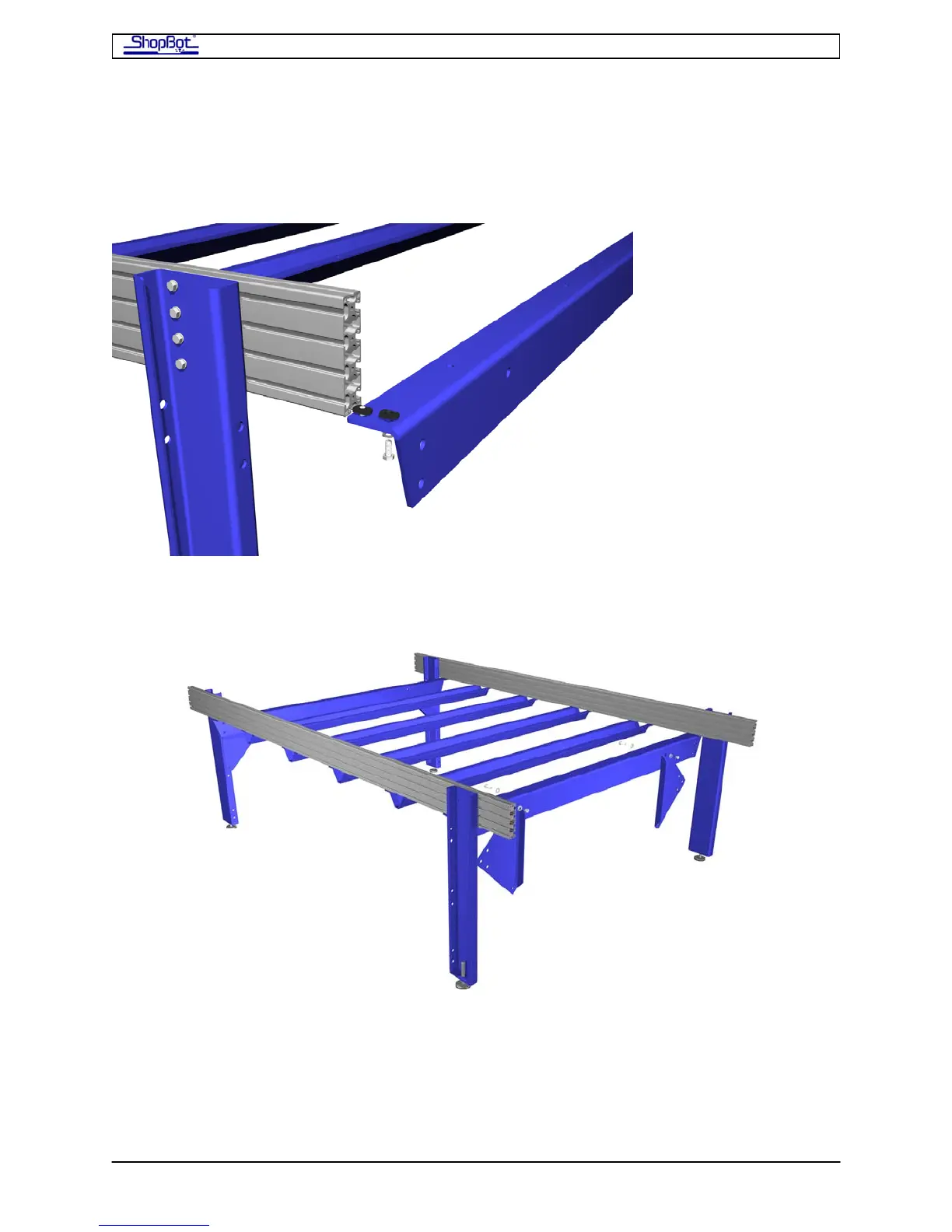

Install 5/16” Hardware Assemblies on the Upper Table Support and slide it into position.
Notice that the lead edge of the support inserts first, this time
Attach the Gussets on this end to the Upper Table Support . Use ½” Hardware Assemblies.
Your table should look like this.
Move these Table Legs to the inside.
Attach the Lower Table Supports to the bottom holes in the Table Legs using ½” Hardware
Assemblies. Attach remaining bolts on gussets.
Your table should now look like this:
