ShopBot PRS Assembly Manual Page -39

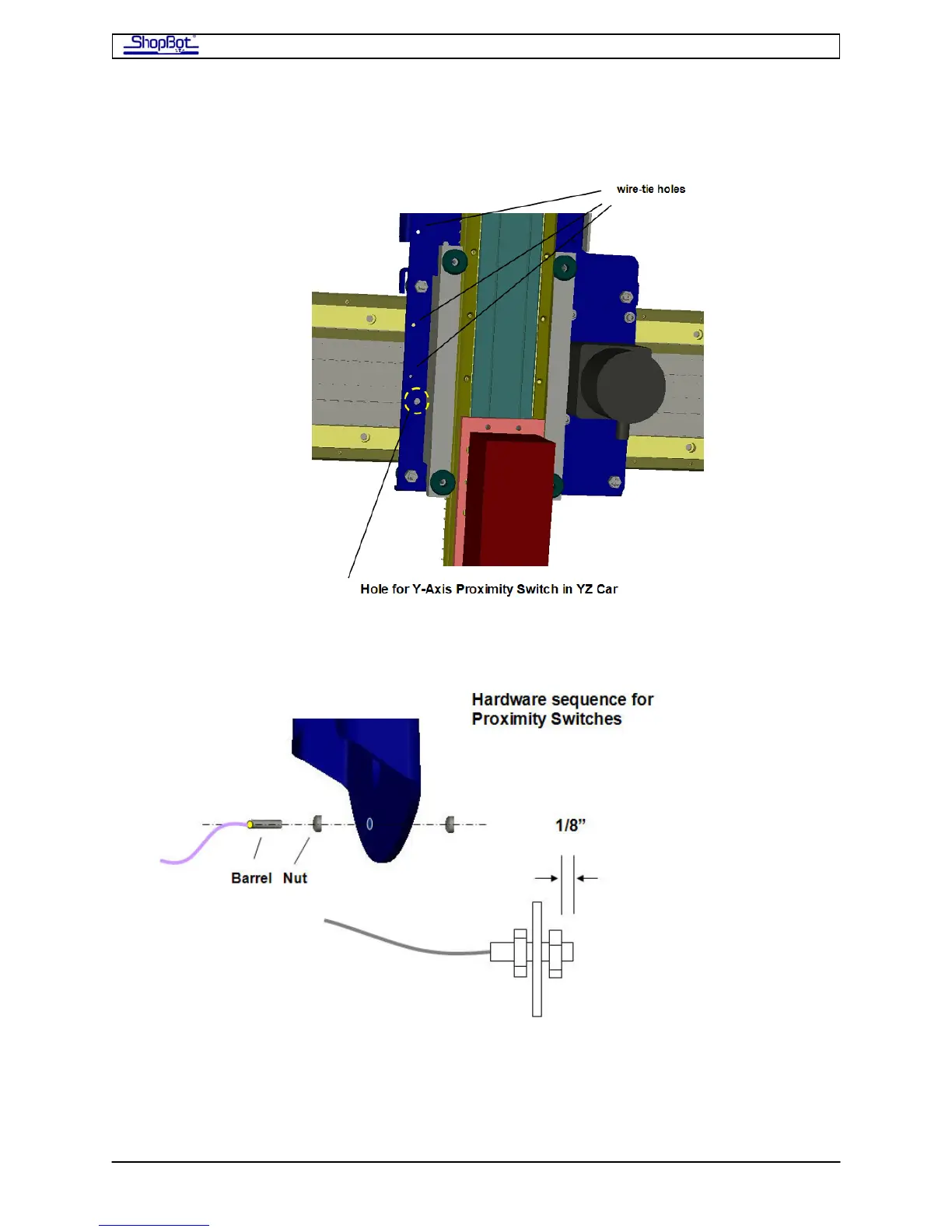

• Mount the second Proximity Switch (for the Y Axis) through a hole on the left side of
the YZ-Car.
•
•
Y-axis Targets
Look at the front side of the Y-Axis Beam on the X Car. You will see t two bolt heads
sticking up in the grooves between the two rails. These are the targets for the proximity
switches (the switches work by electrical induction).
