ShopBot PRSalpha - Installing the Gantry; Installing the X-Rails and Getting One Rail Straight; Slide the X-Rails Onto the Table; Set the Front Side X-Rail and Check for Straightness

ShopBot PRS Assembly Manual Page -23
Installing the Gantry
Installing the X-Rails and Getting One Rail Straight

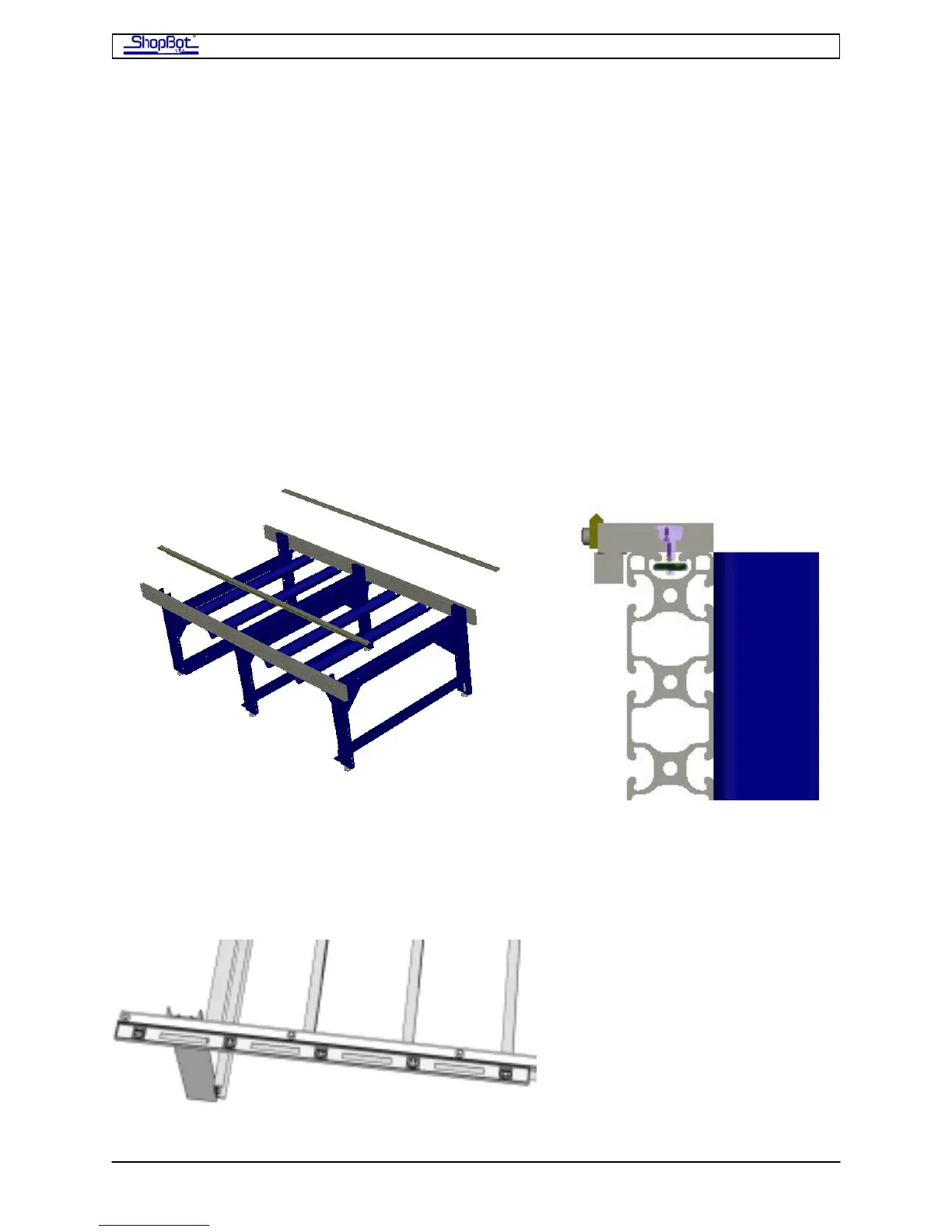

Slide the X-Rails onto the Table
• Mount the X-rails with 5/16 bolts and T-nuts. Slide these nuts into the top track of the
table sides as you did with the table legs and cross supports.
• After you get both rails in position, hand-tighten the bolts.
• BE CAREFUL SLIDING THE RAILS ONTO THE TRACK. IT IS VERY EASY TO PINCH
YOUR FINGERS WHEN INSERTING THE NUTS INTO THE TRACKS AS YOU SLIDE
THE RAIL ON.
Set the Front Side X-Rail and Check for Straightness
