ShopBot PRS Assembly Manual Page -37
After Mounting the Router/Spindle
Now you will run the wire for motors and accessories and do a little tidying up, then you’ll
be ready to plug in your tool, test it out, and put it to use. We will use a lot of wire-ties in
this step, so in addition to your other tools, get the wire-tie bag handy and a set of nippers
to trim them with. If you have never done it before, note that if you need to cover a long
distance with ties, you can piggy-back 2 or 3 of them together to create a larger loop.
Wheel Guards
The guard plates are universal and come in a package of 7; others will be used below. You’ll
find all the hardware in a packet

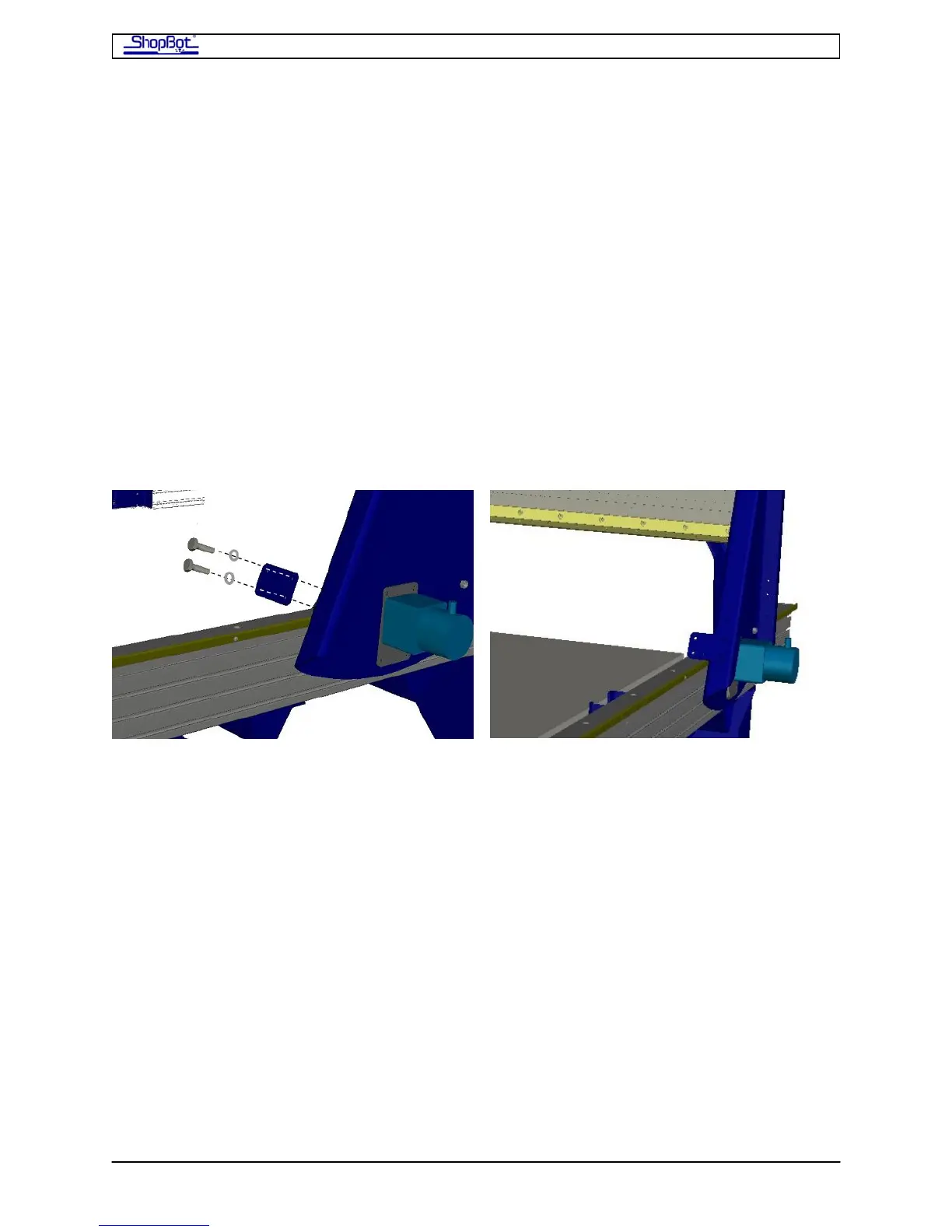

Put all 4 of the Wheel Guard plates on now. Mount a Wheel Guard on the leading and
trailing edges of each X-Car End Plate outside each of the 4 Wheel Bearings. Attach to the
End Plates using two, ¼” socket-head bolts and lock washers.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
