ShopBot PRS Assembly Manual Page -15
hold the pieces securely in place. Keep in mind that you will want to tighten all nuts
securely at the end of the table assembly when you square the table. If you tighten all
fasteners too much now, you won’t be able to square the table later.

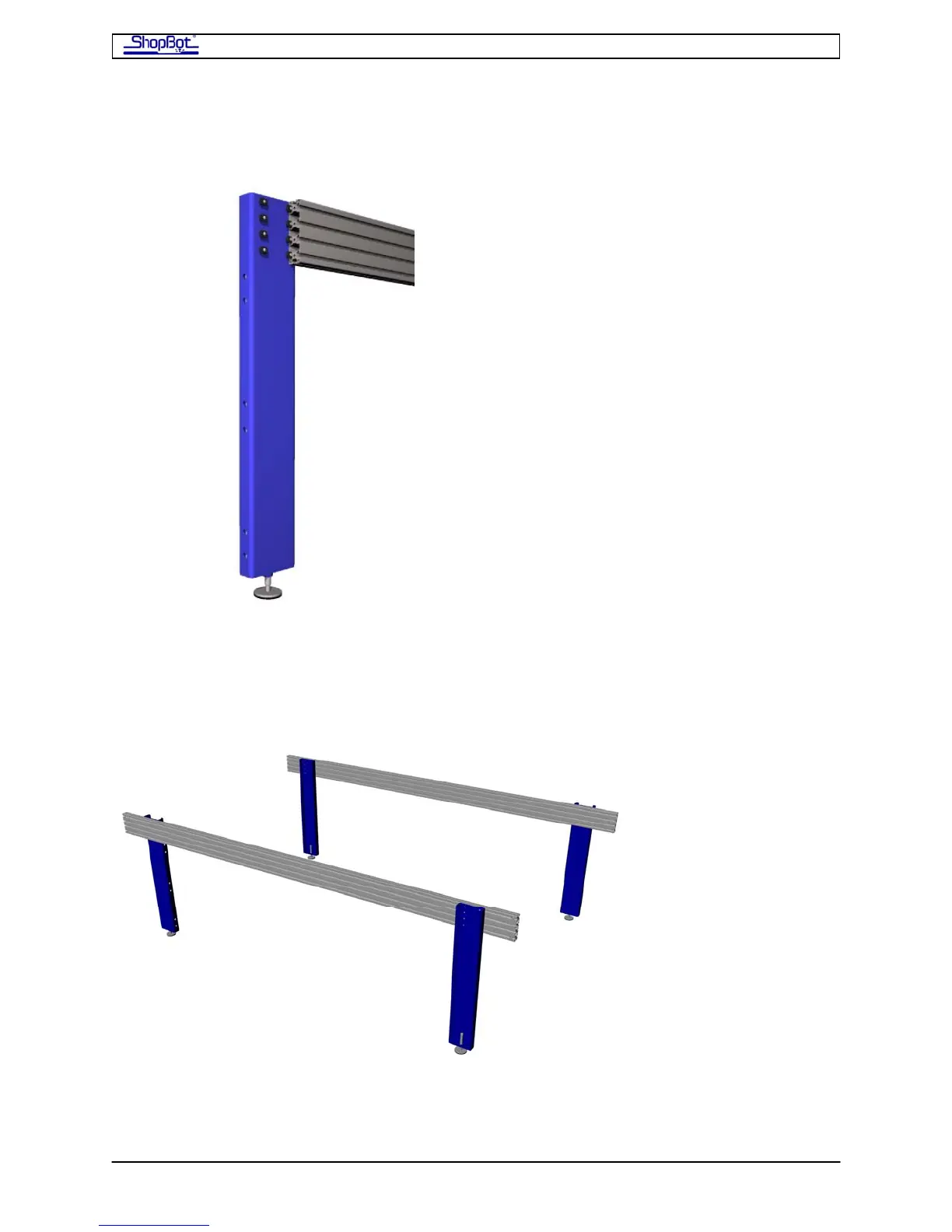

Temporarily attach the other Table Leg to the outside of the Table Side. This leg will be
moved to the inside of the table in Step 1.4.
Repeat for the other Table Side. Use saw horses to temporarily support the side assemblies
as you continue.
Table Sides with legs attached
