ShopBot PRS Assembly Manual Page -45

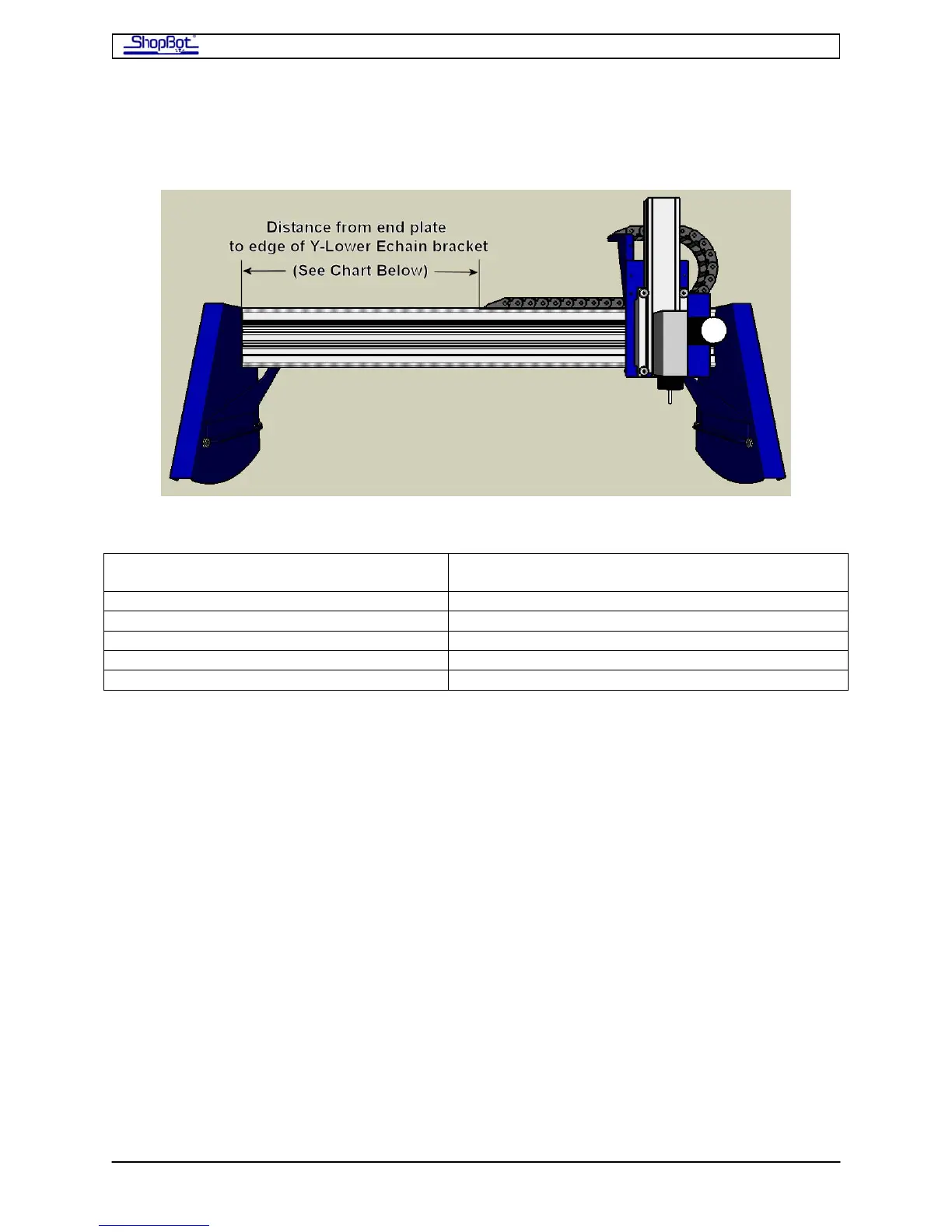

Chart showing distance from End Plate to edge of Y-Lower Bracket
Cutting width in Y-axis
(Beam length)
Distance between end plate and Y-lower
bracket
32in (47.992in or 1219mm) 22.50in (572mm)
48in (66.338in or 1685mm) 31.50in (800mm)
60in (78.346in or 1990mm) 37.50in (953mm)
72in (90.354in or 2295mm) 43.50in (1105mm)
108in (126.456 or 3212mm) 61.50in (1562mm)
After the Echain is installed, move the Y-axis back and forth the full extent of travel. The
Echain should at no time feel as though it is binding or under tension. If this appears to be
the case, loosen the 5/16-18 flat heads and adjust the Y-lower bracket slightly.
