ShopBot PRS Assembly Manual Page -48
Connecting Overhead Dust Collection

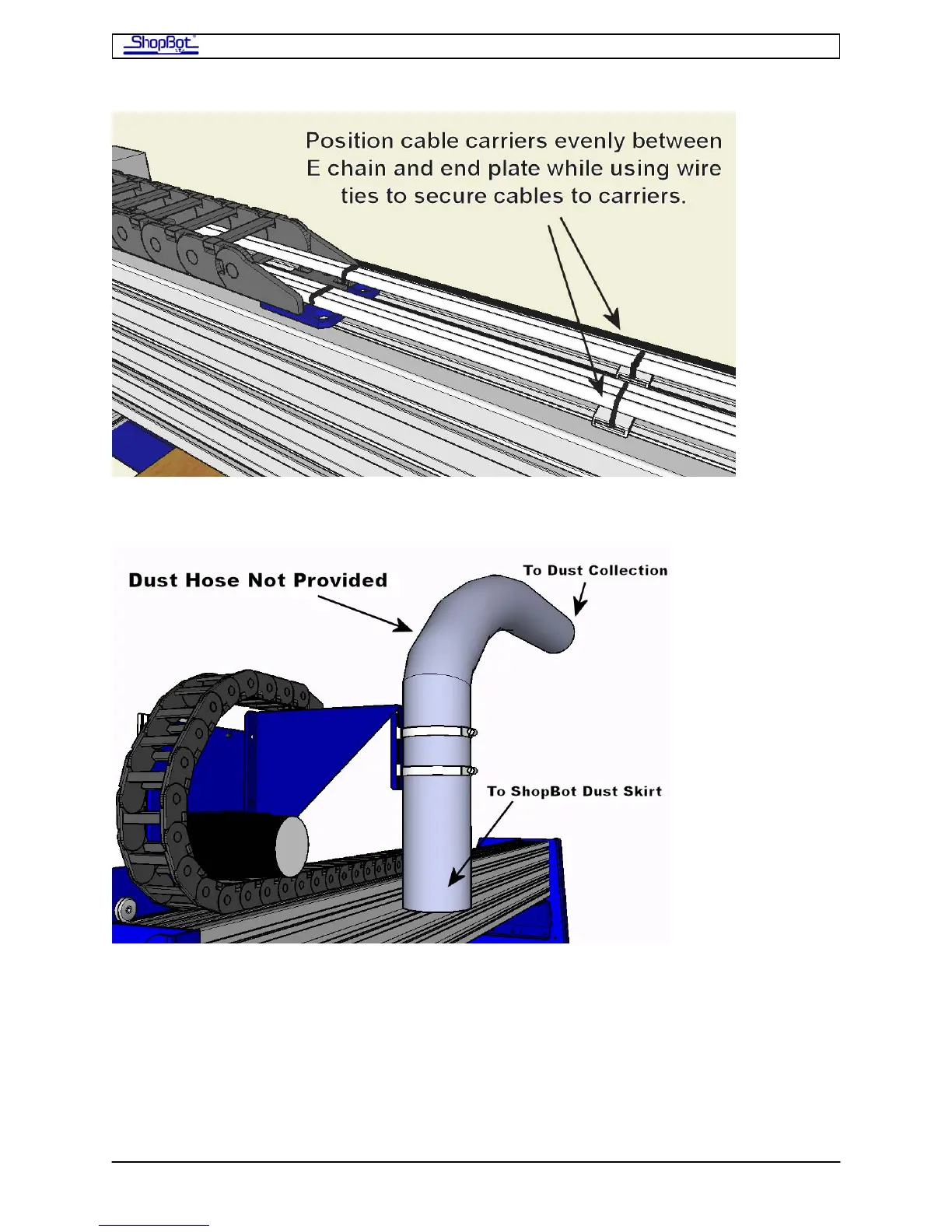

The Y-upper Echain bracket has a tab that comes with two hose clamps to hold a 4”
overhead dust collection hose. Neither the hose nor the dust collection system is provided
by ShopBot. Extend the length of the overhead dust hose to the ShopBot dust skirt and
connect the dust skirt. For more information about the installation and use of the dust skirt,
please see Installing the PRS Dust Skirt (SBG00326DustSkirtPRS). Make sure that there
is enough hose to accommodate the lowest position of the Z axis, then secure the hose to
the Y-upper Echain bracket with the provided hose clamps.
PRSAssembly080922.doc Copyright 2007,2008 ShopBot Tools, Inc
