6.3.3 Patient circuit connections
Patient circuit supporting arm
Insert the patient circuit supporting arm in
the apposite bracket, fixed to the full-height
steel rod used for accessories mounting.
Patient circuit connections
Use a patient circuit suitable
for the patient to ventilate.
Tidal Volume Set of hoses
< 50 mL
Neonatal
from 50 to 200 mL paediatrics
> 210 mL adults

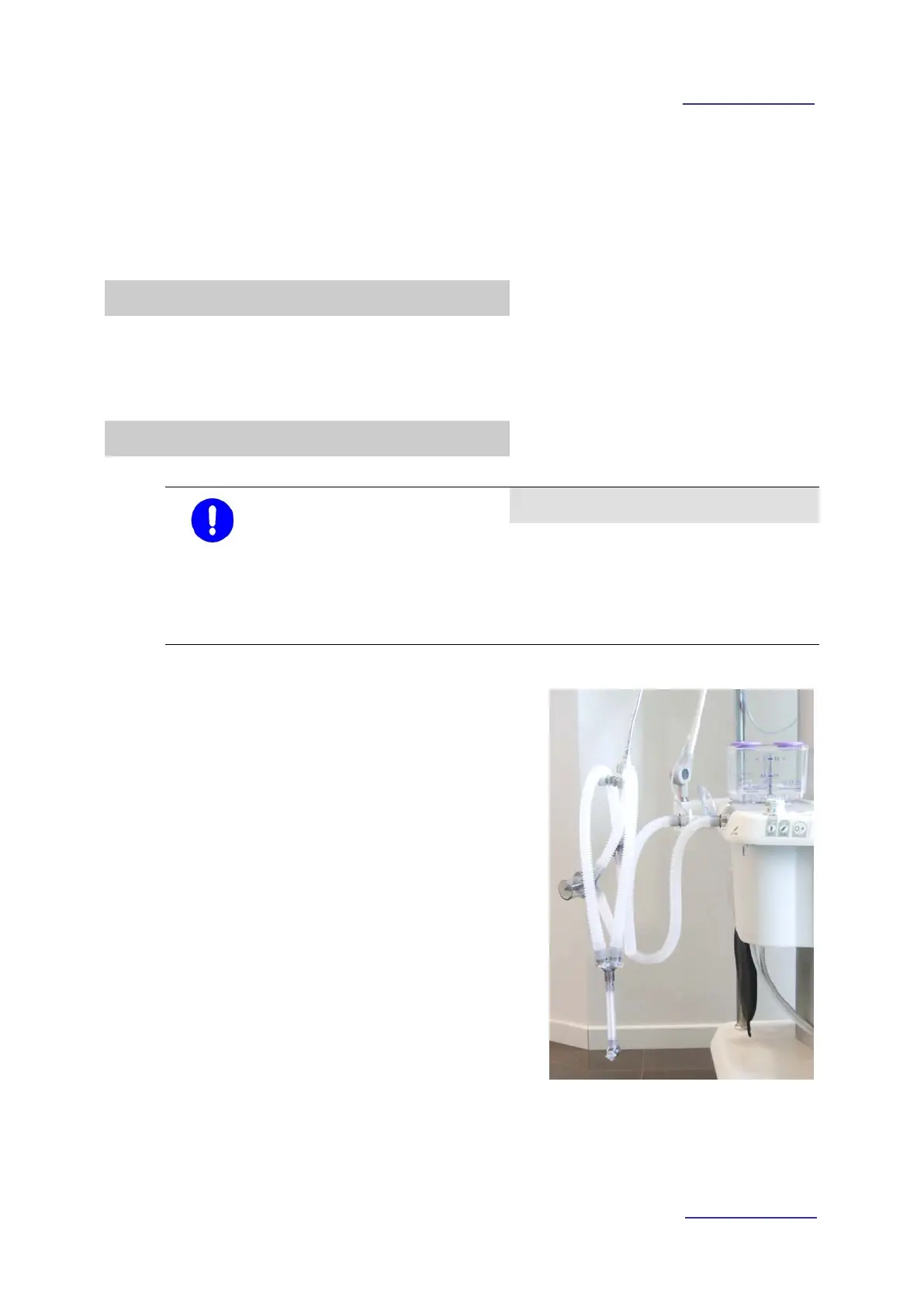

Connect the supplied patient circuit to the
apposite INS and EXP connectors (flow
sensor) on the valves group.
Position the patient circuit on the patient
circuit supporting arm.
