Description
User’s Manual, DU3310103-MRI / rev. 3 - 02.05.2015
2-3
2.2 Trolley
The Morpheus trolley is composted by a mechanical structure with light aluminium
alloy uprights and a steel base; it is foreseen also a steel vertical rod for fixing all
patient monitoring and other accessories useful for anaesthesia unit operation.
• The pedestal base is realised in shock-proof ABS and polyester coated.
• The work-shelf is mono-bloc, and includes: the housing for the valves group and
the manual ventilation controls and a large handle below the perimeter allows to
hold and easily move the unit.
• On the back left side are the medical gas intakes and the electric power supply
part.
2.2.1 Support for vaporizers

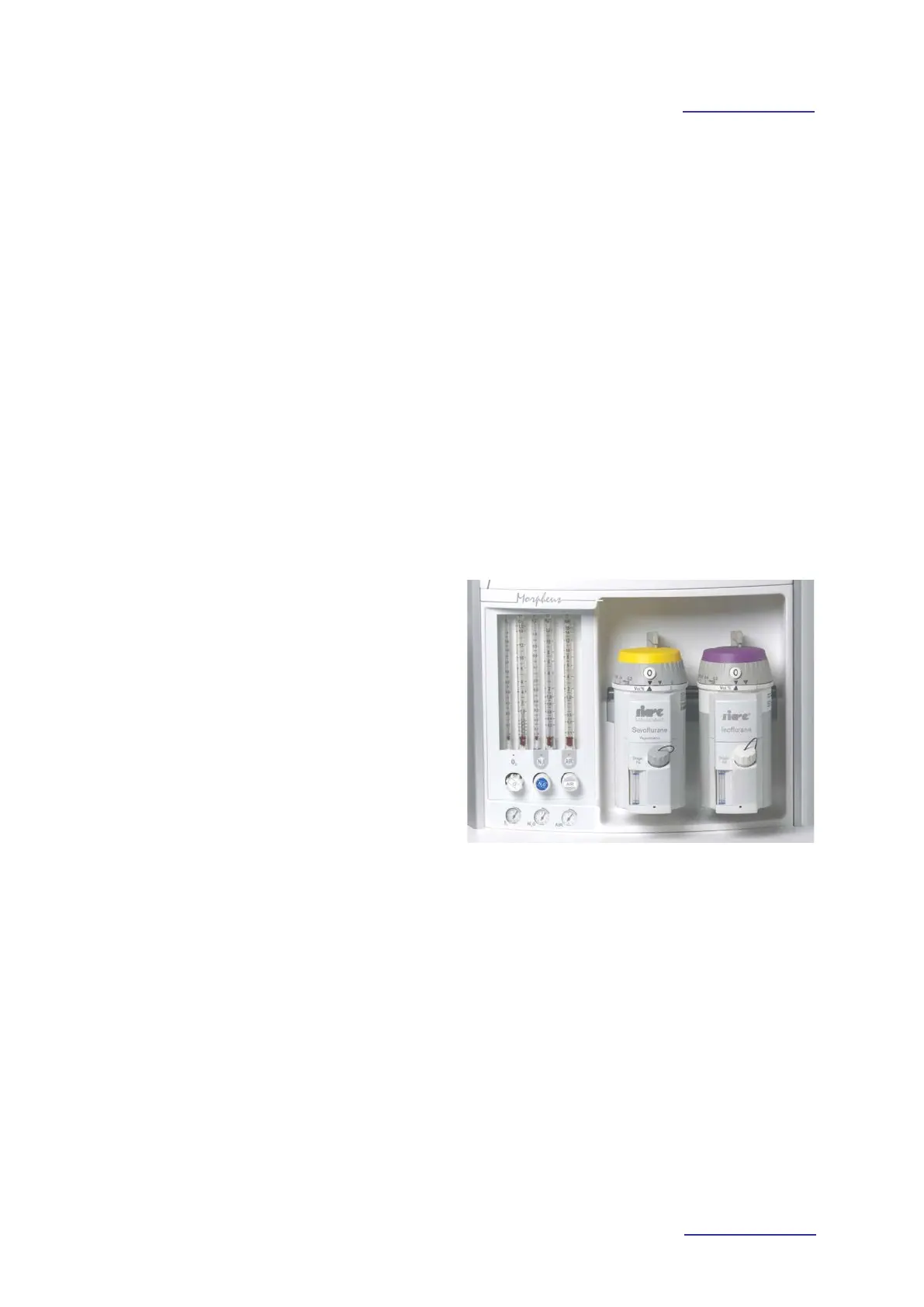

On the front side of the anaesthesia
unit there is an horizontal mono-bloc
for rapid fixing of two vaporizers.
The device for coupling and
uncoupling of the two vaporizers is a
SIARETEX rapid type, Selectatec
compatible.
