Siare Morpheus Series - Alarms Visualization

Alarms: AD.A module
User’s Manual, DU3310103-MRI / rev.3 - 02.05.2019
8-5

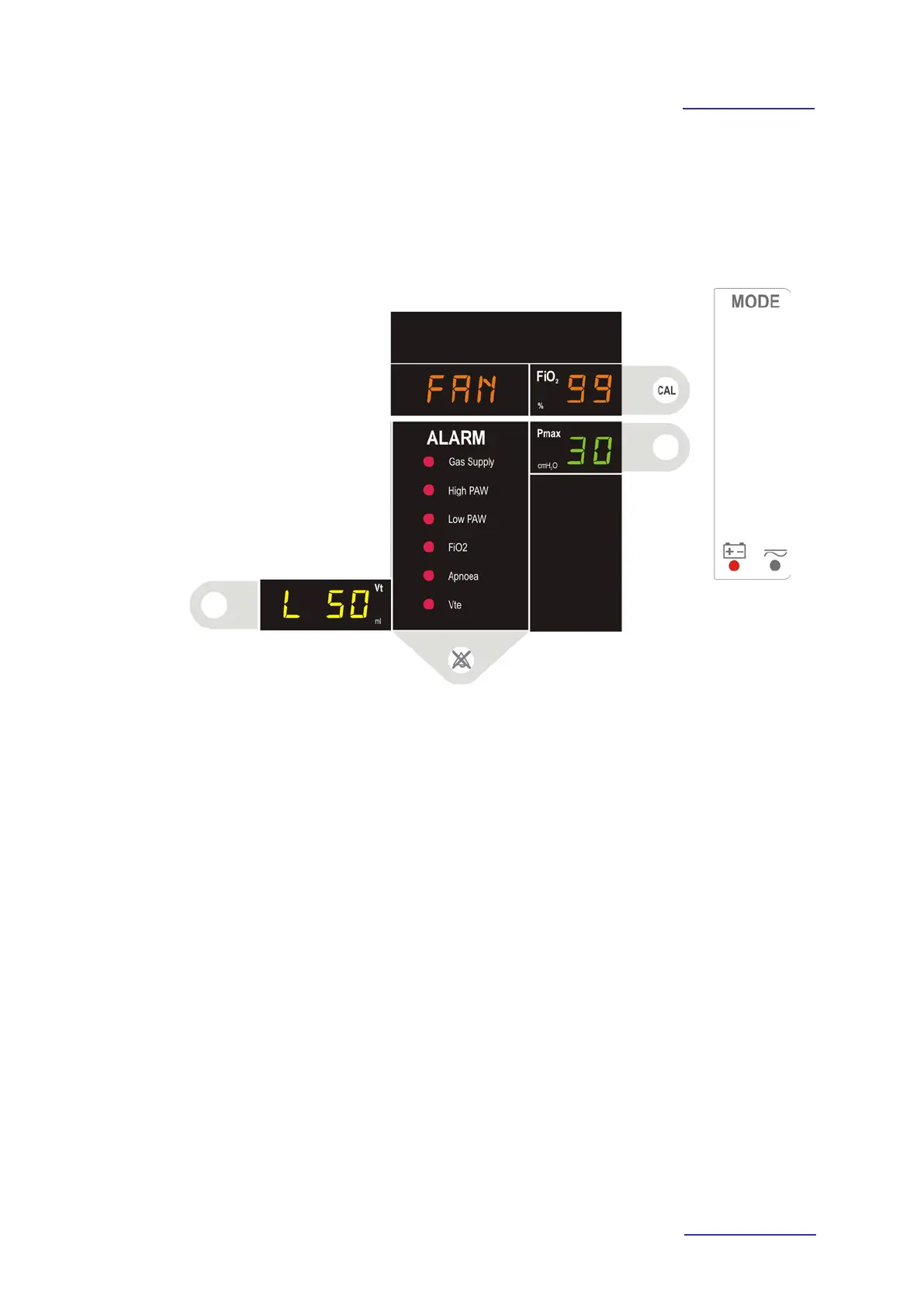

8.3 Alarms visualization
FAN
Not operating fan It is displayed during the Self Test phase
at ventilator start-up.
Gas Supply No gas supply It is activated when the gas pressure is
under 2,4 bar
High PAW High airways pressure VAC : it can be set through Pmax
parameter
PVC : when it overcomes the pressure
limit of 5 cmH
2
O set through the Pmax
parameter
Low PAW Low airways pressure Fixed value: it is activated when the
pressure is equal or lower than 5 cmH
2
O
