Valves group
User’s Manual, DU3310103-MRI / rev.3 - 02.05.2019
3-5

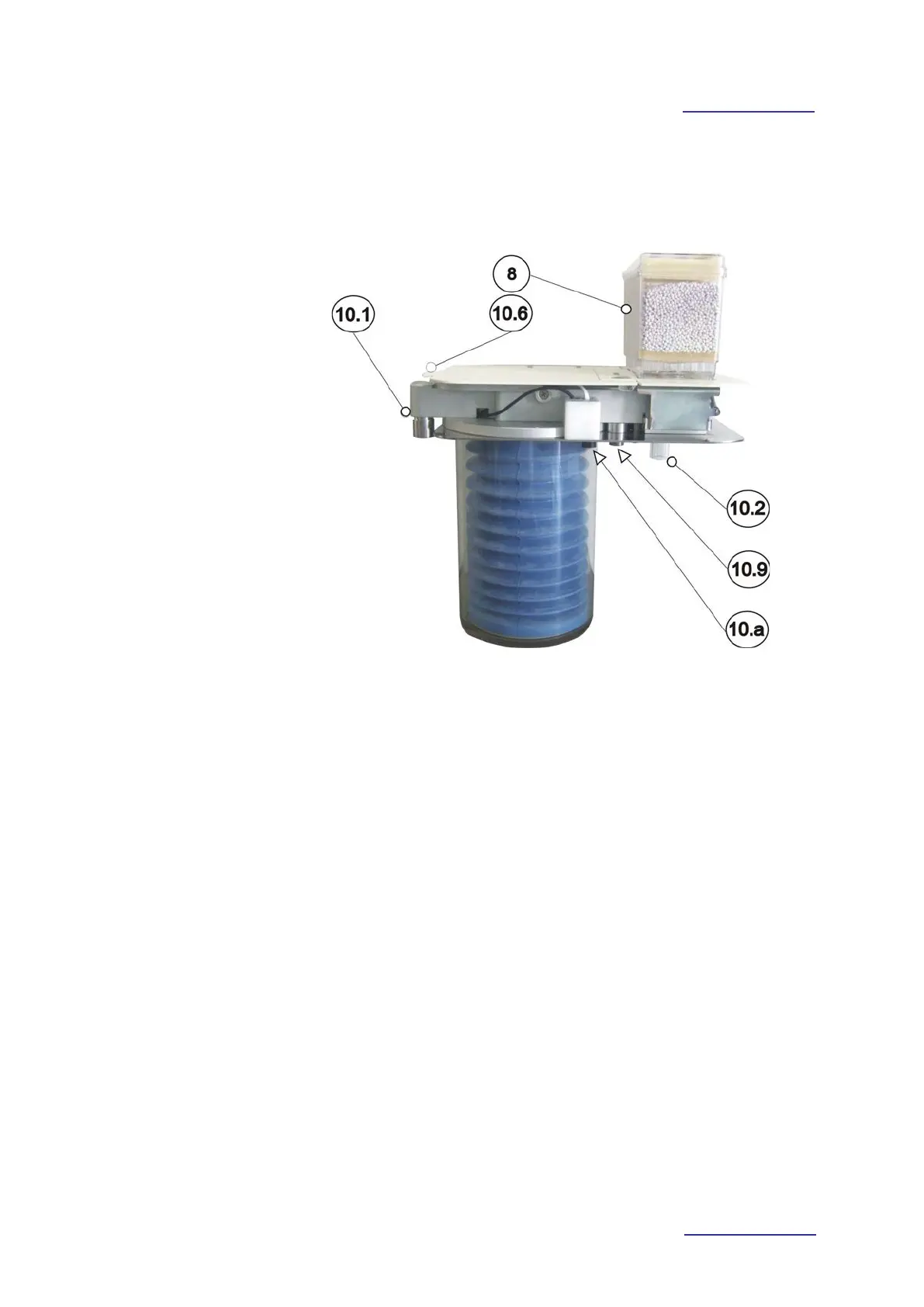

3.3.2 Electric connexion view
8
CO
2
absorber canister with lock lever
10.1
Connector for supplied manual ventilation kit
10.2
Connector for gas scavenging circuit
10.6 Valves group cover to gain access to the accessories; opening side
10.9 Automatic gas connections
10.a
Support for connection:
• oxygen sensor RJ connector
